Meriam Process Technologies

MFC5150 / MFC5150X HART Communicator

HART communicator that enables communication to take place with any registered or unregistered HART device and features a 1 GHz processor

Starting At
$7,155.00 $6,439.50 CAD
Normally ships in 1-2 Weeks

Configure   Request Quote

Can We Help You?

CALL US   EMAIL US   CHAT LIVE

Our product experts are here to help you find the right solution for your application!

The MFC5150 HART® Communicator is the latest addition to Meriam’s product line of hand-held calibrators and field communicators. Available in ATEX (intrinsically safe) and Non-ATEX models, the MFC5150 directly reads Device Descriptions without any translations or subscriptions, enabling communication to take place with any registered or unregistered HART® device. This ensures your HART® transmitter will connect, regardless of brand or model.

The MFC5150 is built on the SDC-625 infrastructure and runs Windows CE. With a 1 GHz processor and an 4 GB micro SD card, this HART® communicator is ideal for all of your data storage needs. The 4.3 in touchscreen provides excellent anti-glare viewing, allowing for comfortable mobile use in darkness or in bright sunlight. All functions are easily navigated via the full QWERTY keyboard and intuitive icons similar to that of a smart phone. The handheld HART device also features hyperlink menu paths, teachable device specific shortcuts, instant on, multiple languages, help context, video’s and TAB access to panes just like on a computer.

Each unit includes a docking station with universal power adapters, HART® lead kit, 250 Ω resistor, rechargeable battery pack, USB cable and SD card, soft carrying case, hand strap, and quick start guide.







• ATEX (intrinsically safe) and Non-ATEX models available
• Extra large battery enables a minimum 10 hrs of continuous use, minumum 30 days continuous use while off, and one year in storage (with battery removed)
• Free upgrades/downloads for life of the product – no subscriptions required
• Preloaded with over 1400 devices to work with every HART® transmitter in your plant
• Large 4.3 in touchscreen does not require a stylus
• Preloaded with 12 languages
• On-Demand Help Menus and teachable device-specific short cuts
• Vibration and shock resistant for long life and long-term stability

Display 24 bit TFT colour, 480 x 272 pixels, transmissive display with anti-glare, and a white LED backlight
Keyboard Molded keyboard design with tactile feedback, has 52 buttons including a QWERTY keyboard
Battery Type Rechargeable lithium-ion battery
Battery Life On 100% backlight: 10 hrs (minimum)
Off: 30 days (minimum)
Storage (battery removed): 1 yr (minimum)
Battery Charger AC wall adapter with tri-colour LED indicator
Operating Conditions -10C - 50C (14F - 122F), 0% - 95% RH, Non-condensing
Storage Conditions (With Battery) -20C - 55C (-4F - 131F), 0% - 95% RH, Non-condensing
Storage Conditions (Without Battery) -20C - 60C (-4F - 150F), 0% - 95% RH, Non-condensing
Charging Conditions* 10C - 40C (50F - 104F), 0% - 95% RH, Non-condensing
Enclosure Rating (Body) IP51
Communication Connection Two (2) banana plugs, spaced 3/4 in apart
Storage 4 GB microSD card (minimum)
Operating System Microsoft Windows CE
Field Communication HART Communication Host
Supported HART Communication Revisions HART 5, 6, 7
Shock Conditions Tested to survive a 1 m (39.4 in) drop onto concrete
Included Accessories Carrying case, communication leads (1 m molded banana plug test leads), wrist strap, 2 m USB cable (Type A to USB Type B), CD-ROM
*Charge only in non-hazardous areas

Item
Description
Availability
Price

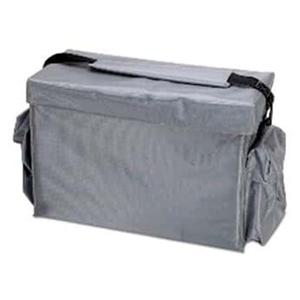

Z9P790 Soft Carrying Case
Soft carrying case for the MFC5150
Normally ships in 1-2 Weeks
$141.75 CAD

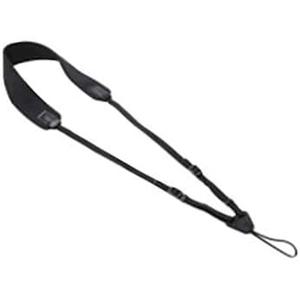

Z9P791 Hand Strap
Hand strap for the MFC5150
Normally ships in 1-2 Weeks
$56.70 CAD

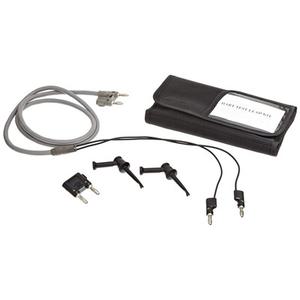

ZA900529-00014 HART Lead Kit
Lead kit for the MFT4000, MFT4010, MFC5150, and MFC5150X
Normally ships in 1-2 Weeks
$256.50 CAD
ZA36821 250 Ω Shunt Resistor
Standard size 250 Ω shunt resistor
Normally ships in 1-2 Weeks
$67.50 CAD
Z9P780 SD Card
8 GB micro SD memory card for the MFC5150 and MFC5150X
Normally ships in 1-2 Weeks
$236.25 CAD

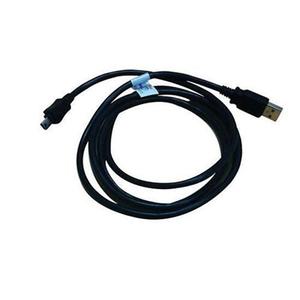

Z9P802-1 USB Cable
USB cable, communication from docking station to PC
Normally ships in 1-2 Weeks
$47.25 CAD

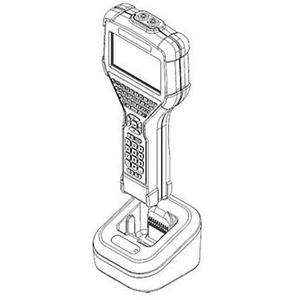

Z9A879 Docking Station and Power Adapters
Docking station and power adapters, universal plug kit (100 VAC to 240 VAC, 50 - 60 Hz)
Normally ships in 1-2 Weeks
$708.75 CAD

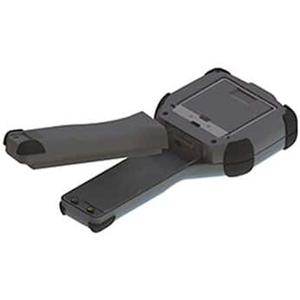

Z9A820-3 Battery Pack
Battery pack, rechargeable 9600 mAh Lithium-ion
Normally ships in 1-2 Weeks
$776.25 CAD
