` MFT4000 Multifunction Modular Calibrator/HART Communicator - Alpha Controls & Instrumentation Inc.

Meriam Process Technologies

MFT4000 Multifunction Modular Calibrator/HART Communicat...

Pressure calibration work with selected NIST traceable sensor modules & integral voltage/current meter, optional HART communications

Starting At
$2,667.00 CAD
Normally ships in 3-4 Weeks

Configure   Request Quote

Can We Help You?


Our product experts are here to help you find the right solution for your application!

The MFT 4000 Digital Calibrator is a base unit for pressure calibration work with selected NIST traceable sensor modules & integral voltage/current meter. The MFT 4010 Digital Calibrator with HART® is a base unit for modules and full device specific HART® communications. Quick Cal displays HART® PV and AO along with MFT’s NIST traceable measurements. User can identify needed trim(s) and access the trim function(s) from same display. Smart Trim allows selection of analog or digital trims without navigating through menu trees. Documenting included. Documenting memory stores up to 200 HART® configuration files and over 100 calibration results (as-found & as-left data [up to 21 points each], time/date info, tag). Communicate with PC via DB-9 connector.

Available modules include differential, gauge, vacuum and absolute pressure as well as temperature calibration, and voltage/current calibration. A voltage and current meter is integral to the base unit. All HART® field devices can be configured, polled, and trimmed using HART® communications. Device Specific commands for supported devices are included with the MFT.

Each unit includes: CE Mark, Test Lead Kit, HART Leads (Model 4010), Batteries, Universal Power Adapter, RS-232 Serial Cable and Users Manual.


• HART® menu Home key
• 13-line, 128 x 128 graphic, backlit display
• 60 hours battery life (w/o backlight)
• Accommodates three modules at any time
• Quick start up and connect
• Review / Edit on the fly
• Document and store 200 configurations

Base Unit 9.00L x 4.70W x 3.58D ABS plastic case with
shock absorbing boot, 28 oz, three bays for
measurement modules
Keypad Overlay kepad with 10 dome contact style
buttons and 4 soft keys
Alpha entry based on LCD alpha matrix;
numeric entry with buttons
Display 128 x 128 pixel graphic display, 2.1 x 2.1
viewable area, 5-digit resolution
Power 6 AA alkaline or NiMH batteries, optional
100 240 Vac power adapter
Connections Standard banana jacks (3⁄4 center) for 50
mA/Volts DC and for HART
Certifications CE Approval.
Intrinsically Safe, Class I, Div I areas per CSA
22.2 & UL 913 by MET Laboratories
NIST Traceable Accuracy Current / Voltage: 0.025% of F.S. 0.001% of
Span per F (ref. temp. 70 F). (see Modules
datasheet for accuracy)
Modules 2.3L x 1.3W x 2.6D, 8.3 ozs or less. Positive
lock with spring latch. Depress latch to release.
Electrical connections are PC board contacts to
spring loaded receiv-ers on base unit. Blank
inserts protect any empty bay(s).
(see Modules datasheet)
Pressure sensor modules for use with MFT4000 and MFT 4010 calibrators, available in several types and ranges
Normally ships in 1-2 Weeks
Starting At
$1,771.00 CAD

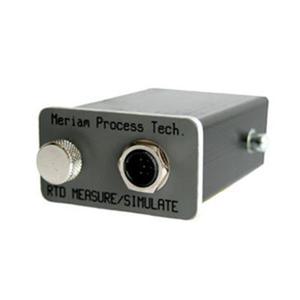

Measures or simulates the resistance of RTD sensors for the Meriam MFT4000 multifunction calibrator
Normally ships in 1-2 Weeks
Starting At
$1,771.00 CAD

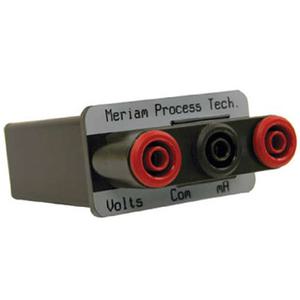

Voltage and current measurement and simulation module for use with the Meriam MFT4000 Series multifunction calibrator
Normally ships in 1-2 Weeks
Starting At
$1,687.00 CAD
Low-pressure connector kit for the M1 series of manometer calibrators
Normally ships in 1-2 Weeks
$259.00 CAD
Lead kit for the MFT4000, MFT4010, MFC5150, and MFC5150X
Normally ships in 1-2 Weeks
$277.00 CAD
Standard size 250 Ω shunt resistor
Normally ships in 1-2 Weeks
$77.00 CAD
