6600-80 MGS-550 Refrigerant Gas Detector

Utilizes any combination of four sensor technologies for unparalleled detection capability

Starting at

$1,260.00CAD

Have questions? We're here to help!

Call

Configure

Used in

Also found in

Bacharach’s advanced MGS-550 gas detector can utilize any combination of sensor technologies, including electrochemical, semiconductor (MOS), catalytic bead or infrared, in a single platform for unparalleled detection capability. The MGS-550 can easily be connected to any central control system using the current and volt analog output or the Modbus RTU interface. With three user assignable relays, it can also function as a stand-alone unit without the need to wire alarm devices back to a central system.

The straightforward menu structure is identical throughout the platform reducing the amount of training required for installing and maintaining this product family. At any point in time, the instrument can be upgraded from a one sensor to a two sensor system by simply registering another sensor. The MGS-550 is furnished with two analog outputs which can be assigned as redundant for one or for transmit the signal of two sensors.

• IP66-rated enclosure protects from dust and water ingress

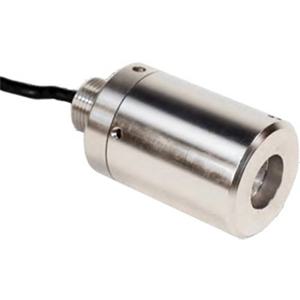

• Two-sensor capability allows for unparalleled flexibility and enables detection of multiple target gases in a variety of ranges or locations (local and remote sensors available)

• 5-digit LED display shows real-time concentration readings and makes configuration and self-diagnostics intuitive

• Configurable analog output (4-20mA, 0-5V, 0-10V, 1-5V or 2-10V) and Modbus communications for integration with Bacharach’s MGS-408 controller or third-party BMS / BAS control systems

• Three user-configurable relays (fault, low and high alarm) may be used to activate external beacons / sounders, ventilation or other countermeasures

• Integrated audible / visual alarms for refrigeration safety compliance – no additional hardware

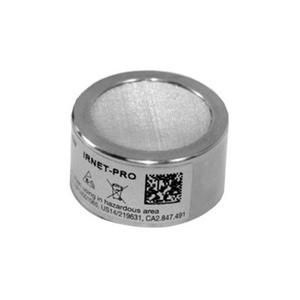

Type	Gas detector using Semiconductor, Electrochemical, Infrared or Catalytic Bead sensor. For one or two sensor configuration
Gases	Toxic gases: Ammonia, Carbon Dioxide, Carbon Monoxide, Ethylene, Nitrogen Dioxide and Ozone Combustible gases: Methane, Propane, Butane and LPG Refrigerants: Ammonia, Carbon Dioxide, Hydrocarbons, and HFCs, HCFCs, CFCs
Measuring Range	O2: 30 Vol% CO: 1,000 ppm NH3,: 100 / 1,000 / 5,000 / 10,000 ppm / 100 %LEL CO2: 5,000 / 10,000 / 20,000 / 30,000 / 40,000 / 50,000 ppm Refrigerants: 1,000 / 10,000 ppm Combustible Gases: 100 %LEL C2H4: 2,000 ppm NO2*: 20 ppm
Display	5-digit, 7-segment red LED and green status LEDs
Output	Analog: 4 to 20 mA, 0 to 5 V, 0 to 10 V, 1 to 5 V, 2 to 10 V Digital: Modbus RTU via RS 485
Power Supply	19.5 to 28.5 VDC or 24 VAC ± 20%; 3- or 4-wire
Relay	3 relays, SPDT, user assignable Rating: 1 A @ 24 VDC, 0.25 A @ 240 VAC, resistive load Alarm delay: 0 to 15 minutes; user-programmable
Ambient Conditions	Temperature: - 40 to +120 °F (40 to +50 °C) Humidity: 5 to 90 %RH, non condensing Altitude: 0 to 10,000 ft (3,050 m)
Enclosure options	General Purpose: IP66 Rated ABS with four M20 x 1.5 ports Rugged, Explosion-Proof Certified****: Powder coated, copper free aluminum, with four M20 x 1.5 ports
Size (w x h x d)	General Purpose: 8.3” x 8.9” x 3.4” (210 x 225 x 85 mm) Rugged, Explosion-Proof Certified****: 4.9” x 7.5” x 3.5” (125 x 190 x 90 mm)
Weight	General Purpose: 2 lbs (1 kg) Explosion-proof: 3.5 lbs (1.6 kg)
Approvals	CE, UL, CSA, IEC, EN 61010-1
*Ammonia available as low temperature version -40°F / -40°C (not for 5,000 ppm electrochemical sensor)
**Not IP66 rated; not available for XP enclosure
***Not available for XP enclosure
**** MGS-550 is not approved as an explosion-proof product and should NOT be installed in hazardous locations
Measuring Range:	Sensor Dependent (See Datasheet)
Accuracy:	SC - < -10%/+15% of Full-Scale; IR, Cat, EC - < ±5% of Full-Scale
Sensor Channels:	1 to 2
Sensitivity / Minimum Detection Limit:	Sensor Dependent (See Datasheet)
Resolution:	Sensor & Gas Concentration Dependent (See Datasheet)
Enclosure Rating:	IP66
User Interface:	5-digit, 7-segment red/green LED; configuration push buttons and magnetic switches
Power:	24 VDC +20% 8W
Analog Communications:	4 to 20 mA, 0 to 5 V, 0 to 10 V, 1 to 5 V, 2 to 10 V
Digital Communications:	Modbus RTU via RS 485
Operating Voltage:	24 VDC or 24 VAC
Relay Rating:	2 Alarm relays, 1 Fault relay SPDT
Wiring:	2 A @ 30 VDC, 0.5 A @ 125 VDC, 0.25 A @ 250 VAC
Alarm:	Integrated Audible / Visual Alarm
Ambient Temperature:	-40 to 122°F (-40 to +50°C)
Humidity:	5 to 90 %RH, non condensing
Altitude:	0 to 6,560 ft (2,000 m)
Status Indicator:	5-digit, 7-segment red/green LED
Buzzer Volume:	80 dB @ 10 cm
Product Dimensions (L×W×H):	8.3” × 8.9” × 3.4” (210 × 225 × 85 mm)
Product Weight:	2 lbs (1 kg)(1.6 kg)
Sensor Type:	Sensor Dependent (See Datasheet)
Approvals:	CE, UL, CSA, IEC, EN 61010-1
Warranty:	1 Year
