MSX Magnesense Differential Pressure Transmitter

Monitors Differential Pressure, Air Velocity and Volumetric Flow

Starting at

$205.65CAD

Have questions? We're here to help!

Call

Configure

Used in

MSX Magnesense Differential Pressure Transmitter 07294

MSX Magnesense Differential Pressure Transmitter 1fbd5

MSX Magnesense Differential Pressure Transmitter a79a6

MSX Magnesense Differential Pressure Transmitter c7ddf

MSX Magnesense Differential Pressure Transmitter d3f6c

The Series MSX Magnesense® Differential Pressure Transmitter combines the stability and versatility of the original Series MS2 Magnesense® II transmitter for use in building control applications. The MSX simplifies the ordering process to deliver the desired configuration, which reduces product setup time. Pressure ranges are available in Pa, mm w.c., and in w.c. All pressure ranges can be configured in unidirectional or bidirectional modes, providing a total of 32 ranges. The MSX transmitter can provide a linear pressure output or a linear velocity output with the square root extraction from the transmitter. Additional parameters have been included to expand the square root capability for calculating flow. Dual voltage and milliamp output signals can be used to provide both control and equipment output signal verification.

• Read LCD values easier with rotatable 180° display

• Quick and easy wiring via the optional toolless terminal block

• Add safety to variety of applications with UL94 V-0 and plenum ratings

Service:	Air and non-combustible, compatible gases.
Wetted Materials:	Consult factory.
Accuracy:	±1% FSO.
Stability:	±1% FSO/year.
Temperature Limits:	-4 to 158°F (-20 to 70°C).
Pressure Limits:	Ranges 0 and 1: 3.6 psi max operation, 6 psi burst; Ranges 2 and 3: 6 psi max operation, 6 psi burst.
Power Requirements:	10-36 VDC (2-wire), 17-36 VDC or isolated 21.6-33 VAC (3-wire).
Output Signals:	4-20 mA (2-wire); 0-10 V or 0-5 V selectable (3-wire).
Response Time:	Instantaneous (default) or 3 s (selectable).
Zero and Span Adjustments:	Digital push-button.
Loop Resistance:	Current output: 0-1250 Ω max; Voltage output: min. load resistance 1 k Ω.
Current Consumption:	21 mA max continuous.
Electrical Connections:	4-wire removable European style terminal block for 16 to 26 AWG.
Electrical Entry:	1/2" NPS thread.

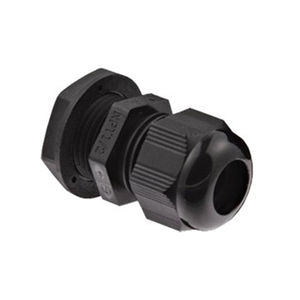

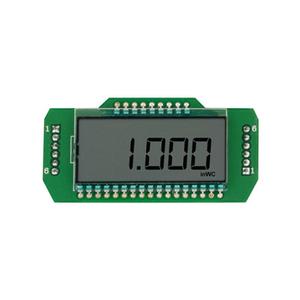

Display (optional):	4 digit LCD.
Process Connections:	1/8", 3/16", 1/4", 5 mm, and 6 mm ID flexible tubing.
Enclosure Rating:	NEMA 4X (IP66), UL 2043 (Plenum), UL94 V-0.
Mounting Orientation:	Pressure sensor measurement unaffected by orientation.
Weight:	8.0 oz (230 g).
Agency Approvals:	CE.
