Mark II Molded Plastic Manometers
Inclined and inclined-vertical types, and can be mounted on any vertical surface
Series Mark II Molded Manometers are of the inclined and inclined-vertical types. The curved inclined-vertical tube of the Model 25 gage provides higher ranges with more easily read increments at low readings. The Model 25 is excellent for general purpose work. The Model 40 inclined gage provides linear calibration and excellent resolution throughout its range. The Model 40 is ideally suited for air velocity and air filter gage applications. Both gage types are capable of pressure measurements above and below atmospheric as well as differential pressure measurements. Included with each Mark II manometer are two tubing connectors for 1/8" pipe or sheet metal ducts, two mounting screws, 1 ounce bottle of indicating fluid, red and green pointer flags and complete instructions.

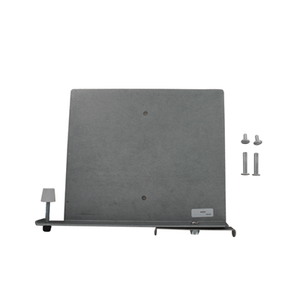

The Model 25 also includes 8' of flexible double column plastic tubing. Portable operation of the Model 25 is made possible by the use of the optional A-612 portable stand. A short piece of tubing can be slipped over the Model 25 pressure connections to contain the gage fluid in transit.
The Model 40 contains two 4-1/2' lengths of clear plastic tubing, a plastic swing-out stand and leveling screw for portable operation. It also features convenient rapid shutoff pressure connections and integral overpressure safety traps. See the Support Library tab for Safety Data Sheets.
• Broad ranging in easy to read calibrated increments
• Gages ideally suited for general measurements and specific air applications
• Compact, stationary or portable device, make it a simple to use tool for pressure measurement in OEM or user applications
| Accuracy | ±3% FS |
| Temperature Limits | Inclined/Vertical Models: 140°F (60°C); Inclined Models: 150°F (65°C) |
| Pressure Limits | Inclined/Vertical Models: 10 psi (70 kPa); Inclined Models: 15 psi (100 kPa) |
| Scale Length | Inclined Models: Approx. 8-1/4" (21 cm) |
| Weight | Inclined/Vertical Models: 1.04 lb (472 g); Inclined Models: 1.23 lb (558 g) |
| Inclined | |
| Accuracy | ±3% FS. |
| Temperature Limits | 150°F (65°C). |
| Pressure Limits | 15 psi (100 kPa). |
| Scale Length | Approx. 8-1/4" (21 cm). |
| Weight | 1.23 lb (558 g). |
| Agency Approvals | Meets the technical requirements of EU Directive 2011/65/EU (RoHS II). |
• Paint booths
• Air velocity measurement
• Air filter gage

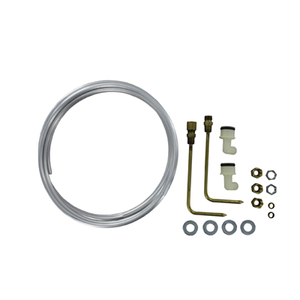

Item
Description
Availability
Price
4 in straight static pressure tip with flange
Normally ships in 1-2 Weeks
$17.00 CAD

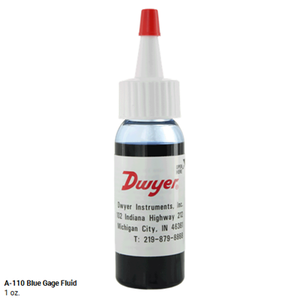

The standard fluid for use in inclined manometers, "D" type vertical manometers, and all Dwyer gages using red fluid
Normally ships in 1-2 Weeks
Starting At
$22.00 CAD
$22.00 CAD
For use with special instruments and Mark II Models 26 and 28
Normally ships in 1-2 Weeks
$405.00 CAD
_per_foot_07282_th.jpg)

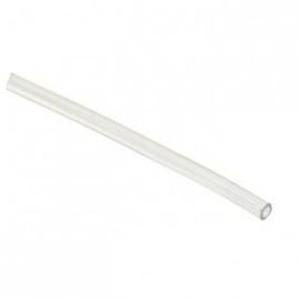

Clear flexible vinyl tubing
Normally ships in 1-2 Weeks
$1.00 CAD
_per_foot_07285_th.jpg)

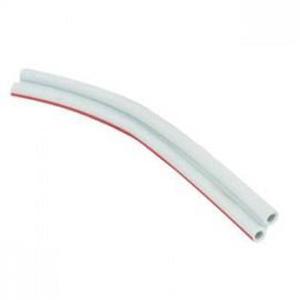

Flexible double column tubing is used with Mark II Manometers and the Wind Speed Indicator
Normally ships in 2-3 Weeks
$8.00 CAD

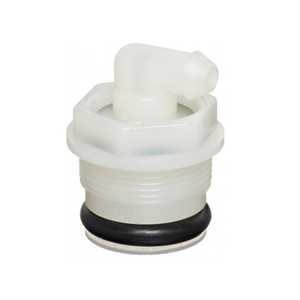

Shutoff type gage connector for 3/16 in rubber tubing
