Setra Systems

MicroCal™ Advanced Modular Pressure Calibrator

Stand-alone calibration standard for differential and gauge pressure sensors found in critical environments

Starting At
$11,825.00 CAD
Normally ships in 1-2 Weeks

Configure   Request Quote

Can We Help You?

CALL US   EMAIL US   CHAT LIVE

Our product experts are here to help you find the right solution for your application!

The MicroCal automated pressure calibrator is used as a stand-alone calibration standard for differential and gauge pressure sensors found in critical environments.  Setra partnered with NASA to develop the industry's quickest and most stable pressure control for low range applications.  The MicroCal combines precise pressure control with high accuracy modular pressure reference providing the quickest and most accurate calibration solution on the market today.  The MicroCal is an easy-to-use solution that significantly improves labor productivity and efficiency when compared to the leading competitors, providing immediate ROI.

Modular Design to Cover Many Applications - The MicroCal utilizes modular pressure reference, enabling the user to select the most accurate reference for calibrating the unit under test.  Competitive calibrators often use fixed higher range reference sensors that do not allow for proper calibration ratios at the low end of the pressure range.  The modular rechargeable battery offers further flexibility to extent available calibration time beyond the standard 8 hours.

NASA Patented Technology - The MicroCal is designed to perform calibration checks on installed sensors, pressure switches and gauges that monitor critical applications.  The on-board pressure generation system allows for stable & accurate pressure to be applied to the unit under test during calibration, while providing isolation from process background disturbances.  The NASA patented technology achieves 0.0002" W.C/step resolution; when combined with the high accuracy the MCPM pressure module, the MicroCal is the ultimate low-pressure calibration device.

Reduce Calibration Time - When the fast and stable pressure control is combined with high accuracy reference modules and easy to use interface, the MicroCal can reduce overall calibration time up to 80%.  This time savings provides almost immediate ROI based on the number of calibrations performed annually.

7" Touchscreen with Intuitive User Interface - The easy-to-use 7" touchscreen interface, combined with an intuitive menu structure, provides the user with all the features needed for verification and calibration of differential pressure instrumentation.  The MicroCal offers the Expert System feature, which detects and automatically calibrated Setra's Model 269 digital pressure transducer.



**Setra MCPM Reference Modules are required for the operation of the Pressure Calibrator. Options can be found in the Accessories Tab.

• Modular Pressure References
• Up to 8 Hours of Battery Life
• Easy Step-by-Step User Interface Process
• Built-In Leak Test Function
• Provides Accuracy & Stability Plots
• Pressure Generation & Monitoring Modes to Verify System Performance
• True Low Range Dual Reference Pressure Sensors with NIST Traceability

• Analog Pressure Transducers
• Pressure Switches
• Analog Dial Gauges

Item
Description
Availability
Price

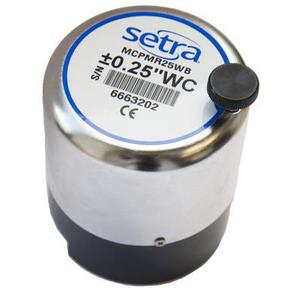

MCPM Reference Modules
High accuracy modular pressure references for the Setra MicroCal
Normally ships in 1-2 Weeks
Starting At
$2,190.47 CAD
Configure
Spare Battery
Spare Battery for the Setra MicroCal pressure calibrator
Normally ships in 1-2 Weeks
$474.58 CAD
Desktop Battery Charger
Desktop battery charger for the Setra MicroCal pressure calibrator
Normally ships in 1-2 Weeks
$401.58 CAD
Electrical Interface Kit
Electrical interface kit for Setra MicroCal pressure calibrator
Normally ships in 1-2 Weeks
$230.77 CAD
Electro-Pneumatic Harness
Two and four wire electro-pneumatic harness for use with the Setra MicroCal pressure calibrator
Normally ships in 1-2 Weeks
Starting At
$335.81 CAD
Configure
Harness Cable End
Harness cable end, 2 and 4 wire for use with Setra MicroCal electro-pneumatic harness
Normally ships in 1-2 Weeks
Starting At
$129.25 CAD
Configure
