PD6060 ProVu Dual Analog Input Process Digital Panel Met...

1/8 DIN, dual analog input, process current (4-20 mA) or process voltage (0-5V, 1-5V, etc.), dual line, 6-digit display

Starting At
$613.00 CAD
Normally ships in 1-2 Weeks

Configure   Request Quote

Can We Help You?

CALL US   EMAIL US   CHAT LIVE

Our product experts are here to help you find the right solution for your application!

The PD6060 is a member of the ProVu series of 1/8 DIN digital panel meters that accepts two inputs of either a process current (4-20 mA) or process voltage (0-5V, 1-5V, etc.) signal. It displays these signals on a dual line, 6-digit display that is available with an optional Sunbright® sunlight readable LEDs. The meter can be customized such that these two inputs are displayed in a variety of ways, including both at the same time with tags or the result of math functions performed on one or both of the inputs. Like all ProVu meters, the PD6060 includes UL / C-UL listing and CE marking, a NEMA 4X front, and AC or DC power options. The PD6060 can also be equipped with up to four internal relays, a 4-20 mA analog output, and Modbus® serial communications. The PD6060 includes a 24 V DC power supply to drive the transmitters. ProVu meters can be programmed via the front panel pushbuttons or free MeterView® Pro software.




• Dual-Input Process Meter with Math Functions
• Addition, Difference, Average, Multiplication, Division, Min, Max, Weighted Average, Ratio, Concentration, & More
• 0-20 mA, 4-20 mA, 0-5 V, 1-5 V, and ±10 V Inputs
• Large Dual-Line 6-Digit Display, 0.60" & 0.46"
• Optional SunBright Display Models for Outdoor Applications
• NEMA 4X, IP65 Front
• Universal 85-265 VAC, or 12-24 VDC Input Power Models
• Isolated 24 VDC @ 200 mA Transmitter Power Supply
• Programmable Display & Function Keys
• 32-Point, Square Root, or Exponential Linearization
• Multi-Pump Alternation Control
• 2 or 4 Relays + Isolated 4-20 mA Output Options
• External 4-Relay & Digital I/O Expansion Modules
• USB, RS-232, & RS-485 Serial Communication Options
• Modbus RTU Communication Protocol Standard
• On-Board Digital Input
• Onboard USB and MeterView® Pro Programming Software

Display Upper display: 0.60" (15 mm) high. Lower display: 0.46" (12 mm) high. Both are 6 digits (-99999 to 999999), red LEDs
Display Intensity Eight user selectable intensity levels
Display Update Rate 5/second (200 ms)
Over Range Display flashes 999999
Under Range Display flashes -99999
Display Assignment The Upper and Lower displays may be assigned to process values for Channels A (Ch-A), B (Ch-B), or C (Ch-C), toggle between (Ch-A & Ch-B, Ch-A & Ch-C, Ch-B & Ch-C, and Ch-A, Ch-B, & Ch-C), toggle between Channel & units, show channel gross value (no tare) or toggle net (tare) and gross values, show relay set points, max & min values, or Modbus input. The second display may also be set to show engineering units or be off, with no display.
Front Panel NEMA 4X, IP65
Programming Methods Four front panel buttons, digital inputs, PC and MeterView Pro software, Modbus registers
F4 Digital Input Contacts 3.3 VDC on contact. Connect normally open contacts across F4 to COM.
F4 Digital Input Logic Levels Logic High: 3 to 5 VDC
Noise filter Programmable from 2 to 199 (0 will disable filter)
Filter Bypass Programmable from 0.1 to 99.9% of calibrated span
Recalibration All ranges are calibrated at the factory. Recalibration is recommended at least every 12 months.
Max/Min Display Max (Peak) / min (Valley) readings reached by the process are stored until reset by the user or until power to the meter is cycled.
Password Three programmable passwords restrict modification of programmed settings.
Non-Volatile Memory All programmed settings are stored in non-volatile memory for a minimum of ten years if power is lost.
Power Options 85-265 VAC 50/60 Hz, 90-265 VDC, 20 W max, or optional model with 12-24 VDC ±10%, 15 W max.
Fuse Required external fuse: UL Recognized, 5 A max, slow blow; up to 6 meters may share one 5 A fuse.
Isolated Transmitter Power Supply Terminals P+ & P-: 24 VDC ± 10%. Internally selectable jumper for 24, 10, or 5 VDC supply.
85-265 VAC models rated @ 200 mA max, 12-24 VDC powered models rated @ 100 mA max, @ 50 mA max for 5 or 10 VDC supply.
Normal Mode Rejection Greater than 60 dB at 50/60 Hz
Isolation 4 kV input/output-to-power line. 500 V input-to-output or output-to-P+ supply.
Overvoltage Category Installation Overvoltage Category II: Local level with smaller transient overvoltages than Installation Overvoltage Category III.
Environmental Operating temperature range: -40 to 65°C
Storage temperature range -40 to 85°C
Relative humidity 0 to 90% non-condensing
Connections Removable screw terminal blocks accept 12 to 22 AWG wire, RJ45 for external relays, digital I/O, and serial communication adapters.
Enclosure 1/8 DIN, high impact plastic, UL 94V-0, color: black
Mounting 1/8 DIN panel cutout required: 3.622" x 1.772"
(92 mm x 45 mm). Two panel mounting bracket assemblies are provided.
Tightening Torque Screw terminal connectors: 5 lb-in (0.56 Nm)
Overall Dimensions (W x H x D) 4.68" x 2.45" x 5.64" (119 mm x 62 mm x 143 mm)
Weight 9.5 oz (269 g)
UL File Number UL & c-UL Listed. E160849; 508 Industrial Control Equipment.
USB Connection Compatibility: USB 2.0 Standard, Compliant
Connector Type: Micro-B receptacle
Cable: USB A Male to Micro-B Cable
Driver: Windows 98/SE, ME, 2000, Server 2003/2008, XP 32/64-Bit, Vista 32/64-Bit, Windows 7 32/64-Bit, Windows 10 32/64-Bit
Power: USB Port
Warranty 3 years parts & labor

Item
Description
Availability
Price
Accessories
PDX6901 Snubber Flexible Leads
Snubber 0.01μF/470Ω flexible leads
Normally ships in 1-2 Weeks
$14.00 CAD
Adapter/USB

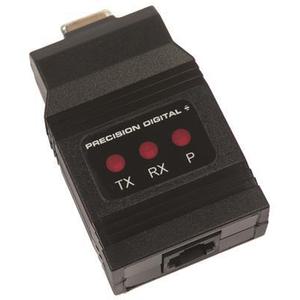

PDA1232 ProVu RS-232 Serial Adapter
Converts the serial output of the ProVu meter to an unbalanced, full-duplex RS-232 signal
Normally ships in 1-2 Weeks
$114.80 CAD

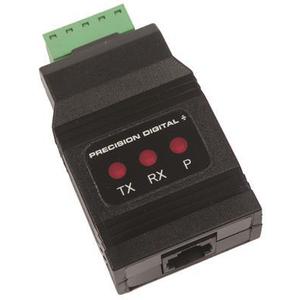

PDA1485 ProVu RS-485 Serial Adapter
Converts the serial output of the ProVu meter to an unbalanced, full-duplex RS-232 signal
Normally ships in 1-2 Weeks
$114.80 CAD
Converters
PDA7485 Converter
RS-232 to RS-422/485 converter
Normally ships in 1-2 Weeks
$250.60 CAD
PDA8232-N Converter
USB to RS-232 Converter
Normally ships in 1-2 Weeks
$71.40 CAD
PDA8485 Converter
USB to RS-485 Converter
Normally ships in 1-2 Weeks
Starting At
$229.60 CAD
Configure
Expanision Modules

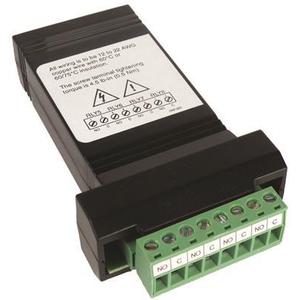

PDA1004 Expansion Module
ProVu 4 relays expansion module
Normally ships in 1-2 Weeks
$116.20 CAD

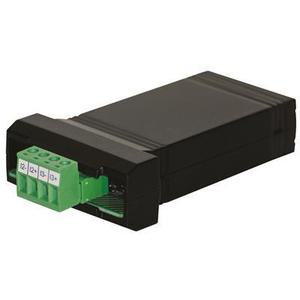

PDA1011 ProVu Expansion Module
Adds an additional two (2) analog outputs to any dual-input ProVu meter or ProVu Modbus® scanner
Normally ships in 1-2 Weeks
$138.60 CAD

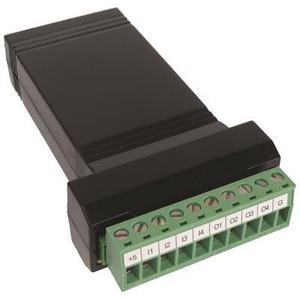

PDA1044 ProVu Digital I/O Expansion Module
Adds four digital inputs and four digital outputs to any ProVu meter
Normally ships in 1-2 Weeks
$50.40 CAD
Mounting Kits

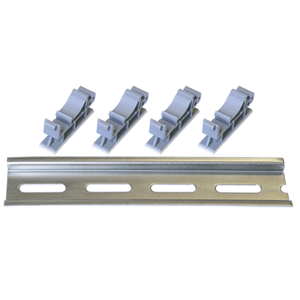

PDA1002 ProVu Mounting Kit
ProVu DIN rail mounting kit for two modules
Normally ships in 1-2 Weeks
$18.20 CAD
Option Cards
ProVU Option Cards
Option upgrade cards for the ProVu series
Normally ships in 1-2 Weeks
Starting At
$70.00 CAD
Configure
