PD6730X Vantageview NEMA 4X Modbus Scanner

Plastic, field-mounted, RS485 serial input Modbus® RTU scanner, displays up to 16 Modbus variables

Starting at

$1,137.00CAD

Have questions? We're here to help!

Call

Configure

Used in

PD6730 X Vantageview NEMA 4 X Modbus Scanner 00789 dm1746721329

The field-mount Vantageview Super Snoopers are serial input RS-485 Modbus® RTU scanners. These Modbus devices are ideal for applications in need of a rugged solution. The Vantageview decimal version has a two-line decimal display. The Vantageview feet & inches version’s top line displays level in feet and inches up to 399 ft, 11 and 15/16 inches. It includes a 20-segment tank level indicator.

Each can accept up to 16 Modbus process variables (PVs), from up to 16 devices. The scanners automatically cycle through the PVs, with the ability to manually cycle PVs or pause scanning.

Up to four math channels (CV1-CV4) may be used to perform math functions on any of the input variables. Math functions include sum, difference, weighted average, ratio and more. Nested math functions may be used in these math equations, allowing for complex math functions.

The display is programmable to show any input, math channel, units, or tags, on a variety of display combinations between the top and bottom displays.

Standard features include SafeTouch through-window buttons for operating the scanner without removing the cover, a backlight that makes the display mode visible in any lighting condition, 511 points of input data logging, and two open collector pulse or alarm outputs. A 4-20 mA output is available as an option.

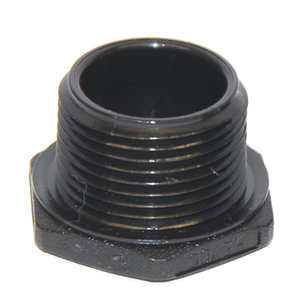

The enclosure has three threaded conduit holes, inte-grated pipe or wall mounting flanges, and allows for easy installation of tamper seals. Two conduit plugs are installed; additional plugs are available (part num-ber PDAPLUG75P).

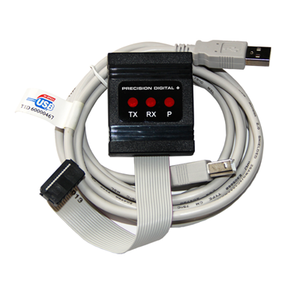

Free, PC-based, ScanView EX software that connects to the scanner via the PDA8068, PDA7485-I, or the PDA8485-I is available for programming and setup of the instrument.

The instrument can also be programmed using the four SafeTouch through-window buttons, without removing the cover, or with four internal push-buttons.

• Modbus Master, Slave, or Snooper Mode
• Scan up to 16 Modbus Process Variables
• 5-Digit Decimal or Feet & Inches Level Display
• On-Board Three-Wire RS-485 with Modbus
• Independent Scaling, Tag, and Unit for Each PV
• 7 Alphanumeric Character 0.4" (10.2 mm) Lower Display for Process Variables, Custom Units, and Tags
• Injection-Molded, IP65, NEMA 4X Enclosure
• SafeTouch® Through-Window Button Programming
• Isolated 4-20 mA Output Option
• Pulse Input for Rate, Total, and Grand Total
• 13-Digit Totalizer with Total Overflow Feature
• Password Protection
• Backlight Standard on All Models
• Automatic Rate, Total, and Grand Total Unit Conversions
• Operates from -40 to 75°C
• Data Logging Functions and Modbus Accessible Data
• Two Isolated Pulse Outputs Standard, Up to 5 kHz

Decimal Display	Top Display: Five Digits (0 to 99999), 0.7" (17.8 mm) high, 7-segment, automatic lead zero blanking. Bottom Display: Seven Characters, 0.4" (10.2 mm) high, 14-segment, automatic lead zero blanking. Symbols: Total, grand total, high alarm, low alarm, SafeTouch button sleep mode/disable, password lock.
Feet & Inches Display	Top Display: 0.60" (15.2 mm) high, 0 to 399FT, 11 and 15/16 IN, 7-segment, programmable 1/16 or 1/8 fraction display. Bottom Display: Seven Characters, 0.4" (10.2 mm) high, 14-segment, 7-digits. Tank Level Indicator: 20-segments, F (Full) and E (Empty). Alarm Indication: High and low alarm Backlight: White
Display Assignment	Top and Bottom Display*: Process Variables (PV); Alternating PV and Units, Tag and PV, or Tag, PV, and Units; Pulse Input Rate, Total, or Grand Total with Alternating Tag. Bottom Display: All Top Display Options or Off Units and tag independent for each PV, pulse input rate, total, and grand total.
Backlight	White LED, 10 sec auto-off when battery powered. Backlight deactivated below temperature ≈ -20°C
Alarm Indication	Flashing display plus HI/LO (alarm) or SET indicators.
Scan and Update Rate	Ambient > -20°C: Modbus PV scan rate programmable from 2 to 99 seconds per PV. Tag and units programmable for 1 to 5 second alternation. Pulse input variables update 1/second. Rate update is dependent on gate settings. Ambient < -20°C: All Modbus scan, alternating units and tags, and pulse input variables update/10 seconds minimum.
Under Range	Upper Display: Decimal display flashes -9999 Level display flashes to 399FT, 11 and 15/16 IN Lower Display: Flashes -999999
Over Range	Upper Display: Decimal display flashes 99999 Level display flashes to 399FT, 11 and 15/16 IN Lower Display: Flashes 9999999
Programming Method	Four SafeTouch through-window buttons when cover is installed. Four internal push buttons when cover is removed.
Recalibration	Calibrated at the factory to read frequency in Hz. No recalibration required.
Password Menu Options	Three programmable password selections can be used for the following: restrict modification of settings, prevent resetting the total or grand total without the password, or permanently lock out the ability to change or reset the grand total or any grand total related settings(making a non-resettable grand total). Pass: Restricts modifications of programmed settings to require re-entering the password to make changes. Pass T: Restricts the reset of total to require re-entering the password. Disables the manual mode reset contact. Pass GT: Restricts the reset of grand total to require re-entering the password. May enable a non-resettable grand total and permanent lockout of grand total-related settings with a specific password.
Input Power	9-30 VDC, 38 mA max. 2.2 W
Data Logging	Up to 512 records, recorded 4/day at specific times or at defined time intervals. Record contains first eight enabled Modbus PVs; C1-4 if enabled; date; time; pulse rate, total, and grand total with units; and log number.
Isolation (All Models)	500 V opto-isolated pulse input-to-power/OC output with isolated input enabled, 500 V input/power-to-RS-485 serial communications. AXA Models: 500 V input/power-to-analog output.
Environmental	Operating temperature range: -40 to 75°C; Storage temperature range: -40 to 75°C; Backlight deactivated below temperatures ≈ -20°C; Relative humidity: 0 to 90% non-condensing
Non-Volatile Memory	All programmed settings and total reading are stored in non-volatile memory for a minimum of ten years if power is lost.
Connections	Screw terminals accept 12 to 22 AWG wire
Enclosure	NEMA 4X, IP65 plastic field enclosure. Color: grey. Material: Polycarbonate with UV Stabilizer. Three ¾" NPT threaded conduit openings. Two ¾" NPT plastic conduit plugs, with 1.29" wrenching flats and a screwdriver slot, are included.

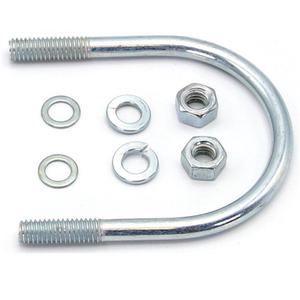

Mounting	May be mounted directly to conduit. Two slotted flanges for wall mounting or NPS 1½" to 2½" or DN 40 to 65 mm pipe mounting.
Display Orientation	Display may be mounted at 90° increments up to 270° from default orientation.
Overall Dimensions (W x H x D)	5.67" x 5.25" x 4.18" (144 mm x 133 mm x 106 mm)
Weight	1.65 lbs (26.4 oz, .75 kg)
Warranty	3 years parts and labor
