Precision Digital

PD685 Loop-Powered NEMA 4X Digital Meter

Low cost, easy to install and program, can be seen from considerable distance, -40 to 85C operating temperature

Starting At
$521.00 CAD
Normally ships in 1-2 Weeks

Configure   Request Quote

Can We Help You?


Our product experts are here to help you find the right solution for your application!

The PD685 is a low-cost, NEMA 4X, loop-powered indicator that is easy to install and program and can be seen from considerable distance. The fact that this meter is loop-powered means that there is no need to run additional, costly power lines into a hazardous area; the meter gets all of the power it needs from the 4-20 mA loop and the PD685's 1 V drop results in a minimal burden on the loop. The meter features a wide -40 to 85°C operating temperature range and is provided with a ½" conduit hole in a location of your choice for easy installation. Calibration is a quick two-step process involving the adjustment of only two non-interacting potentiometers.

• 4-20 mA Input
• 1 V Drop
• 3½ Digit LCD 1" (25.4 mm) High
• Operating Temperature Range: -40 to 85°C
• ½ Conduit Hole Provided

Input 4-20 mA @ 30 VDC maximum
Display 1.0" (25.4 mm) LCD, 3 digits; 1999
Accuracy 0.1% FS 1 count
Decimal Point User selectable
Calibration Two-step; non-interacting zero and span
Calibration Range 4 mA input: -1000 to +1000
20 mA input: between 20 and 2000 counts > 4 mA display
Display Update Rate 2.5/second
Maximum Input Current 30 mA
Maximum Voltage Drop 1 V @ 20 mA
Operating Temperature -40 to 85C
Storage Temperature -40 to 85C
Relative Humidity 0 to 90% non-condensing
Enclosure Impact-resistant plastic; body: gray ABS; cover: clear polycarbonate; NEMA 4X, IP66/67
Connections Removable screw terminals accept 12 to 26 AWG
Conduit Hole One " conduit hole provided; refer to Ordering Information to specify conduit hole location; request models with rear conduit hole (-X) for panel mounting applications.
Weight 12 oz (340 g)
Warranty 2 years parts & labor

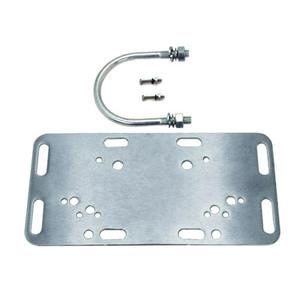

PDA6845 Pipe Mounting Kit
Pipe mounting kit with 2 holes
Normally ships in 1-2 Weeks
Starting At
$76.50 CAD

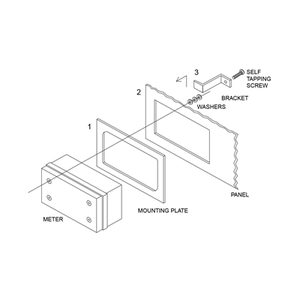

PDA6854 Panel Mounting Kit
Panel mounting kit for the PD685
Normally ships in 1-2 Weeks
$76.50 CAD
