PXF4 Temperature Controller
Self-tuning 1/16 DIN (48 x 48mm) compact temperature and process controller with 50ms sampling speed
The Fuji Electric PXF4 temperature controller was developed as a successor to the PXR4. It is equipped with multiple input and output options as well as sophisticated control functions making is suitable for a wide range of applications. You can use any input among RTD, thermocouples, voltage, current, and mV. Switching the input is an easy parameter change.
The PXF series features highly accurate input indication:
• RTD is ±0.2% of indication value ±1 digit or ±0.8°C ± 1 digit, whichever is larger
• Thermocouple is the larger of ±1°C ±1 digit or ±0.3% of indicated value ±1 digit
• Voltage and current are ±0.3% FS ± 1 digit
•Universal input
-Thermocouple, RTD, voltage, current, mV
•Improved input indication accuracy, up to ±0.2%
•0.1 to 99 second control cycle
•On/Off control & PID controls with auto tuning
-PID, 2-degrees-of-freedom PID, & fuzzy
-Open-loop supported PID2 control
•Ramp soak function (simple program control)
-64 steps x 1 pattern
-32 steps x 2 patterns
-16 steps x 4 patterns
-8 steps x 8 patterns
•Directly connect to a PC with optional USB cable
-This will bus-power the unit
• Brewing
• Cryogenics
Accessories
Fuji ElectricPXF Terminal Cover
Terminal cover for Fuji PXF series controllers
Buy now!$24.75 CADNormally ships in 1-2 weeks![PXF USB Loader Cable 01977]()
Fuji ElectricPXF USB Loader Cable
Parameter loader interface cable for Fuji PXF series controllers
Buy now!$1,485.00 CADNormally ships in 1-2 weeks![PXR7 PXF4 Adapter Plate 12367]()

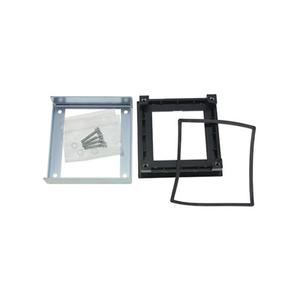

Fuji ElectricPXR7/PXF4 Adapter Plate
Panel Mount Adapter
Buy now!$107.25 CADNormally ships in 2-3 weeks
