Fuji Electric

PXR4 Temperature Controller

Advanced, self-tuning 1/16 DIN temperature and process controller with 16 ramp / soak segments

Starting At
$296.00 CAD
This SKU has 1 in stock for immediate delivery!
See our 'In Stock' list below!

Configure   Request Quote

Can We Help You?


Our product experts are here to help you find the right solution for your application!

The Fuji PXR4 temperature controller is an advanced, 1/16 DIN temperature and process controller. Designed for a wide range of applications, the PXR4 not only includes auto-tuning and fuzzy control, but also features self-tuning - an innovation in the control field. Self-tuning automatically re-tunes the controller under certain conditions, without the need to revert to auto-tuning.

The PXR4 accepts process and temperature inputs and offers a choice of three kinds of outputs to meet a wide variety of needs in the process industries. Single or dual outputs include relay, SSR driver, or 4-20mA. The controller's standard 8-segment ramp/soak feature has been expanded to include two patterns that can be linked to create a 16-step profile.

One of the most impressive features of the PXR4 is the large LED display. The faceplate, designed for NEMA 4X (IP66 equivalent) is watertight and corrosion-resistant. The easy-to-use 3-button keypad makes programming quick and easy. The screw-terminal on the back further reduces the cost by eliminating the need for sockets.

Remote monitoring of up to 31 PXR series controllers at a time is possible with the RS485 option that uses the industry-standard Modbus protocol. The communications option comes with free Windows-based software, PXR-LITE. The software allows you to program PXR series controllers from the PC and view real-time data and trend graph while logging the data on to a text file.

A powerful tool for the OEM customer is the Program Loader option with Windows-based software. Programs for different applications can be saved to and from Fuji temperature PXR series controllers.

•1/16 DIN (48x48 mm)
•PID plus self-tuning, PID plus fuzzy control, and auto-tuning
•NEMA 4X waterproof faceplate with large LED display
•Thermocouple/RTD and 4-20mA/0-5V inputs
•Single or dual control outputs
•Up to 16 ramp/soak segments or two 8-segment patterns
•Programmable alarms and heater burnout alarm options
•Remote Setpoint Option
•Analog retransmission option
•Digital Input Option
•Timer Function
•Remote monitoring and free software with RS485 option
•ISO 9001 manufactured
•3-year warranty
•UL873 approved

• Brewing
• Coffee Roasting
• Cryogenics
• Kiln
• Refrigeration Control/Monitoring

For panel mount applications
Normally ships in 1-2 Weeks
$4.00 CAD
Eight pin front wired socket with DIN Rail mount
Normally ships in 1-2 Weeks
$5.00 CAD
Eleven pin back wired socket
Normally ships in 1-2 Weeks
$5.00 CAD
Eleven pin front wired socket with DIN Rail mount
Normally ships in 1-2 Weeks
$7.00 CAD
0-30A Current Transformer
Normally ships in 1-2 Weeks
$30.00 CAD
20-50A Current Transformer
Normally ships in 1-2 Weeks
$52.00 CAD
Two-wire RS485 to USB converter
Normally ships in 1-2 Weeks
$181.00 CAD

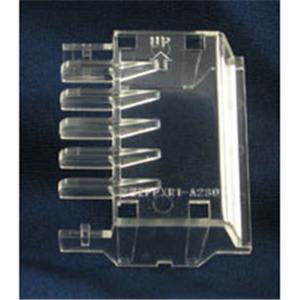

Terminal block protective cover for PXR4
Normally ships in 1-2 Weeks
$20.00 CAD
