Setra Systems

Power Patrol

Revenue grade networked 3-phase power meter

Starting At
$834.00 CAD
Normally ships in 1-2 Weeks

Configure   Request Quote

Can We Help You?

CALL US   EMAIL US   CHAT LIVE

Our product experts are here to help you find the right solution for your application!

The Setra Power Patrol is every electrical contractor’s dream. The Revenue Grade networked 3-phase power meter works with Rogowski Coils and has a small enough form factor to be mounted inside or outside of the panel using either mounting tabs or the DINrail clip making it the easiest installation in the industry.

Rogowski and CT Compatible - The Power Patrol works with either Rogowski Coil “flex” CTs or conventional split-core CTs. The ability to have interchangeable CTs gives added flexibility for last minute changes at the job site. The Power Patrol is embedded with the necessary amplifier/integrator circuitry for Rogowski coil CTs—eliminating the need to provide external power.

Easy USB Configuration - Using the Power Patrol HeadStart software, power and configure the meter through your computer’s USB port. While other meter’s require configuration in a live enclosure, the Power Patrol can be easily configured outside of the panel, eliminating the risk of arc flash. HeadStart can save meter settings, allowing the installer to clone meter profiles quickly and easily.

Field Selectable Communications (4-in-1) - Each Power Patrol comes with a field selectable Modbus or BACnet communication. Communications interface to the Power Patrol is through either an RS-485 serial connection (BACnet MS/TP / Modbus) or over Ethernet (BACnet IP/ Modbus TCP).

Line Powered from 80-600V - The Power Patrol series instruments are line-powered and do not require external power. Its power supply can accommodate service voltages ranging from 80-600V (phase-to-phase). The Power Patrol has 3 LED indicators (Red/Green) which confirm proper CT-to-phase installation.


• Revenue Grade Approved by NRTL
• Configure & Power Through USB
• Eliminate Setup Within Live Enclosure
• UL 610 Rated & BTL Certified
• Phase-Check LED’s Confirm Wiring
• Rogowski Coil & Split-Core CT Compatible
• Field Selectable BACnet/Modbus (4-in-1)
• Broadband Power Supply (80-600V)
• Optional Display For Setup and Monitoring
• ANSI C12.20-2010 Class 0.2
• Bidirectional
• DINrail Mount
• Digital Pulse Output
• 5 Year Warranty

• Measurement & Verification
• Demand Response
• Energy Cost Allocation
• Equipment Efficiency Tracking
• Preventative Maintenance


   Meter Installation ROI Calculator





  Meter Mounting Location


  Cost of Electrician Per Hour $

  Expected Savings For One Installed Meter $






  Number of Metering Points

  Expected Total Job Savings $

  Disclaimer: Estimates are based on data gathered from licensed electricians regarding experiences installing competitive meters.


Item
Description
Availability
Price

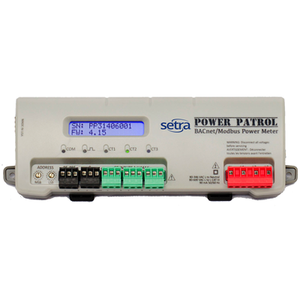

Power Patrol Enclosure Kit
Enclosure Kit for the Setra Power Patrol
Normally ships in 1-2 Weeks
$267.03 CAD

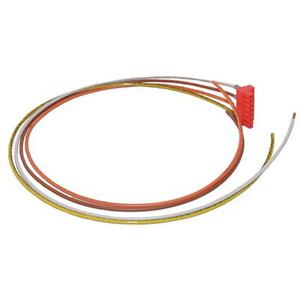

SPP-ACC Voltage & Fuse Leads
Voltage and fuse leads for the Setra Power Patrol & Power Squad 24
Normally ships in 1-2 Weeks
Starting At
$43.07 CAD
Configure
