RHP-E/N Wall Mount Humidity/Temperature/Dew Point Transm...
The most versatile room transmitter on the market
The Series RHP-E/N Wall Mount Humidity/Temperature/Dew Point Transmitter is the most versatile room transmitter on the market. The stylish housing is well vented to provide air flow across the sensor to improve measurement accuracy. The humidity and the dew point are measured using a capacitive polymer sensor that completely recovers from 100% saturation. The humidity and dew point can have either a current or voltage output, while the optional temperature output can be a current, voltage, RTD or thermistor. For models with current or voltage for the temperature output, the temperature range is field selectable.
• Field selectable relative humidity or dew point output
• Universal analog outputs
• Integral or service tool LCD display options
• Two housing designs to match North American and European aesthetics
| Relative Humidity Range: | 0 to 100% RH. |
| Temperature Range: | -40 to 140°F (-40 to 60°C) for thermistor and RTD sensors. -20 to 140°F (-28.9 to 60°C) for solid state band gap temperature sensors. |
| Dew Point Temperature Range: | -20 to 140°F (-28.9 to 60°C); 0 to 100°F (-17.8 to 37.8°C); 40 to 90°F (4.4 to 32.3°C); -4 to 140°F (-20 to 60°C) field selectable ranges. |
| Accuracy: | RH: Model RHP-2XXX ±2% 10 to 90% RH @ 25°C; Model RHP-3XXX ±3% 20 to 80% RH @ 25°C; Model RHP-5XXX ±5% 20 to 80% RH @ 25°C; Thermistor temperature sensor: ±0.36°F @ 77°F (±0.2°C @ 25°C); RTD temperature sensor: DIN Class B; ±0.54°F @ 32°F (±0.3°C @ 0°C); Solid state band gap temperature sensor: ±0.9°F @ 77°F (±0.3°C @ 25°C). |
| Hysteresis: | ±.8%. |
| Repeatability: | ±0.1% typical. |
| Temperature Limits: | Operating: -40 to 140°F (-40 to 60°C); Storage: -40 to 176°F (-40 to 80°C). |
| Compensated Temperature Range: | -4 to 140°F (-20 to 60°C). |
| Power Requirements: | 4-20 mA loop powered outputs: 10-35 VDC; 0-5/10V outputs: 15-35 VDC or 15-29 VAC. |
| Output Signals: | 4-20 mA loop powered outputs: 4-20 mA, 2 channels for humidity/ solid state temperature sensor models (loop powered on RH). Switch selectable RH/dew point. Switch selectable normal or reverse output; 0-5/10V outputs: 5 mA max., 2 channels for humidity/solid state temperature sensor models. Switch selectable 0-10 V/2-10 V or 0-5 V/1-5 V output. Switch selectable RH/dew point. Switch selectable normal or reverse output. |
| Solid State Band Gap Temp Sensor Output Ranges: | Switch selectable, -20 to 140°F (-28.9 to 60°C); 0 to 100°F (-17.8 to 37.8°C); 40 to 90°F (4.4 to 32.3°C); -4 to 140°F (-20 to 60°C). |
| Response Time: | 8 s. |
| Electrical Connections: | Screw terminal block. |
| Drift: | <.25% RH/year. |
| RH Sensor: | Capacitance polymer. |
| Enclosure Material: | Polycarbonate. |
| Enclosure Rating: | IP20. |
| Display: | Optional LCD; Switch selectable %RH or dew point, °F/°C. |
| Display Resolution: | RH: 1%; Temperature: 0.1°F (0.1°C); Dew Point: 1°F (1°C). |
| Weight: | 4.4 oz (125 g). |
| Agency Approvals: | CE. |
• Air economizers
• Room comfort monitoring
• Greenhouse monitoring
Item
Description
Availability
Price
Power supply, 100 - 240 VAC
Normally ships in 2-3 Weeks
$74.00 CAD

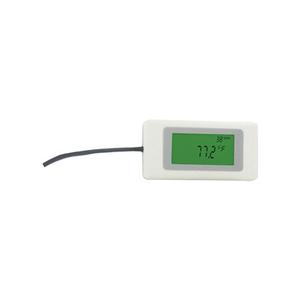

Remote display with mini USB display
Normally ships in 3-4 Weeks
$129.00 CAD
View All Part Numbers
