` SGD 35-M Panel Meter


SGD 35-M Panel Meter

3.5 programmable TFT panel meter

$226.00 CAD
Normally ships in 1-2 Weeks

  Request Quote

Can We Help You?


Our product experts are here to help you find the right solution for your application!

The SGD 35-M is a programmable panel meter featuring dual analogue inputs, alarm outputs and 3.5” TFT colour touchscreen display.  Configured using the free PanelPilot M Software, choose from an ever-increasing number of configurations including bar-graph, tank level, analogue style and trend graphs.  Then customise colours, text labels, units and input scaling before uploading to a display via USB.

• 3.5” colour TFT screen
• Use PanelPilot software, to setup and customise the display. Compatible with Windows XP, 2000, Vista and 7
• Multiple voltmeter configurations included free
• Programmable via the USB interface
• Simple panel mounting solution
• Wide operating voltage of 4 V – 30 VDC
• Measures voltage from 0 – 40 VDC
• Digital Hold

Display 3.5 colour TFT screen
Resolution 320 x 240 pixels (QVGA)
Operating Voltage 4 - 30 VDC
Measurement Range 0 - 40 VDC
Viewing Area 70.1 mm x 52.7 mm (2.8" x 2.1")

0.5 m type A to mini B USB cable
Normally ships in 1-2 Weeks
$14.00 CAD

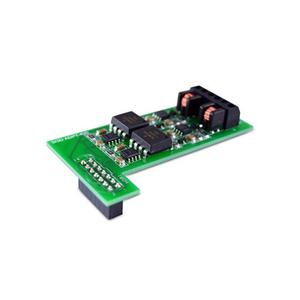

Current loop conditioning module for compatible PanelPilot displays
Normally ships in 1-2 Weeks
$81.00 CAD

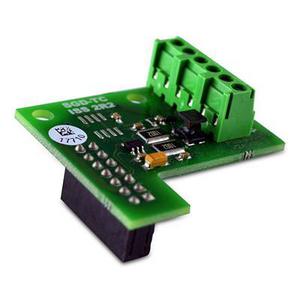

Thermocouple conditioning module for PanelPilot M series displays
Normally ships in 1-2 Weeks
$64.00 CAD
