SGD 70-A is a 7” capacitive touch display designed for use with PanelPilotACE Design Studio, a free drag-and-drop style software package for rapid development of advanced user interfaces and panel meters. This off the shelf display features a wealth of hardware interfaces, including four 16-bit bipolar analogue inputs (to a maximum of ±40V d.c.), eight digital input/output pins, two alarm outputs, four 8-bit PWM outputs, PID Control, Ethernet FTP for logged data, multi-channel data logging and trend graphs, serial RS232 and RS485 and an additional add on board to measure temperature.
• PID Control
• Easy Collection of Logged Data
• Multi-Channel Data Logging
• Trend Graphs
• Previewing and Uploading Projects
| Display | 7” TFT with 16.7 M colours |
| Touchscreen | Capacitive touch screen |
| Resolution | 1024 x 600 pixels |
| Processor | Freescale i.MX 6SoloX (ARM Cortex A9 & M4) |
| Analog Inputs | Four 16-bit to +/- 40 VDC |
| Supply | 5 - 30 VDC. (300 mA typical at 5 VDC) |
| Outside Dimensions | 186 mm x 122 mm x 21 mm (7.3" x 4.3" x 0.8") |
| Lascar SGD 70-A PanelPilot Display - Data Sheet 3.4 MB |
| Lascar SGD 70-A PanelPilot Display - Quick Start Guide 891.7 KB |
Item
Description
Availability
Price

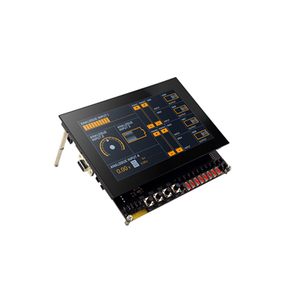

The development kit for the 7” PanelPilotACE compatible display, SGD 70-A
Normally ships in 1-2 Weeks
$1,033.00 CAD
