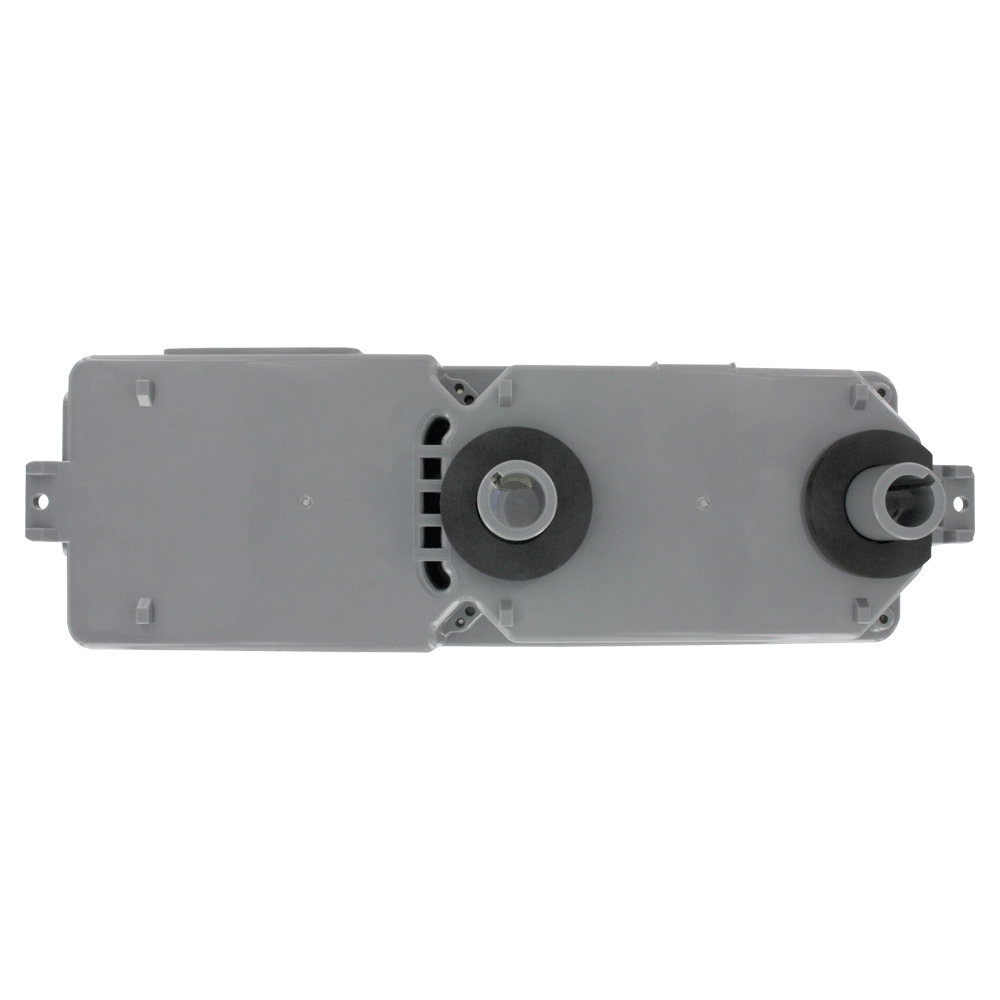

SL-2000 Duct Smoke Detector

Crucial for early detection of smoke and products of combustion present within HVAC ductwork

Buy now!

$561.45CAD

Have questions? We're here to help!

Call

QTY

Used in

The Series SL-2000 Duct Smoke Detector is crucial for early detection of smoke and products of combustion present within HVAC ductwork. This series can be utilized in many different types of applications including commercial, industrial, and residential. The unit is designed to not only alarm when smoke is detected, but will also utilize relays to disable fans and blowers. The series comes complete with technician friendly “No-Tools Required” features to make installation and servicing simple and efficient.

• Versatile installation applications with velocities up to 4000 FPM

• Easy performance verification with the built-in smoke and magnet test ports and clear cover to view status LED

• Simple installation with no tools required to load/remove sampling tubes

Approvals:	cULus (UL 268A) File # S2829, CSFM Listed (3240-1004:105), MEA Accepted (73-92-E; VOL. 27).
Weight:	2.5 lbs.
Radioactive Element:	For SL-2000-N (Ionization) americium 241; 0.9 Micro-curie; Do not expose to corrosive atmospheres.
Enclosure Rating:	SL-2000: NEMA 1; WP-2000: NEMA 3R.
Enclosure:	Grey plastic back box, clear plastic cover (Makrolon 94V-0).
Electrical Connections:	Screw terminals.
Electrical Rating:	Alarm contacts: 2 sets form “C” rated at 10 A resistive @ 115 VAC and 1 set form “A” rated at 2 A; Trouble contacts: 1 set form “C” rated at 10 A @ 115 VAC.
Power Requirements:	Standby: 230 VAC (12 mA), 115 VAC (22 mA), 24 VAC (55 mA), or 24 VDC (14 mA); Alarm: 230 VAC (18 mA), 115 VAC (32mA), 24 VAC (190 mA), or 24 VDC (68 mA).Standby: 230 VAC (12 mA), 115 VAC (22 mA), 24 VAC (55 mA), or 24 VDC (14 mA); Alarm: 230 VAC (18 mA), 115 VAC (32mA), 24 VAC (190 mA), or 24 VDC (68 mA).
Humidity Limits:	85 ±5 % RH (@32 ±2°C; 86 ±3.6°F) Non-condensing/Nonfreezing.
Ambient Temperature:	SL-2000-N: 32°F to 158°F (0°C to 70°C); SL-2000-P: 32°F to 140°F (0°C to 60°C).
Air Velocity Range:	100 to 4000 FPM.
Sensor Type:	Photoelectric or Ionization.
