SZ Single-Zone Refrigerant Leak Detector
Provides precise measurements enabling early leak detection
Bacharach’s Single-Zone Refrigerant Monitor delivers the best refrigerant leak detection available, with industry-leading MDL of 1ppm for halogenated gases, the fastest sampling frequency and the widest range of refrigerants accurately detected. The Single-Zone is the ideal tool for early detection of leaks from specific target areas such as chiller rooms and mechanical rooms. The low MDL enables detection of leaks that other instruments can’t find; enhances effective refrigerant management and compliance with refrigeration standards and regulations that require refrigerant emissions reduction such as EPA Section 608, CARB, and European F-Gas compliance. The Single-Zone Refrigerant Monitor delivers cost savings through reduced refrigerant recharge and enhanced energy efficiency.
• Proprietary infrared (NDIR) sensor accurately detects the presence of a target gas down to an industry-leading 1 ppm Minimum Detection Level (MDL)
• Sensor is not prone to false alarms caused by cross-interference from other gases or sudden changes in temperature or humidity
• Gas library contains 50+ refrigerants, with Halogen, CO2 and NH3 versions available
• Backlit display shows real-time concentration readings and makes configuration and self-diagnostics intuitive
• High performance sampling pump for fast response times, including extending sample lines
| Sensor Channels: | 1 |
| Sample Points: | 3 |
| Measuring Range: | Refrigerants: 0 to 10,000 ppm, Ammonia: 25 to 10,000 ppm, Carbon Dioxide: 300 to 8,000 ppm |
| Sensitivity / Minimum Detection Limit: | Refrigerants: 1 ppm, Ammonia: 10 ppm, Carbon Dioxide: 10 ppm |
| Accuracy: | ±1 ppm ±10% from 0-1000 ppm (refrigerants); ±10 ppm ±10% from 0-10,000 ppm (Ammonia); ±5 PPM ±5% from 300-1000 ppm (CO2) |
| Resolution: | 1 ppm |
| Enclosure Rating: | General Purpose |
| Sampling Distance: | 0 to 500' (0 to 150 m) |
| User Interface: | Backlit, graphic LCD 160 x 128 pixel; three status LEDs |
| Power: | 100 to 240 VAC, 50/60 Hz, 15W |
| Analog Communications: | 4 to 20 mA |
| Digital Communications: | Modbus RTU via RS 485 |
| Operating Voltage: | 100 to 240 VAC, 50 / 60 Hz |
| Relay Rating: | 3 alarm relays, 1 fault relay, SPDT |
| Wiring: | 3 A @ 250 VAC, resistive load |
| Alarm: | Integrated Audible / Visual Alarm |
| Ambient Temperature: | 32 to 122°F (0 to 50°C) |
| Humidity: | 5 to 90 %RH, non condensing |
| Altitude: | 0 to 6,560 ft (2,000 m) |
| Status Indicator: | LCD, LEDs |
| Buzzer Volume: | 80 dB @ 10 cm |
| Product Dimensions (L×W×H): | 13.7” × 7.7” × 3.6” (350 × 195 × 95 mm) |
| Product Weight: | 7 lbs. (3.2 kg) |
| Sensor Type: | NDIR |
| Expected Sensor Service Life: | 10 Years |
| Approvals: | CE, UL, CSA, EN 61010-1, EN 14624 |
| Warranty: | 2 Years |
Item
Description
Availability
Price
Air sample tubing for the multi- and single-zone refrigerant leak detectors
Normally ships in 1-2 Weeks
Starting At
$245.00 CAD
$245.00 CAD
Air sample tubing for the multi-zone (HGM-MZ, AGM-MZ) and single-zone (HGM-SZ, AGM-SZ) refrigerant leak detectors
Normally ships in 1-2 Weeks
$32.00 CAD
Splitter kit for the multi- and single-zone refrigerant leak detectors
Normally ships in 1-2 Weeks
Starting At
$140.00 CAD
$140.00 CAD

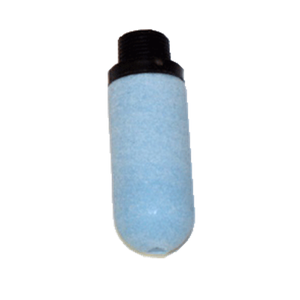

Line end external filter the multi- and single-zone refrigerant leak detectors and the PGM-IR leak detector
Normally ships in 1-2 Weeks
$49.00 CAD
Audible/visual alarm for the multi- and single-zone refrigerant leak detectors
Normally ships in 1-2 Weeks
Starting At
$668.00 CAD
$668.00 CAD
Charcoal filter mounting bracket for the multi- and single-zone refrigerant leak detectors
Normally ships in 1-2 Weeks
$34.00 CAD

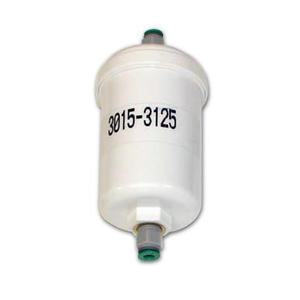

Charcoal purge filter assembly (with fittings) for the multi- and single-zone refrigerant leak detectors and the PGM-IR leak detector
Normally ships in 1-2 Weeks
$209.00 CAD

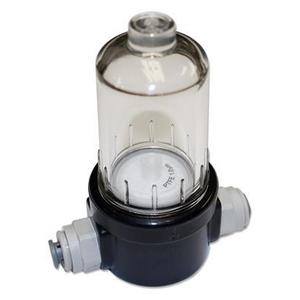

Inline water trap for the multi- and single-zone refrigerant leak detectors
Normally ships in 1-2 Weeks
$228.00 CAD
The replacement filter element for the inline water trap for the multi- and single-zone refrigerant leak detectors
Normally ships in 1-2 Weeks
$48.00 CAD

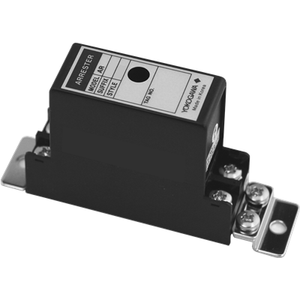

Surge protector for the multi- and single-zone refrigerant leak detectors
Normally ships in 1-2 Weeks
Starting At
$462.00 CAD
$462.00 CAD
Gas verification kit for for the multi- and single-zone refrigerant leak detectors
Normally ships in 1-2 Weeks
Starting At
$2,280.00 CAD
$2,280.00 CAD
Variable flow regulator for the multi- and single-zone refrigerant leak detectors
Normally ships in 1-2 Weeks
$984.00 CAD
1031 Cylinder for the multi- and single-zone refrigerant leak detectors
Normally ships in 1-2 Weeks
Starting At
$1,347.00 CAD
$1,347.00 CAD
View All Part Numbers
