Series 16G,8G,4G Temp./Process Loop Controllers
Universal Input, Dual Output, On/Off PID or FUZZY Logic Output Control
The Series 16G, 8G, AND 4G Temperature/Process Loop Controllers allow for monitoring and control of temperature or process conditions. The controller features two independent control outputs for dual loop control using on/off, auto-tune or self-tune PID, fuzzy logic, or manual control methods. RS-485 interface is included with Modbus® communication protocol, for easy bench-top configuration or integration with a PLC or data control system.
• On/off, PID, fuzzy logic, or manual output control
• Constant, sloped, program (ramp/soak), or remote set-point control
• 2 primary control outputs, 2 secondary/alarm relay outputs, and RS-485 standard on all models
• Remote set-point, input retransmission, or event input functions available with optional hardware
| Inputs | Thermocouple, RTD, DC voltages or DC current. |
| Display | Process value: 4 digit, 0.47" H (12mm), orange LCD; Set point value: 4 digit, 0.47" H (12mm), green LCD. |
| Accuracy | ± 1.8°F plus ±0.3% of span (±1°C plus ±0.3% of span) at 77°F (25°C) after 20 minutes warm up. |
| Power Requirements | 100 to 240 VAC -20/+8%, 50/60 Hz; Optional 24 VDC, ±10%. |
| Power Consumption | 5 VA max. |
| Operating Temperature | 32 to 122°F (0 to 50°C). |
| Storage Temperature | -42 to 150°F (-20 to 65°C). |
| Memory Backup | Nonvolatile memory. |
| Control Output Ratings | Relay: SPST, 5 A @ 250 VAC resistive; Voltage pulse: 12 V (max. 40 mA); Current: 4 to 20 mA; Linear voltage: 0 to 10 V. |
| Alarm Relay Ratings | 3 A @ 250 VAC resistive. |
| Communication | RS-485 Modbus® ASCII/RTU communication protocol. |
| Weight | 9 oz (255g). |
| Front Panel Rating | IP66. |
| Agency Approvals | CE, cULus. |
• Oven control
• Packaging equipment
• Parts washers
Item
Description
Availability
Price
Weatherproof enclosure, type 4X, clear plastic window with rear panel for mounting the control inside the enclosure
Normally ships in 3-4 Weeks
$718.00 CAD

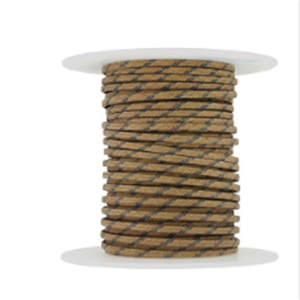

J type, 100' on spool, fiber glass insulation, 450°C, black outer sheath, 24 AWG, 0.20 SQMM
Normally ships in 3-4 Weeks
$110.00 CAD
J type, 100' on spool, FEP insulation, 200°C, black outer sheath, 24 AWG, 0.20 SQMM
Normally ships in 3-4 Weeks
$83.00 CAD

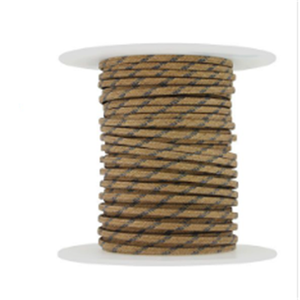

J type, 25' on spool, fiber glass insulation, 450°C, black outer sheath, 24 AWG, 0.20 SQMM
Normally ships in 3-4 Weeks
$51.00 CAD
J type, 25' on spool, FEP insulation, 200°C, black outer sheath, 24 AWG, 0.20 SQMM
Normally ships in 3-4 Weeks
$42.00 CAD
J type, 25' on spool, FEP insulation, 200°C, black outer sheath, 24 AWG, 0.20 SQMM
Normally ships in 3-4 Weeks
$71.00 CAD

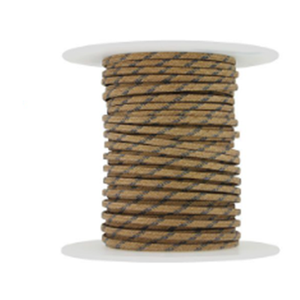

J type, 50' on spool, FEP insulation, 200°C, black outer sheath, 24 AWG, 0.20 SQMM
Normally ships in 3-4 Weeks
$53.00 CAD

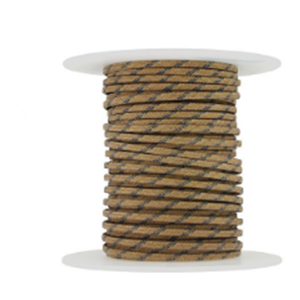

K type, 100' on spool, fiber glass insulation, 450°C, yellow outer sheath, 24 AWG, 0.20 SQMM
Normally ships in 3-4 Weeks
$177.00 CAD
K type, 100' on spool, FEP insulation, 200°C, yellow outer sheath, 24 AWG, 0.20 SQMM
Normally ships in 3-4 Weeks
$156.00 CAD
K type, 25' on spool, FEP insulation, 200°C, yellow outer sheath, 24 AWG, 0.20 SQMM
Normally ships in 3-4 Weeks
$62.00 CAD
K type, 25' on spool, fiber glass insulation, 450°C, yellow outer sheath, 24 AWG, 0.20 SQMM
Normally ships in 3-4 Weeks
$67.00 CAD
K type, 50' on spool, fiber glass insulation, 450°C, yellow outer sheath, 24 AWG, 0.20 SQMM
Normally ships in 3-4 Weeks
$106.00 CAD

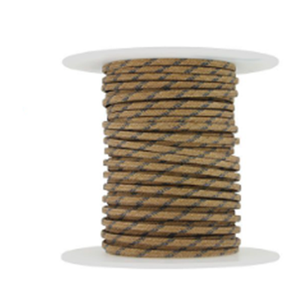

K type, 50' on spool, FEP insulation, 200°C, yellow outer sheath, 24 AWG, 0.20 SQMM
Normally ships in 3-4 Weeks
$91.00 CAD
K type, 50' on spool, FEP insulation, 200°C, yellow outer sheath, 24 AWG, 0.20 SQMM
Normally ships in 3-4 Weeks
$91.00 CAD
Mini-node RS-485 to USB converter
Normally ships in 2-3 Weeks
$209.00 CAD
R/C snubber (recommended for inductive loads like a solenoid or contactor)
Normally ships in 3-4 Weeks
$51.00 CAD
Weatherproof enclosure, type 4X, control direct panel mounts in the front of the enclosure
$336.00 CAD
View All Part Numbers
