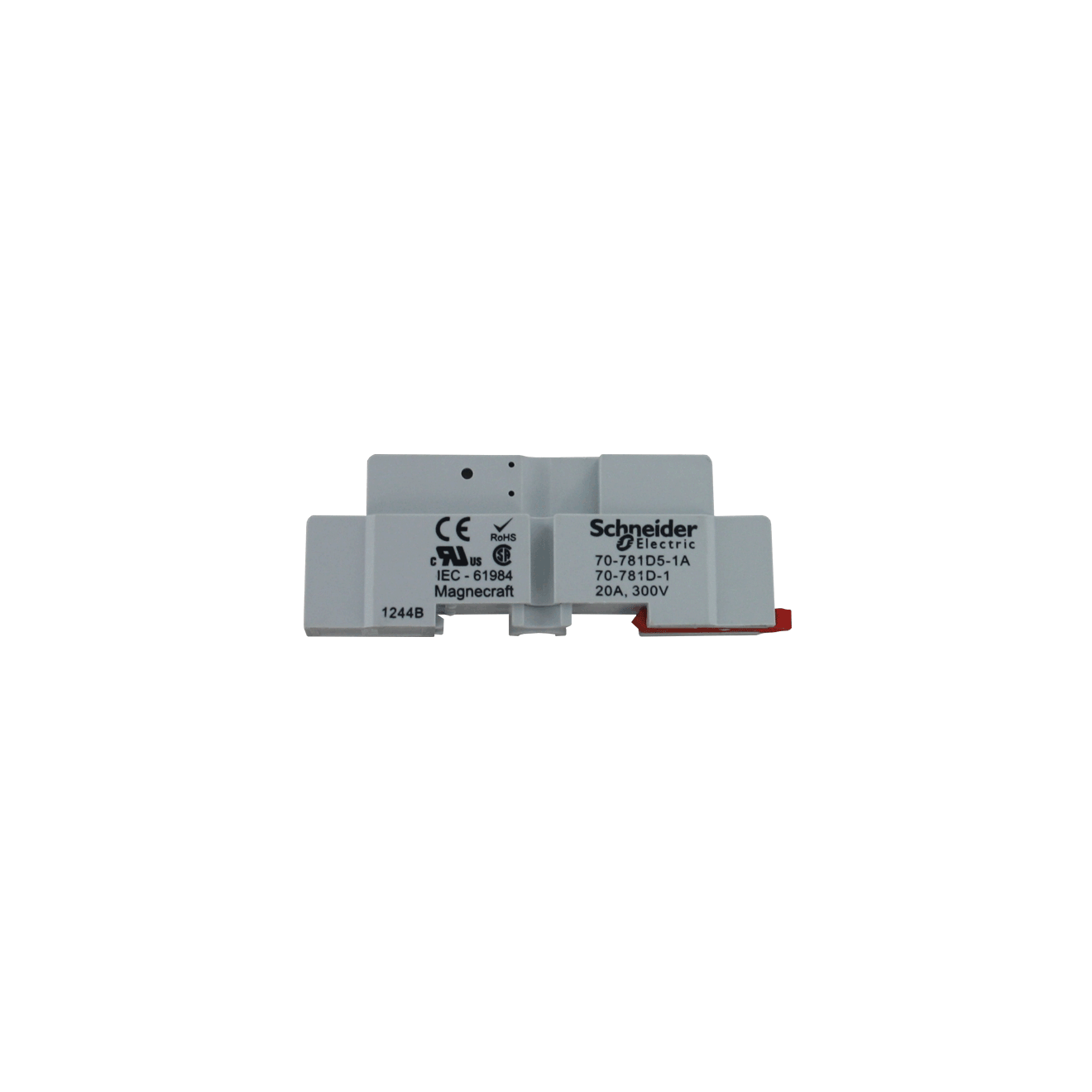

The Series 781 Electromechanical Ice Cube Relay is a full-featured SPDT relay that can be used to handle loads up to 15 amps for AC or DC circuits. It features a flag status indicator and a LED status lamp to let the user know when the relay is activated. In order to differentiate between AC and DC actuated models, the push-to-test button is color-coded. For testing the operation, a removable lock-down lever holds the test button in place. The clear plastic housing gives a view of the contacts, and there is a removable I.D. tag for labeling the circuit.
• Clear plastic housing to easily view the contacts
• Flag and LED status indicators for visual confirmation of relay state
• Socket mounted for quick installation/replacement
| Operating and Load Voltage Range | 24 to 240 VAC; 24 VDC. |
| Electrical Connection | Silver alloy plug-in contacts. |
| Switching Operation | SPDT. |
| Electrical Rating | 15 A @ 150 / 277 VAC (50/60Hz) or 28 VDC. |
| Temperature Limits | Storage: -40 to 185°F (-40 to 85°C); Operation: -40 to 131°F (-40 to 55°C). |
| Power Consumption: | 0.9 VA; 0.7W. |
| Cycle Life | 100,000 cycles (electrical); 10,000,000 cycles (mechanical). |
| Housing | Plastic polycarbonate. |
| Weight | 1.02 oz (29 g). |
| Agency Approvals | CE, CSA, RoHS, cUL, UL, cUR, UR. |
• Refrigeration compressor systems
• HVAC motor controls
• Water/wastewater pump control
