Series CSE-KN Carbon Steel Enclosure w/Knockouts

Sub-Panel Included, General Purpose Enclosure, UL Approved

Starting at

$400.62CAD

Have questions? We're here to help!

Call

Configure

Used in

Series CSE KN Carbon Steel Enclosure w Knockouts 11172

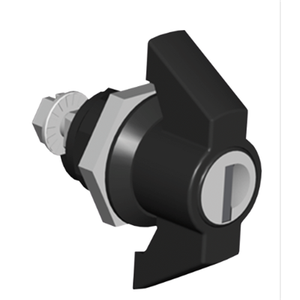

The Series CSE-KN Carbon Steel Enclosures are spot-welded, wall mounted enclosures designed to house electrical controls, instruments, and components in general purpose areas with knockouts to allow cords to pass easily into the unit. The door features butt hinges that allow 180° of rotation, a keylocking quarter turn latch, and a ground stud. Mounting holes on the back of the enclosure allow for versatile mounting. Each enclosure includes a sub-panel with a 2" x 2" (50.8 mm x 50.8 mm) mounting grid mounted on standoffs and lock with keys. This series is the perfect accessory for a variety of instrumentation in need of general protection and extra security.

Materials	Carbon steel.
Rating	NEMA 1 (IP30).
Dimensions	See chart on catalog page.
Thickness	0.060" (1.52 mm) for enclosures <24" (61 cm) wide; 0.075" (1.91 mm) for enclosures = 24" (61 cm) wide; 0.048" (1.22 mm) for sub-panels; 0.078" (1.98 mm) for mounting straps.
Weight	See chart on catalog page.
Agency Approvals	CSA, cULus. (Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
