Dwyer

Series LTI Temperature Panel Meter

1/8 DIN, Large Dual-Line Display

Starting at
$980.43CAD
Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Configure
Used in
Series LTI Temperature Panel Meter 11201 dm1746721642
Series LTI Temperature Panel Meter 1fb4b

 The Series LTI Temperature Panel Meter can be programmed in the field to accept a thermocouple or RTD input and display the temperature on a six-digit dual line display. The upper display will display four digits of temperature as well as °C or °F symbol. The lower display can be programmed to contain a tag. The Series LTI meters feature a NEMA 4X / IP65 front panel making them ideal for wet, dusty and dirty environments. Options include 2 or 4 relays and a 4-20 mA output. The 4-20 mA output option turns the LTI into an isolated temperature transmitter with a digital display. The LTI includes free USB based programming software to make programming a breeze.

• J, K, T, E, R, S, B, N, C thermocouples
• 100 or 1000 Ω platinum, 10 Ω copper, 120 Ω nickel RTDs
• Automatic cold junction compensation
• NEMA 4X, IP65 front
• 2 or 4 relays + isolated 4-20 mA output options
Programming SoftwareFree, USB based. Resident on meter, nothing to download.
ComplianceCE, RoHS, cUL, UL.
Weight9.5 oz (269 g).
Front Panel RatingNEMA 4X, IP65.
Humidity Limits0 to 90% (non-condensing).
Temperature LimitsOperating: -4 to 149°F (-20 to 65°C); Storage: -40 to 185°F (-40 to 85°C).
Resolution1° (up to four digits) or 0.1° (up to five digits).
DisplayDual-line, 6-digit display.
Switch Rating2 or 4 SPDT (Form C) internal and/or 4 SPST (Form A) external; Rated 3A @ 30 VDC and 125/250 VAC resistive load, 1/14 HP @ 125/250 VAC for inductive loads.
Power Consumption90 to 265 VAC models: 20 W max; 12 to 24 VDC models: 15 W max.
Power Requirements85 to 265 VAC 50/60 Hz, 90 to 265 VDC or jumper selectable 12 to 24 VDC ±10%.
OutputIsolated 4-20 mA.
Input ImpedanceGreater than 100 kΩ.
InputsThermocouple J, K, T, E, R, S, B, N, C; RTD 100 Ω platinum, 10 Ω copper, 120 Ω nickel, 1000 Ω platinum.

 • Temperature metering and monitoring

  • Thumbnail of document Data Sheet - Series LTI Temperature Panel Meter
    Download

    Data Sheet - Series LTI Temperature Panel Meter

    Download
  • Thumbnail of document Manual - Series LTI Temperature Panel Meter
    Download

    Manual - Series LTI Temperature Panel Meter

    Download

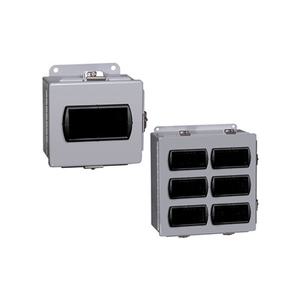

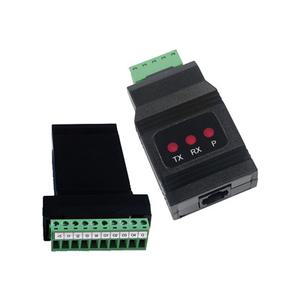

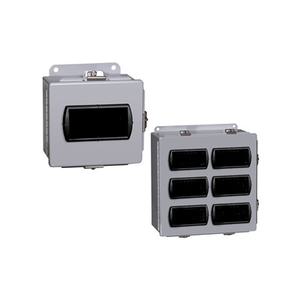

Accessories
