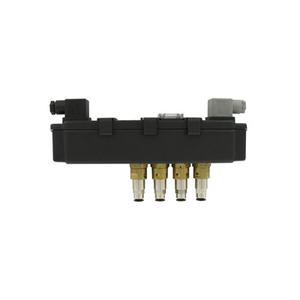

The Series SVT Solenoid Valve Enclosure with Timer is a compact, reliable and economic package designed for small to medium filtration systems. It combines a timer board and solenoid valve enclosure into one package, eliminating the need for separate enclosures and wiring. The SVT is available with 2, 4 or 6 valves. For larger systems expansion modules can be daisy chained to the SVT for a maximum of 60 outputs. The universal power supply accepts 90-240 VAC at either 50 or 60 Hz for both domestic and international requirements. On-Demand Cleaning or Down Time Cleaning functions can be selected with a simple dip-switch. Time-On and Time-Off settings are selected using two potentiometers.
• Minimize installation time and costs with one enclosure for electronics and valves
| Service: | Compatible gasses, filtered and oil-free. |
| Wetted Materials | Pilot Body: Brass; Spring: 302 SS; Diaphragm: NBR. |
| Temperature Limits | 14 to 140°F (-10 to 60°C). |
| Pressure Limit | 145 psi (10 bar). |
| Power Requirements: | 90 to 240 VAC, 50 or 60 Hz or 24 VAC 50 to 60 Hz, 24 VDC, ±10%. |
| Power Consumption: | 25 VA/25 W. |
| Fuse | 90 to 240 VAC 0.5 A delayed, 24VAC/DC 1.5 A delayed. |
| Electrical Connection | 2 DIN A 43652 connectors. |
| Enclosure Rating: | NEMA 4X (IP65). |
| Enclosure Material: | Polyamide with carbon fiber, polycarbonate, TPE rubber. |
| Process Connection | 1/4" OD Push to Connect. |
| Mounting Orientation | Any position. |
| On-Time | 150 msec to 700 msec. |
| Off-Time | 4 seconds to 210 seconds. |
| Compliance | CE. |
