Stingray 2.0 Portable Level-Velocity Logger

Compact, battery-powered logger w/ an ultrasonic sensor for flow monitoring through open channels

Buy now!

$7,304.85CAD

Have questions? We're here to help!

Call

QTY

Used in

Stingray 2 0 Portable Level Velocity Logger 00116

The Stingray 2.0 is a portable level-velocity logger, with free Greyline Logger Software for the calculation of flow as an open channel meter. The design is compact, portable, and battery-powered which makes it a fantastic instrument for open channel flow measurement. Using four standard Alkaline D-cell batteries to operate as a battery-powered data logger, the unit is a complete area velocity logger with an ultrasonic sensor that data logs level, velocity, and water temperature for flow monitoring through open channels, partially full sewer pipes and surcharged pipes.

Easy to Operate

The sensor is installed in the bottom of a pipe or channel and requires no calibration . Use the included Greyline Logger software to set the logging interval and get real-time flow readings on your laptop or PC. The built-in LCD display lets users check level and velocity rates, remaining battery life, and logger memory.

The Stingray 2.0 can scroll through the level, velocity, and temperature readings, and indicates the unit’s remaining battery life and logger storage capacity. To help with battery life, the display will turn off automatically after 60 seconds to preserve battery.

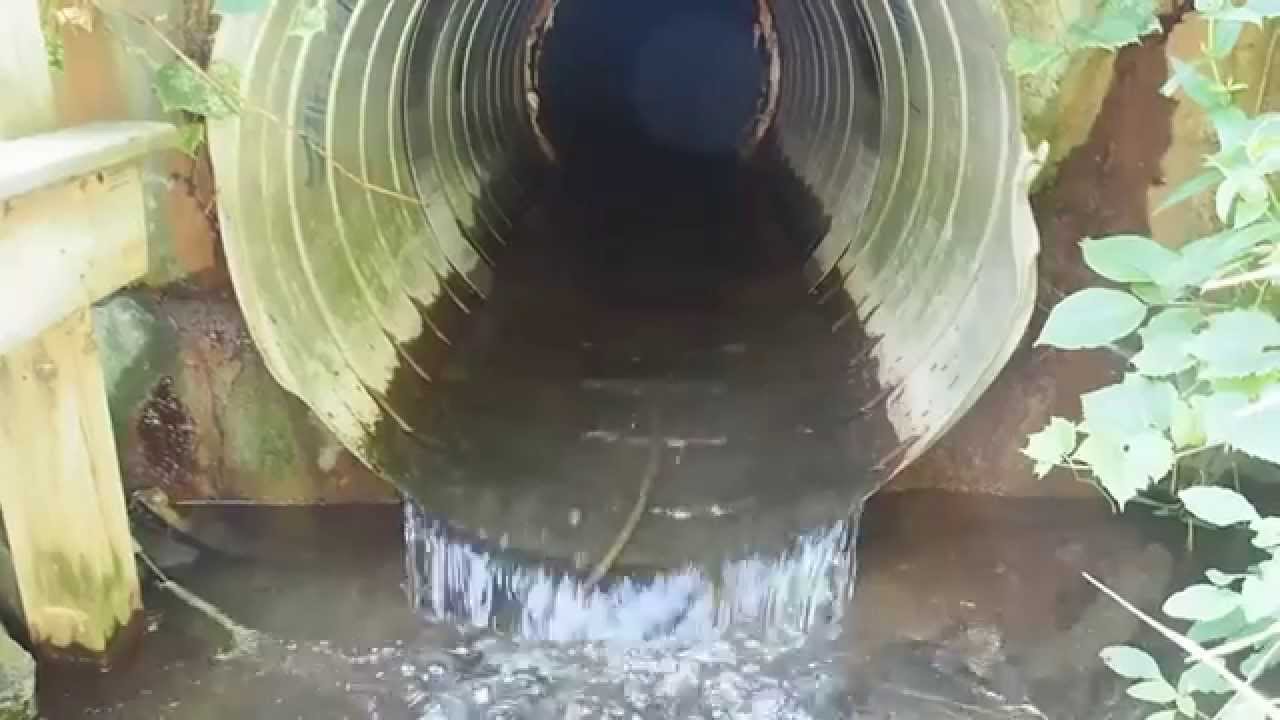

Ideally used for many open channel flow monitoring applications like flow surveys and studies, I&I (Inflow and Infiltration) studies, CSO monitoring, stormwater runoff, irrigation water, and permit compliance. The submersible ultrasonic sensor continuously monitors both level and velocity in the channel with no calibration required. The Stingray 2.0 portable open channel level-velocity logger stores 130,000 data points and offers USB data download to view real-time level and velocity readings, view the remaining logger and battery capacity, and set the logging interval.

This compact, portable battery-powered data logger is designed for flow measurement in applications without a flume or weir, especially stormwater, combined effluent, raw sewage, irrigation water, raw sewage, and streamflow.

• Measures water level and velocity in partially filled pipes and open channels

• No flume or weir required

• Extreme low power consumption

• Uses standard Alkaline D-cell batteries

• 130,000 point data logger

• USB output

• Powerful Windows software

• LCD bar graph display

General Specifications
Spec name:	Description:
Electronics Enclosure	IP 67 polycarbonate
Accuracy	Level: ±0.25% of range Velocity: ±2% of Reading
Display	LCD displays: Level, Velocity, Water Temperature, Battery, and Memory capacity
Operating Temperature (Electronics)	-20 °C to 60 °C (-4 °F to 140°F)
Instrument Set-up	via Greyline Logger software for Windows: Logging Time Interval, Site Name
Logger Interval	10 sec (15 days), 30 sec (45 days), 1 min (3 months), 2 min (6 months), 5 min (1 year), 10 min (2 years), 15 min (3 years), 30 min (4 years), or 60 min (4 years)
Data Logger capacity	130,000 data points
Power	4 Alkaline "d" cell batteries
Output/Communications	USB
USB Cable	1 m (3 ft) shielded
Software	Greyline Logger for Windows. Supports real-time monitoring, log file download and export, graph and data table presentation, level/velocity to flow conversion
Approximate Shipping Weight	4.5 kg (10 lbs)

QZ02L Sensor Specifications
Spec name:	Description:
Velocity Measurement Range	0.03 m/s to 3.8 m/s (0.1 ft/s to 12.5 ft/s) in fluids containing bubbles or solids with a minimum size of 100 microns and a minimum concentration of 75 ppm to act as acoustic reflectors
Level Measurement Range	Minimum Head: 25.4 mm (1 in). Maximum Head: 4.57 m (15 ft)
Operating Temperature	-15 °C to 80 °C (5 °F to 175 °F)
Exposed Materials	316 stainless steel, epoxy resin, polyurethane
Sensor Cable	7.6 m (25 ft) submersible polyurethane jacket, shielded, 3-coaxial
Sensor Mounting	Includes MB-QZ stainless steel mounting bracket
Temperature Compensation	Automatic, continuous
