TACH-10 Contact and Non-Contact Tachometer
Universal, economical tachometer measuring rotational or surface speed either in contact or non-contact way
Universal, economical tachometer measuring rotational or surface speed either in contact or non-contact way. Widely used to measure rotational speed of motors, conveyer belts and other moving or rotating systems.

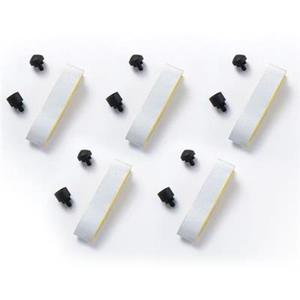

The TACH-10 comes with reflective tape, one (1) 9 V battery (installed), and a user's manual.
• Measures rotational and surface speed
• User selectable units for contact measurement: RPM, m/min, ft/min, yd/min
• Non-contact measurement in RPM
• Digital display
• Auto power off function
• Easy to select units and mode functions
TACH-10 | |
Rotation (Non-Contact) | 10.0 rpm - 99999 rpm |
Rotation (Contact) | 10.0 rpm - 19999 rpm |
Surface Speed (Contact) | 1.0000 m/min - 9999.9 m/min |
LCD Size (H x W) | 15 mm x 33 mm (0.6 in x 1.3 in) |
Battery | 9 V battery |
Power Consumption | 5 µA (Idle), 18 mA (measurement) |
Time Base | 4.0 MHz Quartz Crystal |
Sampling Time | 1 s (> 60 rpm) > 1 s (10 rpm - 60 rpm) |
Measure Distance | 5 cm - 30 cm (2 in - 13 in) (Non-contact) |
Included Accessories | Meter, 9 V battery, cone & funnel contact tips, reflective tape, users manual |
For complete specifications please download the product datasheet under the “Resources" tab.
