Dickson

TP Temperature & Humidity Data Logger

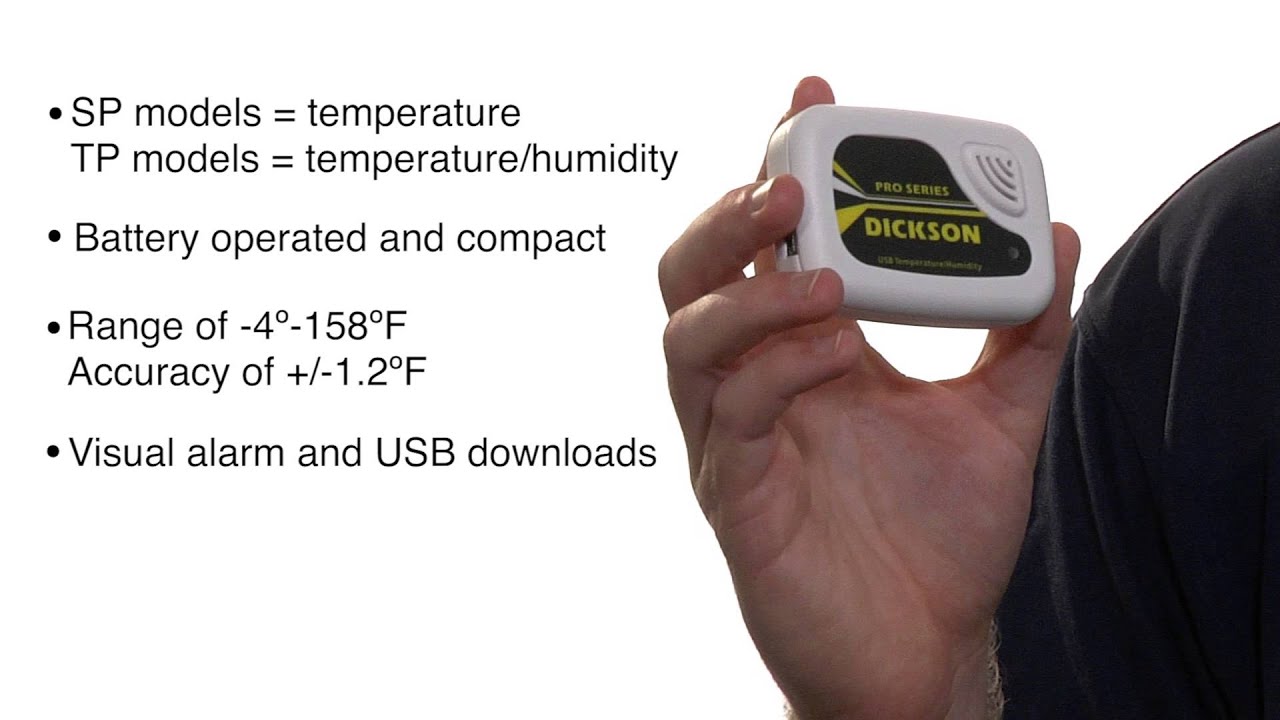

A compact, simple set up, battery powered, USB-enabled fast downloading temperature and humidity data logger

This product is no longer available. Contact us at 800-567-8686 for alternative solutions.

Have questions? We're here to help!
Have questions? We're here to help!

Small temperature and humidity data loggers with lots of cool features for the most precise data collection needs.  The TP425 has start/stop functionality and includes a digital display that provides current and min/max readings.

These temperature and humidity data logger excels in the widest range of applications including regulatory compliance, HVAC balancing, warehouse mapping, process control and more. Simple to set-up, easy to use and battery powered.

Each data logger comes with the appropriate lithium battery and quick start guide.  Software is not included.

• USB enabled fast downloading
• 32 KB data storage
• User defined sampling rates - you determine how often it takes a reading
• Battery powered
• Digital display (TP425 only)
• Start/stop button (TP425 only)

Ambient Operating RH Conditions5% - 95% RH, Non-condensing
Ambient Operating Temperature ConditionsTP125: -10.0°F - 176.0°F (-23.0°C - 80.0°C)
TP425: -4.0°F - 158.0°F (-20.0°C - 70.0°C)
Battery Life (Avg)1 year
Cable DetailsUSB - male series A plug into 5 pin male series B mini plug
Cable Length6 ft
Calibration OptionsN100, N300, N400, N520
ChannelsCH1: Temperature, CH2: Humidity
Data Capacity32,000 (16,000 per channel)
Delayed StartYes
Dimensions0.9 in x 2.1 in x 3.1 in
Download Time1 min
Download TypeUSB
Humidity Accuracy± 2.0% RH from 0.0% - 60.0%, ± 3.0% RH from 60.0% - 95.0%
Humidity Range0% - 95% RH, Non-condensing
Humidity Sensor TypeMonolithic IC humidity sensor
IP Rating20
Included Accessories*TP125: CR2450 lithium battery and quick start guide
TP425: 123A lithium battery and quick start guide
Minimum Software Version RequiredTP125: 10.0
TP425: 13.6
PC RequirementsMicrosoft Windows 98 or better; 16 MB RAM, 1 free USB root hub, CD drive, VGA monitor or better
Power SourceBattery (user-replaceable)
Power Status IndicatorTP125: LED indicator
TP425: LCD display
Sample IntervalUser selectable (from 1 s to 24 hr intervals, in 1 s increments)
Software OptionsA016, A026
Temperature Accuracy± 0.8°F from 20.0°F - 120.0°F (± 0.44°C from -7.0°C - 49.0°C)
Temperature RangeTP125: -10.0°F - 176.0°F (-23.0°C - 80.0°C)
TP425: -4.0°F - 158.0°F (-20.0°C - 70.0°C)
Temperature Sensor TypeInternal digital temperature sensor
Unit Weight1 lb
Units/Pkg1
Warranty12 month limited
*Software not included
