Ti480 PRO Infrared Camera

Introducing a leading-edge visual infrared experience in a professional 640 x 480 thermal imager

Buy now!
$19,599.99CAD
Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Used in
Also found in
Ti480 PRO Infrared Camera 03607
Ti480 PRO 2
t’s a dilemma. Preventive and predictive maintenance rounds must be done, however when conditions are harsh, there is no margin for error. Accurate measurements need to be captured the first time. Don’t go out unprepared. The Fluke Ti480 PRO is designed to work in the toughest industries.

Oil and gas production
Electrical, water and gas utilities
Metallurgy
Glass manufacturing
Advanced thermal capability. Rugged and easy to hold.
The rugged, pistol grip design of this camera allows the thermographer to focus on their surroundings rather than the camera. Clip it to your pack and climb a ladder – the camera can take it. Even after that type of a climb you can capture a surprising level of detail with the high thermal sensitivity, allowing you to isolate the smallest temperature anomalies. Display these temperature differences in SuperResolution mode – get 4x the standard resolution and analyze your thermal images in more detail than ever before. Never miss a temperature anomaly again, capture in-focus images throughout the field of view with MultiSharp. While you may not need all these features on a daily basis, they are essential when diagnosing mission critical equipment. When you need to get the right image the first time, reach for the Fluke Ti480 PRO.

Get the most out of your Ti480 PRO with Fluke Connect™ desktop software. Create professional reports in minutes while efficiently capturing full radiometric data to support your maintenance program.

Edit and optimize images
Combine infrared and visible images for simpler analysis
Create detailed reports
Organize and search images by asset, severity, and title
Get 4x the pixel data with SuperResolution, which captures multiple images and combines them to create a 1280 x 960 image
Save time - wirelessly sync images directly from your camera to the Fluke Connect® system, and attach to an asset record or work order
Reduce the need take notes in the field with IR-PhotoNotes™ and voice annotations
Capture a clear, accurate image focused throughout the field of view with MultiSharp™ Focus
Get an instant in-focus image of your designated target. LaserSharp® Auto Focus uses a built-in laser distance meter that calculates and displays the distance from your designated target.

• Increased sensitivity to visualize temperature differences
• Easier to visualize and diagnose issues with sharper onscreen images, multiple rectangle markers and 9 color palettes
• More intuitive visual interface, improved, user-tested, touch screen interface
• More flexibility to visualize target, tiny-to-large with interchangeable smart lenses - no calibration required, 2x and 4x telephoto, wide angle and macro lens compatibility
• Capture a clear, accurate image focused throughout the field of view with MultiSharp™ Focus
• Get an instant in-focus image of your designated target. LaserSharp® Auto Focus uses a built-in laser distance meter that calculates and displays the distance from your designated target.
• Get 4x the pixel data with SuperResolution, which captures multiple images and combines them to create a 1280 x 960 image
• Save time - wirelessly sync images directly from your camera to the Fluke Connect® system, and attach to an asset record or work order
• Reduce the need take notes in the field with IR-PhotoNotes™ and voice annotations

Auto capture (temperature and interval) Yes
Battery

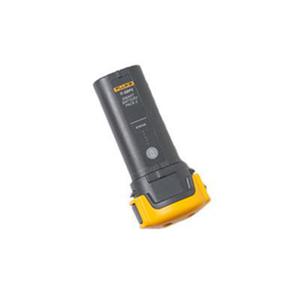

Batteries (field-replaceable, rechargeable) Two lithium ion smart battery packs with five-segment LED display to show charge level
Battery life 2-3 hours per battery (*Actual life varies depending on settings and usage)
Battery charge time 2.5 hours to full charge

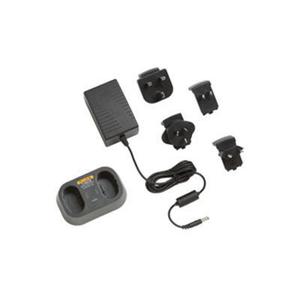

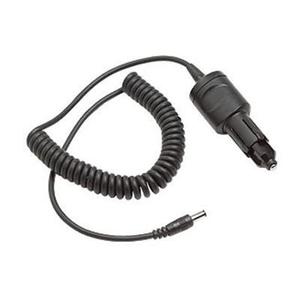

Battery charging system Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter
AC operation AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz)
Power saving User selectable sleep and power off modes
Color palettes
Standard palettes 9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted
Ultra Contrast™ palettes 9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted
Laser pointer Yes
LED light (torch) Yes
Color alarms (temperature alarms) High temperature, low temperature, and isotherms (within range)
Center-point temperature measurement Yes
Spot temperature Hot and cold spot markers
User-definable spot markers 3 user-definable spot markers
Center box Expandable-contractible measurement box with MIN-MAX-AVG temp display
Infrared spectral band 7.5 μm to 14 μm (long wave)
Operating temperature -10 °C to +50 °C (14 °F to 122 °F)
Storage temperature -20 °C to +50 °C (-4 °F to 122 °F)
Relative humidity 10% to 95% non-condensing
Safety IEC 61010-1: Overvoltage category II, Pollution Degree 2
IEC 61010-1: Overvoltage category II, Pollution Degree 2IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A
Australian RCM IEC 61326-1
US FCC CFR 47, Part 15 Subpart B
Vibration 0.03 g2/Hz (3.8 g), 2.5 g IEC 60068-2-6
Shock 25 g, IEC 60068-2-29
Drop Engineered to withstand 2 meter (6.5 feet) drop with standard lens
On-screen reflected background temperature compensation Yes
On-screen transmission correction Yes
*Best possible
Wireless connectivity
To PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available)
Fluke Connect® app compatible Yes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing
Fluke Connect® Assets optional software Yes*, assign images to assets and create work orders. Easily compare measurement types in one location
Fluke Connect® Instant Upload Yes*, connect your camera to your building's WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC
Fluke Connect® tool compatible Yes*, connects wirelessly to select Fluke Connect enabled tools and displays measurements on camera screen
IFOV with standard lens (spatial resolution) 0.93 mRad, D:S 1065:1
Detector resolution 640 x 480
SuperResolution Captures and combines 4x the data to create a 1280 x 960 (614,400 pixels) image
Infrared Resolution 307,200 pixels
MultiSharp™ Focus Yes, focused near and far, throughout the field of view
LaserSharp® Auto Focus Yes, for consistently in-focus images
Laser distance meter Yes, calculates distance to the target for precisely focused images and displays distance on screen
Advanced manual focus Yes
Ruggedized touchscreen display 3.5 inch (landscape) 640 x 480 LCD
Rugged, ergonomic design for one-handed use Yes
Digital zoom 2x and 4x
Temperature measurement range (not calibrated below -10 °C) ≤-20 °C to 1000 °C (-4 °F to 1832 °F)
Accuracy ±2 °C or 2% (at 25 °C nominal, whichever is greater)
Thermal sensitivity (NETD)* ≤0.05 °C at 30 °C target temp (50 mK)
On-screen emissivity correction Yes (both value and table)
Adds the context of the visible details to your infrared image
AutoBlend™ mode Min, Mid, Max IR plus full visible on camera; continously variable in software
Picture-In-Picture (PIP) Yes
Built-in digital camera (visible light) 5 MP
Lenses
Standard lens
IFOV (spatial resolution)0.93 mRad, D:S 1065:1
Minimum span (in auto mode) 3.0 °C (5.4 °F)
Data storage and image capture
Extensive memory options Removable 4 GB micro SD memory card, 4 GB internal flash memory, save to USB flash drive capability, upload to Fluke Cloud™ for permanent storage
Image capture, review, save mechanism Image capture, review, save mechanism
Image capture, review, save mechanism Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg and .avi) files
Memory review Thumbnail and fullscreen review
Software SmartView® software - full analysis and reporting software and Fluke Connect® system
Export file formats with SmartView® software Bitmap (.bmp), GIF, JPEG, PNG, TIFF

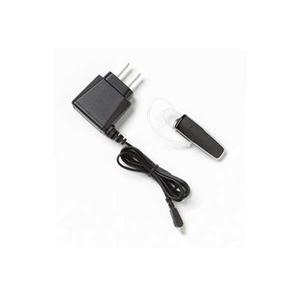

Voice annotation 60 seconds maximum recording time per image; reviewable playback on camera, optional bluetooth headset available but not required
IR-PhotoNotes™ Yes (5 images)
Text annotation Yes
Video recording Standard and radiometric
File formats video Non-radiometric (MPEG - encoded .AVI) and fully-radiometric (.IS3)
Streaming video (remote display) Yes, see the live stream of the camera display on your PC, smartphone, or TV monitor. Via USB, WiFi hotspot, or WiFi network to SmartView® software on a PC; via WiFi hotspot to the Fluke Connect® app on a smartphone; or via HDMI to a TV monitor
Remote control operation Remote control operation
Minimum span (in manual mode) 2.0 °C (3.6 °F)
Fast auto-rescale in manual mode Yes
Fast auto toggle between manual and auto modes Yes
Level and span Smooth auto and manual scaling
IR-Fusion® technology Full screen
Minimum focus distance 15 cm (approx. 6 in)
Field of view 48 °H x 34 °V
IFOV 1.85 mRad, D:S 377:1
Optional wide-angle smart lens
IR-Fusion® technology N/A
Minimum focus distance 1.5 cm (approx. 60 in)
Field of view 6 °H x 4.5 °V
IFOV (spatial resolution) 0.23 mRad, D:S 2941:1
Optional 4x telephoto smart lens
IR-Fusion® technology Picture-In-Picture and full screen
Minimum focus distance 45 cm (approx. 18 in)
Field of view 17 °H x 12 °V
IFOV (spatial resolution) 0.46 mRad, D:S 1529:1
Optional 2x telephoto smart lens
IR-Fusion® technology Picture-In-Picture and full screen
Minimum focus distance 15 cm (approx. 6 in)
Field of view 34 °H x 24 °V
Frame rate 60 Hz or 9 Hz versions
IR-Fusion® technology



  • Thumbnail of document Data Sheet - Ti480 PRO Infrared Camera
    Download

    Data Sheet - Ti480 PRO Infrared Camera

    Download
  • Thumbnail of document Manual - Ti480 PRO Infrared Camera
    Download

    Manual - Ti480 PRO Infrared Camera

    Download

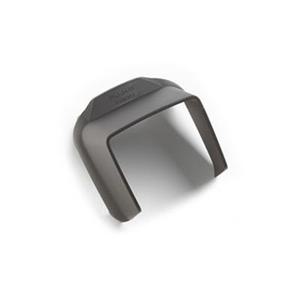

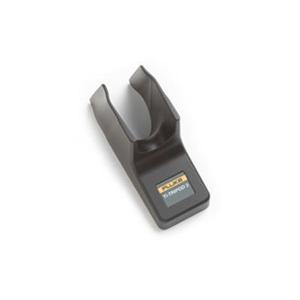

Accessories
