The Model VBT-1 Vibration Transmitter continuously detects the vibration in a system and monitors for unusual operating conditions and potential failure. Vibration is converted into an analog signal at the current output. The VBT requires no setup and no software needed for configuration. The 2-wire loop power operation, combined with a standard M12 micro cable connector and interchangeable mounting studs (1/4"-28 UNF/M8 (2) or the 1/4"-28 UNF), makes for a fast and reliable installation.
• Easy set-up and operating concept
• Stainless steel housing
• No software required
| Housing Material | 316 SS. |
| Temperature Limit | -22 to 221°F (-30 to 105°C). |
| Accuracy | < ±3%. |
| Connections | M12 connector. |
| Enclosure Rating | NEMA 6 (IP68). |
| Electrical Rating | 9.6 to 32 VDC. |
| Mounting Orientation | Any position. |
| Nonlinearity | < ±0.25% of span. |
| Frequency Range | 10 to 1000 Hz. |
| Output Signal | 4 to 20 mA. |
| Repeatability: | < 0.5%. |
| Weight | 0.28 lb (0.125 kg). |
| Compliance | CE. |
• Motors
• Pumps
• Fans
• Engines
• Compressors
• Gearboxes
| Dwyer VBT-1 Vibration Transmitter - Data sheet 208.2 KB |
| Dwyer VBT-1 Vibration Transmitter - Manual 187.1 KB |
Item
Description
Availability
Price

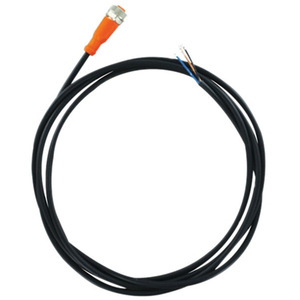

4-wire connector for CAM series compressed air meter
