VFC2000 Vaccine Temp Monitoring System

A simple low-cost solution recording temperatures as low as -100°C (-148°F)

Starting At
$289.00 CAD
Normally ships in 1-2 Weeks

Configure   Request Quote

Can We Help You?

CALL US   EMAIL US   CHAT LIVE

Our product experts are here to help you find the right solution for your application!

The VFC2000 is a simple, low-cost solution for vaccine temperature monitoring compliance. The VFC2000 is designed to satisfy all CDC and VFC requirements. The VFC2000 also provides precise, continuous temperature monitoring and validation for temperatures as low as -100 °C (-148 °F).

Featuring a convenient LCD screen, the VFC2000 displays current, minimum, and maximum readings as well as a battery level indicator. The VFC2000 is also equipped with an LED reminder to conduct the required 24-hour temperature check. If temperatures fluctuate out-of-range, the VFC2000 triggers an audio and visual alert.

The VFC2000 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical and tabular data is provided for analysis and can be viewed using the software which supports customizable engineering units.

• VFC & CDC Compliant
• Audible & Visual Alarms
• Temperature Check Reminder
• Annual or Biennial Calibration Option

Memory 16,128 readings (all channels enabled)
Reading Rate 1 reading every second up to 1 reading every 24 hours
Cold Junction Compensation Automatic based on internal channel
Battery Life 3 years typical at 1 minute reading rate
Material ABS Plastic
Dimensions 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) - Data logger only
Operating Environment -20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing
Required Interface Package USB to Mini USB Cable
Weight 1.1250 LBS
Baud Rate 250,000
Temperature
Internal Channel Temperature Sensor Semiconductor
Internal Channel Temperature Range -20 °C to 60 °C (-4 °F to +140 °F)
Internal Channel Temperature Resolution 0.01 °C (0.18 °F)
Internal Channel Temperature Calibrated Accuracy ±0.5 °C (0 °C to +55 °C)
Remote Channel Temperature Sensor Type K Thermocouple (Included)
Remote Channel (Thermocouple) Temperature Range -100 °C to +80 °C (-148 °F to +176 °F)
Remote Channel (Glycol Bottle) Temperature Range -50 °C to +80 °C (-58 °F to +176 °F)
Remote Channel Temperature Resolution 0.1 °C (0.18 °F)
Remote Channel Temperature Calibrated Accuracy ±0.5 °C

Item
Description
Availability
Price

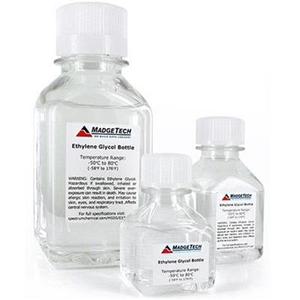

Ethylene glycol bottles, available in 30 mL, 60 mL, and 250 mL sizes, for use with the Therm-a-lert data loggers
Normally ships in 1-2 Weeks
Starting At
$105.00 CAD
Configure

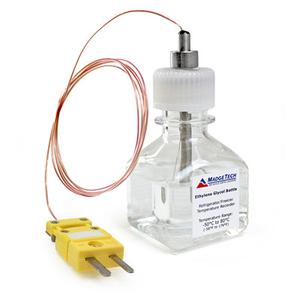

30 mL, 60 mL and 250 mL glycol bottles with thermocouple probe assembly
Normally ships in 1-2 Weeks
Starting At
$119.00 CAD
Configure

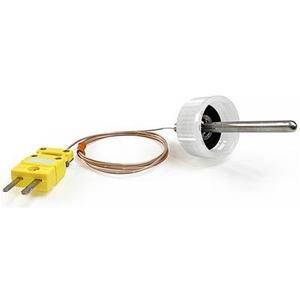

Thermocouple probe assembly for 30 mL, 60 mL and 250 mL glycol bottles
Normally ships in 1-2 Weeks
Starting At
$119.00 CAD
Configure
9.0 V, lithium battery, 1200 mAH
Normally ships in 1-2 Weeks
$22.00 CAD

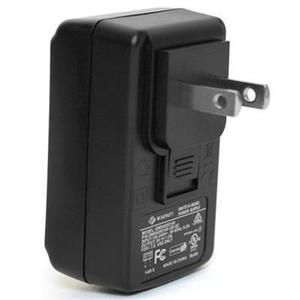

Universal multiblade USB power adapter for the IFC406, RFC1000, RFC1000-CE, VTMS, and RF2000A
Normally ships in 1-2 Weeks
$39.00 CAD
