VeriPac 355

Is a non-destructive micro leak detection system for container closure integrity and package integrity testing for a wide range of products & packaging formats

Call Today!
800-567-8686

  Request Quote

Can We Help You?

CALL US   EMAIL US   CHAT LIVE

Our product experts are here to help you find the right solution for your application!

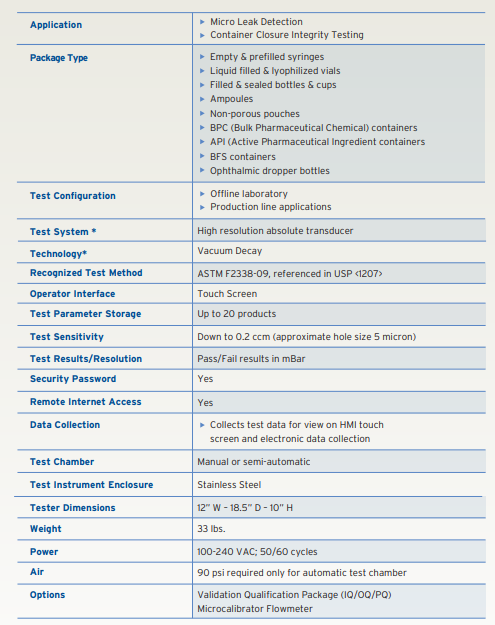

VeriPac 355 is a non-destructive micro leak detection system for container closure integrity and package integrity testing for a wide range of products and packaging formats. This system is specifically designed to test containers for gas leaks for dry products (lyophilized vials, powder filled) as well test for liquid leaks (non-protein based liquid filled vials, prefilled syringes). The VeriPac 355 can be incorporated into protocols at any point in the handling process as it is non-destructive and requires no sample preparation. With the capability to detect leak rates as low as 0.2 cc/min, depending on packaging specifications, the VeriPac 355 is the optimal non-destructive quantitative test method for many pharmaceutical and food applications.

The VeriPac 355 core technology is based on the ASTM vacuum decay leak test method (F2338-09) recognized by the FDA as a consensus standard for package integrity testing. This test method was developed using VeriPac leak test instruments.

The VeriPac 355 leak tester connects to a test chamber that is specially designed to contain the package to be tested. The package is placed inside the test chamber to which vacuum is applied. The high resolution absolute transducer technology is used to monitor the test chamber for both the level of vacuum as well as the change in vacuum over a predetermined test time and is capable of detecting gross and micro leaks. The test cycle takes only a few seconds, results are non-subjective and testing is non-destructive to both product and package. The sensitivity of a test is a function of the sensitivity of the transducer, the package design, the package test fixture and critical test parameters of time and pressure. Test systems can be designed for manual or semi-automatic operation. This inspection method is suitable for laboratory offline testing and QA/QC statistical process control.

 • Non-destructive, non-subjective, no sample preparation

• Deterministic, quantitative test method
• Defect detection down to 0.2 ccm
• High level of sensitivity, repeatability and accuracy
• Short cycle time provides operator with PASS/FAIL result
• Small footprint and modular portable design
• ASTM test method and FDA standard
