Dwyer

WTDL Wireless Temp/Humidity Data Logger

Transmission up to 400 Feet, Text/Email Alarm Updates

Starting at
$2,312.82CAD
Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Configure
Used in
WTDL Wireless Temp Humidity Data Logger 09465
WTDL Wireless Temp Humidity Data Logger 407d4

 The Series WTDL Wireless Temperature/Humidity Data Logger is perfect for applications which require real-time monitoring or areas that are not as accessible to periodically retrieve the data. The data loggers can transmit up to 500 feet indoors and up to 2000 feet outdoors. The distance can be increased by using additional receivers. Wireless data is transmitted on a 2.4 GHz frequency allowing it to be used anywhere in the world. A network of data loggers can be separated into a smaller subnet. These subnets can all be controlled by a single PC. The Series WTDL data loggers also feature a user-programmable alarm. This alarm can be configured to show an on screen alarm, send a text message (standard SMS rates apply), or an email if an alarm condition is met.

Temperature RangeWTDL-10/WTDL-20: -4 to 176°F (-20 to 80°C); WTDL-30: -328 to 500°F (-200°C TO 260°C) for probe.
Humidity RangeWTDL-20: 0 to 95% RH.
Temperature AccuracyWTDL-10/WTDL-20: 0.9°F (0.5°C) from 32 to 122°F (0 to 50°C); WTDL-30: 0.18°F (0.1°C) from -4 to 176°F (-20 to 80°C), 0.9°F (0.5°C) outside of specified range.
Humidity AccuracyWTDL-20: ±3.0% RH, ±2% typical at 77°F (25°C).
Temperature Resolution0.018°F (0.01°C).
Humidity ResolutionWTDL-20 only: 0.1% RH.
RF Carrier Frequency2.45 GHz.
BandISM band 2.405-2.48 GHz.
Maximum Power Output+0 dBm typical.
Wireless Transmission Range2000' (610 m) outdoors, line of sight; 500' (152 m) indoors.
Receiver Sensitivity-95 dBm typical.
Memory SizeWTDL-10/WTDL-30: 30,000 Readings; WTDL-20: 15,000 readings per channel, software configurable memory wrap.
AgencyApprovals
FCC ApprovalFCC ID# OA3MRF24J40MA.
Weight0.25 lb (113.4 g).
Housing MaterialABS plastic.
Battery Life2 years (approx.).

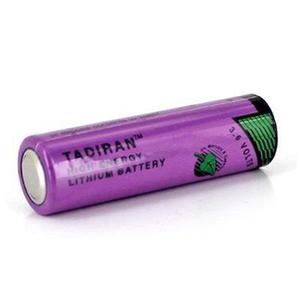

Power Requirements3.6 V TL-5104 lithium metal battery, installed functional, user-replaceable.

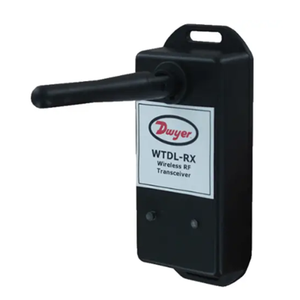

Computer InterfaceWTDL-RX.
Computer RequirementsWindows® XP (SP3), Windows Vista®, Windows® 7.
Humidity Limits0 to 95% RH.
Temperature Limits-4 to 176°F (-20 to 80°C).
Sampling Rate2 sec to 24 hrs.
Sampling MethodStop on memory full or continuous recording.
• Cold room temperature/RH monitoring
• Clean room temperature/RH monitoring
  • Thumbnail of document Data Sheet - WTDL Wireless Temp/Humidity Data Logger
    Download

    Data Sheet - WTDL Wireless Temp/Humidity Data Logger

    Download
  • Thumbnail of document Manual - WTDL Wireless Temp/Humidity Data Logger
    Download

    Manual - WTDL Wireless Temp/Humidity Data Logger

    Download
