ZKM-2 Oxygen Analyzer
In-situ zirconia oxygen analyzer for continuous measurement of combustion exhaust gases of industrial boilers & furnaces
The Fuji Electric ZKM-2 oxygen analyzer utilizes zirconium oxide sensing technology to continuously measure the oxygen concentration in stack gases of industrial boilers and furnaces. It is ideally suited for combustion management and control. Consisting of the signal processor, input/output and communications, display and system controls, the ZKM-2 requires ZFK8 sensors (and cable) to complete the system.
The Fuji Electric ZKM-2 provides a measuring range of 0 to 50 vol% O2 (in 1 vol% O2 steps from 2 to 50). The zirconium oxide sensor technology provides significant benefits over other type analyzers including excellent stability and repeatability. It allows for easy maintenance while eliminating the need for a gas sampling device due to the direct insertion design. Sensor diagnostics, recovery functions and other operation and setting functions can be performed at the converter via an easy-to-use, interactive operation panel. The ZKM-2 is available with either an IP66/NEMA 4 (model ZKMA) or IP67/NEMA 4X (model ZKMB) enclosure.
Fuji ZKM-2 oxygen analyzers are suitable as a combustion controllers for industries with high energy consumption to achieve significant savings in energy cost. The oxygen concentration control ensures complete combustion, thus reducing CO2, SOx, and NOx emissions and helping prevent global warming and air pollution.
• Direct insert design, zirconium oxide sensor
• 0 to 50 vol% O2 (in 1 vol% O2 steps from 2 to 50)
• Within ±0.5%FS repeatability & ±2%FS linearity
• 4 to 7sec response time
• For 90% (from calibration gas inlet)
• Choice of IP66 (ZKMA) or IP67 (ZKMB) enclosure
• 4 to 20mA DC or 0 to 1V DC analog output
• RS485 or HART communication options available
• Steel
• Power
• Petroleum/Petrochemicals
• Ceramics
• Paper/Pulp
• Food
• Textile industries
• Breweries
• Automobile industry
• Combustion facilities such as garbage incinerators
• Medium-to-small sized boilers
Item
Description
Availability
Price

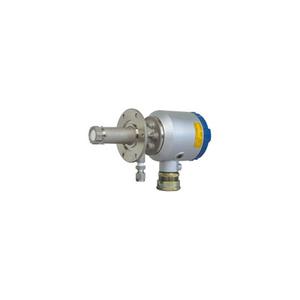

Direct insertion zirconium oxide oxygen detector for non-hazardous applications
Normally ships in 2-3 Weeks
Starting At
$2,347.00 CAD
$2,347.00 CAD
Cable for Fuji Electric Zirconia Oxygen Analyzers
Normally ships in 2-3 Weeks
Starting At
$353.00 CAD
$353.00 CAD
Replacement sensor element for Fuji Electric ZFK8 and ZFKE detectors.
Normally ships in 2-3 Weeks
Starting At
$1,968.00 CAD
$1,968.00 CAD
Creates a positive force that draws a sample through the high temperature assembly by just using shop air
Normally ships in 3-4 Weeks
Starting At
$12,815.00 CAD
$12,815.00 CAD
View All Part Numbers
