Starting at $10,839.05CAD
Configure
The Fuji Electric ZKME oxygen analyzer is for use in hazardous locations. ZKME analyzers utilize zirconium oxide sensing technology to continuously measure the oxygen concentration in combustion exhaust gases of industrial boilers and furnaces. The ZKME is ideally suited for combustion management and control. Consisting of the signal processor, input/output and communications, display and system controls, the ZKME requires ZFKE sensors (and cable) to complete the system.
The Fuji Electric ZKME provides a measuring range of 0 to 50 vol% O2 (in 1 vol% O2 steps from 2 to 50). The zirconium oxide sensor technology provides significant benefits over other type analyzers including excellent stability and repeatability. The ZKME allows for easy maintenance while eliminating the need for a gas sampling device due to the direct insertion design. Sensor diagnostics, recovery functions and other operation and setting functions can be performed at the converter via an easy-to-use, interactive operation panel. The ZKME is designed for use in hazardous locations and meets NEPSI standards EExd IIC T6 Ex II2G.
The Fuji ZKME oxygen analyzer is suitable as a combustion controller for industries with high energy consumption such as steel, power, petroleum/petrochemicals, ceramics, paper/pulp, food, textile industries, combustion facilities such as garbage incinerators, and medium-to-small sized boilers to achieve a significant energy-saving effect. The oxygen concentration control ensures complete combustion, thus reducing CO2, SOx, and NOx emissions and helping prevent global warming and air pollution.
• Measures Oxygen in noncombustible gas
• Measuring method: Zirconium oxide sensor ZFKE
• Measuring range: 0 to 50 vol% O2 (in 1 vol% O2 steps from 2 to 50)
• Repeatability: Within ±0.5%FS
• Linearity: Within ±2%FS
• Response time: Within 4 to 7 sec, for 90% (from calibration gas inlet)
• Analog output: 4 to 20mA DC or 0 to 1V DC
• 6 Contact outputs
• 3 Contact inputs
• Measured gas temperature: −10 to +600ºC
• Measured gas pressure: −3 to +3kPa (−12 to +12 inH2O)
• Field replaceable sensor element
• NEPSI certified: EExd IIC T6 Ex II2G
• Max cable length 100m (330ft)
• Optional valve and flowmeter
• Steel
• Power
• Petroleum/Petrochemicals
• Ceramics
• Paper/Pulp
• Food
• Textile industries
• Breweries
• Automobile industry
• Combustion facilities such as garbage incinerators
• Medium-to-small sized boilers
Accessories
![ZFK Sensor Element 12381]()

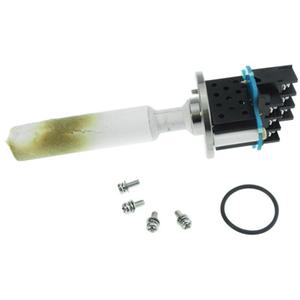

Fuji ElectricZFK Sensor Element
Replacement sensor element for Fuji Electric ZFK8 and ZFKE detectors.
Starting at$1,968.12 CADNormally ships in 2-3 weeks![ZRZ Cable 12382]()
Fuji ElectricZRZ Cable
Cable for Fuji Electric Zirconia Oxygen Analyzers
Starting at$352.57 CADNormally ships in 2-3 weeks![ZFKE Oxygen Detector 12421]()

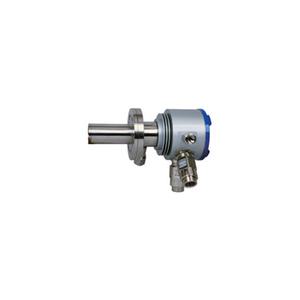

Fuji ElectricZFKE Oxygen Detector
Direct insertion zirconium oxide oxygen detector for hazardous locations
Starting at$8,250.33 CADNormally ships in 2-3 weeks
