eL-520 Refrigerant Gas Leak Detector

Quickly and accurately isolate leaks in air conditioning and refrigeration systems

$246.00 CAD
Normally ships in 1-2 Weeks

  Request Quote

Can We Help You?


Our product experts are here to help you find the right solution for your application!

The eL-520 is used to quickly and accurately isolate leaks in all commercial, residential, industrial and automotive air conditioning and refrigeration systems. It detects all HFC, CFC and HCFC refrigerants including R134A, R12, R22 as well as blends such as R404A, R407C, R408A, R 409A, R 410A, and others.Using state of the art microprocessor controlled technologies, the eL-520 is fully automatic and requires very little power to operate thus increasing the battery life. A spare sensor housed in the battery compartment also ensures no downtime when sensors are damaged or need replacing.

What’s Included

• eL-520 Refrigerant Leak Detector w/ sensor
• Sturdy Blow Molded Carrying Case
• Spare Sensor
• Batteries (2 AA Alkaline)
• Instruction Manual

• Lightweight, ergonomic design
• Simple, one button operation
• Two sensitivity modes, enabling quick and easy location of large and small leaks
• Sturdy blow-molded carrying case
• Both visual and audible leak detection signal
• Long Battery Life – 2 AA batteries provide 40 hours of operation
• Low battery indicator
• Automatic power-off to conserve battery life
• Extra sensor stored inside the battery compartment

Dimensions 7.25” x 2.25” x 1.5” (19 cm x 5.7 cm x 3.8 cm)
Weight 7 oz. (190 grams)
Batteries 2 x 1.5V ‘AA' Alkaline Batteries (3 VDC)
Battery Life 40 Hours
Sensitivity < 3g/year (0.1 oz/yr)
Sensor Lifetime approx. 30 hours
Operating Temperature 32 – 122°F (0 – 50°C)
Warm-up Time < 2 sec.
Calibration Automatic
Response Time Instantaneous
Reset Time Instantaneous
Probe Length 12” (30 cm)

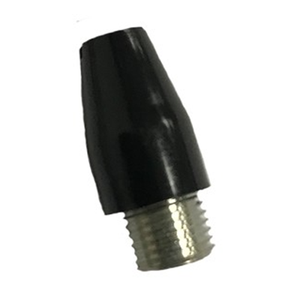

Sensor for eL-520 refrigerant leak detector
Normally ships in 2-3 Weeks
$25.00 CAD

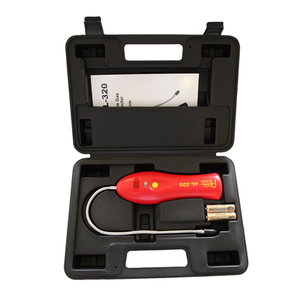

Hard case for eL320 and eL520 leak detectors
Normally ships in 2-3 Weeks
$33.00 CAD
