1586A Super-DAQ Precision Temperature Scanner

Name: 1586A Super-DAQ Precision Temperature Scanner
SKU: placeholder-1586a-super-daq-precision-temperature-scanner
Price: 6783.00 CAD
Availability: InStock

Measures and logs thermocouples, PRTs, thermistors, DC voltage, DC current and resistance

Starting at

$6,783.00CAD

Have questions? We're here to help!

Call

Configure

Used in

1586 A Super DAQ Precision Temperature Scanner 01323

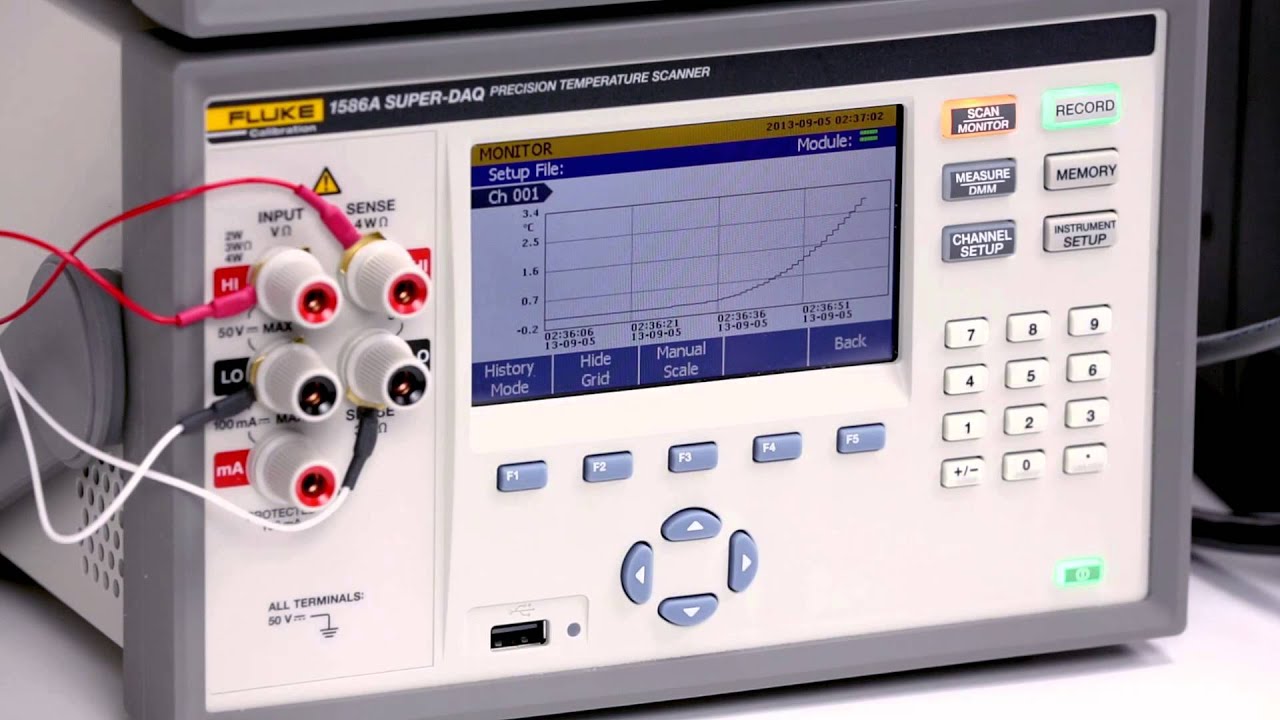

The 1586A Super‑DAQ is the most accurate and flexible temperature data acquisition system on the market. It scans and records temperature, DCvoltage, DC current, and resistance for up to 40 input channels and scan speeds as fast as 10 channels per second. The Super-DAQ can be configured for use as a multi-channel data logger in the factory or as a precision reference thermometer for benchtop sensor calibration in the lab.

The 1586A Super-DAQ collects time-stamped precision temperature and electrical measurements for data analysis by technicians, engineers, and quality control personnel to verify process control, analyze interactive systems, ensure conformance to quality standards, or to correlate related events for R&D or troubleshooting. Measurement data and statistics can be viewed in tabular format for all active channels. With the graphing feature, up to four channels can be plotted at the same time, making it easy to quickly assess test setup and results before analyzing the data on a PC.

When configured with the DAQ-STAQ Multiplexer, the Super-DAQ has the accuracy of the best benchtop reference thermometer readouts for calibration of PRTs, RTDs, thermistors, or thermocouples. Lab efficiency can be increased when the Super-DAQ is connected to a Fluke Calibration drywell or bath and Automated Sensor Test routines are run.

The 1586 is ideal for a number of applications such as thermal mapping, temperature validation, process sensor calibration, and more. These applications are found in a various industries including pharmaceutical, biotechnology, food processing, aerospace, and automotive.

Some temperature data acquisition applications require compliance to government and standards agency requirements. TQSoft and TQAero thermal validation software help engineers, technicians and lab managers to meet the key guidelines for temperature data collection. These software solutions provide a complete qualification, reporting, documentation, and audit trail management system.

• Measure thermocouples, PRTs, thermistors, DC voltage, DC current, and resistance
• Best-in-class temperature measurement accuracy
• Input channels: Up to 40 isolated universal inputs
• Flexible configuration: Internal High-Capacity Module and/or DAQ-STAQ Multiplexer
• Selectable scan speed: Up to 10 channels per second
• Four modes of operation: Scan, Monitor, Measure, Digital Multimeter (DMM)
• Real-time color trending: Chart up to four channels simultaneously
• 6 1/2 digit display resolution for dc voltage, dc current, and resistance
• Current reversal minimizes thermoelectric effects, improving PRT/RTD measurement accuracy
• Automated sensor calibration: Control Fluke Calibration temperature sources such as dry-wells or micro-baths for automated calibration routines
• Data storage: Records up to 20 MB of data and setup files to internal non-volatile memory or to an external USB drive. Transfer data to a PC using the USB drive or LAN connection and view data in Microsoft® Excel
• Data security: Administrator and user profiles for protecting settings and ensuring test traceability
• Mx + B scaling and channel offset zero function
• Alarms: Two independent, user-defined alarms for each channel indicate when an upper or lower range has been exceeded
• Supported by TQSoft and TQAero thermal validation software for FDA 21 CFR Part 11 and AMS 2750 compliant data collection

Mains Voltage	100 V Setting: 90 V - 110 V 120 V Setting: 108 V - 132 V 220 V Setting: 198 V - 242 V 240 V Setting: 216 V - 264 V
Frequency	47 Hz - 440 Hz
Power Consumption	36 VA peak (24 W average)
Environment Temperature	Operating: 0°C - 50°C Full accuracy: 18°C - 28°C Storage: −20°C - 70°C Warm-up: 1 h to full accuracy specifications
Relative Humidity (Non-Condensing)	Operating: 0°C - 30°C, <80 %; 30°C - 50°C, <50 % Storage: −20°C - 70°C, <95 %
Altitude	Operating: 2,000 m Storage: 12,000 m
Vibration and Shock	Complies with MIL-PRF-28800F Class 3
Channel Capacity	Total analog channels: 45 Voltage/resistance channels: 41 Current channels: 5 Digital I/O: 8 bits Totalizer: 1 Alarm outputs: 6 Trigger input: 1
Channel Input Connector Types	1586A Channel 001 (front panel): gold pins, bare wire, spade lugs, banana plugs DAQ-STAQ Multiplexer: gold pins, bare wire, mini spade lugs, mini banana plugs, mini-jack thermocouple High-Capacity Module: gold pins, bare wire
Input Protection	50 V all functions, terminals and ranges
Math Channels	Number of channels: 20 Operations: sum, difference, multiply, divide, polynomial, power, square root, reciprocal, exponential, logarithm, absolute value, average, maximum, minimum
Triggers	Interval, external (trigger input), alarm, remote (bus), manual, automated test
Memory	Scan data RAM: 75,000 readings with timestamp Data/Setup flash memory: 20 MB
USB Host Port	Connector type: Type A Function: Memory File system: FAT32 Memory capacity: 32 GB
USB Device Port	Connector type: Type B Class: Instrument Function: Control and data transfer Command protocol: SCPI
LAN	Function: Control and data transfer Network protocols: Ethernet 10/100, TCP/IP Command protocol: SCPI
RS-232	Connector: D-sub 9 pin (DE-9) Baud rates: 1200, 2400, 4800, 9600, 19200, 38400 Function: Temperature source control output
Dimensions (H x W x D)	150 mm x 245 mm x 385 mm
Weight:	6 kg (typical configuration)
Shipping Weight	9.5 kg (typical configuration)
Conformity	CE, CSA, IEC 61010 3rd ed.

General Specifications
Mains Voltage	100 V Setting: 90 V to 110 V 120 V Setting: 108 V to 132 V 220 V Setting: 198 V to 242 V 240 V Setting: 216 V to 264 V
Frequency	47 Hz to 440 Hz
Power Consumption	36 VA peak (24 W average)
Environment Temperature	Operating: 0 °C to 50 °C Full accuracy: 18 °C to 28 °C Storage: −20 °C to 70 °C Warm-up: 1 hour to full accuracy specifications
Relative Humidity (non-condensing)	Operating: 0 °C to 30 °C <80 %; 30 °C to 50 °C <50 % Storage: −20 °C to 70 °C <95 %
Altitude	Operating: 2,000 m Storage: 12,000 m
Vibration and Shock	Complies with MIL-PRF-28800F Class 3
Channel Capacity	Total analog channels: 45 Voltage/resistance channels: 41 Current channels: 5 Digital I/O: 8 bits Totalizer: 1 Alarm outputs: 6 Trigger input: 1
Input Protection	50 V all functions, terminals and ranges
Math Channels	Number of channels: 20 Operations: sum, difference, multiply, divide, polynomial, power, square root, reciprocal, exponential, logarithm, absolute value, average, maximum, minimum
Triggers	interval, external (trigger input), alarm, remote (bus), manual, automated test
Memory	Scan data RAM: 75,000 readings with timestamp Data/Setup flash memory: 20 MB
USB Host Port	Connector type: Type A Function: Memory File system: FAT32 Memory capacity: 32 GB
USB Device Port	Connector type: Type B Class: Instrument Function: Control and data transfer Command protocol: SCPI
LAN	Function: Control and data transfer Network protocols: Ethernet 10/100, TCP/IP Command protocol: SCPI
RS-232	Connector: D-sub 9 pin (DE-9) Baud rates: 1200, 2400, 4800, 9600, 19200, 38400 Function: Temperature source control output
