Dwyer

16C 1/16 DIN Temperature Controller

Accurate temperature measurement and control in a 1/16 DIN package

Starting at
$211.88CAD
Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Configure
Used in
Also found in
16 C 116 DIN Temperature Controller 07387

The compact Series 16C Temperature Controller offers accurate temperature measurement and control in a 1/16 DIN package. Designed for direct or reverse acting (cooling or heating) control, the Series 16C can be programmed for simple ON/OFF or more complex PID control functions. PID control is supported with manual or auto-tuning. Select relay, voltage or current output for control methods.


The Series 16C accepts a variety of thermocouple and RTD inputs. Process value and setpoint value are displayed simultaneously on the large dual LED. Auto-tuning, engineering units (°F or °C), and alarm status is also indicated on the faceplate. Two alarm outputs are included on the unit with 12 preprogrammed alarm functions.
• Universal input accepts RTD or thermocouple sensors
• On/Off, PID, or manual output control
• RS-485 standard on all models
Front Panel Rating:IP56.
Agency Approvals:CE, RoHS, cUL, UL.
Weight:4 oz (114 g).
Communication:RS-485 Modbus® ASCII communication protocol.
Control Output Ratings:Relay: SPST, 5 A @ 250 VAC resistive; Voltage Pulse: 14 V, 10% to -20% (max 40 mA); Current: 4 to 20 mA.
Memory Backup:Nonvolatile memory.
Operating Temperature:32 to 122°F (0 to 50°C).
Power Consumption:5 VA max.
Supply Voltage:100 to 240 VAC, 50/60 Hz.
Accuracy:±0.25% span, ±1 least significant digit.
Display:Two 4-digit, 7 segment .25" H (6.35 mm) LED's. PV: red; SV: green.
InputsThermocouple & RTD (see Catalog page).
• Oven, boiler, or chiller control
• Hot plates/melt pots
• Food service equipment
• Environmental chambers
• Packaging equipment
  • Thumbnail of document Data Sheet - 16C 1/16 DIN Temperature Controller
    Download

    Data Sheet - 16C 1/16 DIN Temperature Controller

    Download

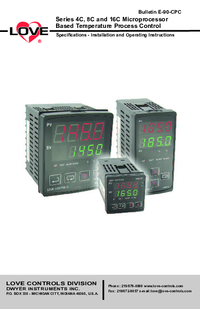

  • Thumbnail of document Manual - 16C 1/16 DIN Temperature Controller
    Download

    Manual - 16C 1/16 DIN Temperature Controller

    Download
