Dwyer

32DZ - Temperature/Process Controller

New standard in 1/32 DIN power, flexibility, and value

Starting at
$1,048.65CAD
Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Configure
Used in
32 DZ Temperature Process Controller 07446

 The Model 32DZ Temperature/Process Controls set a new standard in 1/32 DIN power, flexibility, and value. Love Controls is proud to be the creator of the world’s first dual zone control in the 1/32 DIN size. Ease of use is assured from the creators of the world’s first dual display 1/32 DIN temperature/process control. The 32DZ offers five thermocouple type inputs. Each zone offers a single set point with mechanical relay. Standard features include independent Fuzzy Logic, Self-Tune, and Peak/Valley indication for each zone. Process protection is provided by open sensor protection, shorted sensor protection, input rate of change protection, and loop break protection. Options for the 32DZ include RS-485 Serial Communication. Designed and built in the USA, the 32DZ offers the highest levels of features, function, and quality available today.

• Large Dual Display
• Independent Self-Tune for Each Zone
• Independent Fuzzy Logic for Each Zone
• Loop Break Protection
• Peak/Valley Indication
• Illuminated Keypad
• Four Password Protected Security Levels
Front Panel Rating:NEMA 4X (IP66).
Weight:4 oz (114 g).
Control Output Ratings:Relay: SPST, 3A @ 240 VAC resistive, 1.5A @ 240 VAC inductive, Pilot Duty Rating: 250 VA, 2A @ 120 VAC or 1A @ 240 VAC; Proportional Current: 4 to 20 mA; SSR: 0.75 A at 240 VAC resistive at 77°F (25°C), de-rates to 1.0 A at 130°F (55°C), minimum load of 100 mA; Voltage: Switched 5 VDC.
Memory Backup:Nonvolative memory. No batteries required.
Operating Temperature:14 to 131°F (-10 to 55°C).
Power Consumption:5 VA maximum.
Supply Voltage:100 to 240 VAC, nominal, +10 - 15%, 50 to 400 Hz single phase; 132 to 240 VDC, nominal, +10 - 20%.
Accuracy:±0.25% of span, ±1 least significant digit.
Display:Two 4-digit, 7 segment, 0.25" high (6.35 mm) LEDs.
Inputs:Thermocouple, Type J, K, E, L, and N.

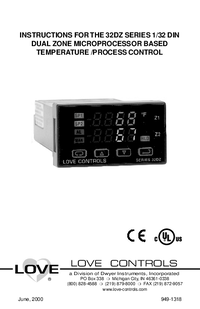

  • Thumbnail of document Manual - 32DZ - Temperature/Process Controller
    Download

    Manual - 32DZ - Temperature/Process Controller

    Download
