473B Vane Thermo-Anemometer Test Instrument

Name: 473B Vane Thermo-Anemometer Test Instrument
SKU: placeholder-473b-vane-thermo-anemometer-test-instrument
Price: 1138.25 CAD
Availability: InStock

Measure air velocity or air volume, temperature, and humidity simultaneously and easily

Buy now!

$1,138.25CAD

Have questions? We're here to help!

Call

QTY

Used in

473 B Vane Thermo Anemometer Test Instrument 05098

The MODEL 473B 100 mm Vane Thermo-Anemometer Test Instrument is a versatile unit that quickly and easily measures air velocity or volumetric air flow, as well as air temperature and humidity in imperial or metric units. A stainless steel 100 mm vane probe is included, which has a comfortable hand grip. The extruded aluminum housing fully protects electronics, yet is lightweight and comfortable to hold.

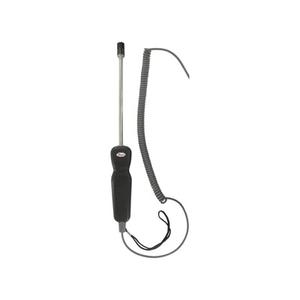

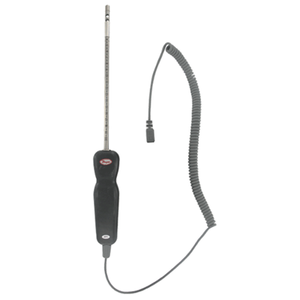

• Compatible with Dwyer AP1 thermo-anemometer and RP1 thermo-hygrometer wired probes (sold separately)

• Measure air velocity, volumetric air flow, temperature, and humidity with the included 100 mm vane probe

• Visible in any condition due to high contrast and backlit LCD display

• Able to store up to 99 readings for later evaluation

Service	Dry, clean air
Temperature Limits	Process: -20°F - 212°F (-29°C - 100°C); Ambient: 5°F - 125°F (-15°C - 51°C)
Display	4.5 digit backlit display
Range	Air Velocity: 40 fpm - 5000 fpm (0.2 m/s - 25 m/s); Volumetric Air Flow: 19,999 in selected flow units; Temperature: -20°F - 212°F (-29°C - 100°C); Relative Humidity: 0% - 100% RH
Accuracy	Air Velocity: ± 1.5% of reading ± 20 fpm (± 0.1 m/s, 0.25 m/s - 10 m/s; ± 1.5% of reading ± 40 fpm (± 0.2 m/s, 10 m/s -20 m/s]; ± 1.5% of reading ± 60 fpm (± 0.3 m/s, 20 m/s - 25 m/s; Temperature: ± 0.54°F @ 77°F (± 0.3°C @ 25°C); Relative Humidity: ± 2% @ 77°F (25°C), 10% - 90% RH; ± 4%, 0% - 10%, 90% - 100% RH
Response Time	Air Velocity: 1 s; Volumetric Air Flow: 1 s; Temperature: 1.5 s; Relative Humidity: 1.5 s
Probe Length	8 in (203 mm) insertion
Cable Length	28 in (71 cm) retracted; 6 ft (183 cm) extended
Vane Material	Anodized aluminum
Power Requirements	9 V alkaline battery, installed non-functional, user replaceable
Weight	18.4 oz (521 g)
Agency Approvals	CE
