4B 1/4 DIN Temperature/Process Controller
Dual output control, RS-485 communication, auto-tuning
The Series 4B 1/4 DIN Temperature/Process Controller is designed to accept thermocouple, RTD, current or voltage input and provide dual outputs for control. Available outputs include relay/relay, voltage pulse/relay, current/relay, or linear voltage/relay.
The units can be programmed for ON/OFF, PID, auto-tuning, or manual tuning control methods. The PID control is supported by 64 ramp/soak actions. The Series 4B also includes two additional alarm outputs. The second relay output can be reconfigured as a third alarm output. The alarm type can be selected from 13 different preprogrammed alarm functions. The controller features dual LED displays for local indication of process and setpoint values.
• Universal input accepts process transmitters, RTD’s or thermocouple signals
• On/off, PID, or manual output control
• RS-485 standard on all models
• Stage control program for up to 64 ramp/soak actions
• Control temperature for boilers, damper control based on temperature or pressure
• Hot plates/melt pots
• Packaging equipment
• Environmental chambers
• Medical equipment
• Food service equipment
![MN 1 Mini Node RS 485 to USB Converter 05140]()
DwyerMN-1 Mini-Node RS-485 to USB Converter
Mini-node RS-485 to USB converter
Buy now!$208.64 CADNormally ships in 2-3 weeks![A TC K25 FB K type 25 on spool 08655]()

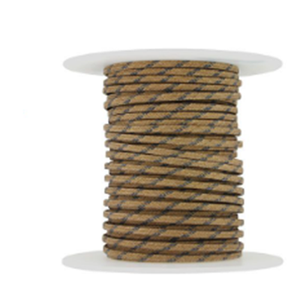

DwyerA-TC-K25-FB K type, 25' on spool
K type, 25' on spool, fiber glass insulation, 450°C, yellow outer sheath, 24 AWG, 0.20 SQMM
Buy now!$69.53 CADNormally ships in 3-4 weeks![A TC K25 FEP K type 25 on spool 08656]()
DwyerA-TC-K25-FEP K type, 25' on spool
K type, 25' on spool, FEP insulation, 200°C, yellow outer sheath, 24 AWG, 0.20 SQMM
Buy now!$64.18 CADNormally ships in 3-4 weeks![A TC K50 FB K type 50 on spool 08657]()

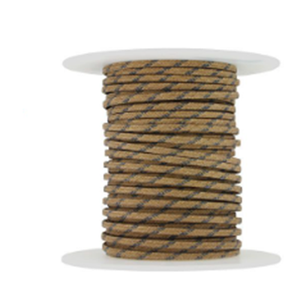

DwyerA-TC-K50-FB K type, 50' on spool
K type, 50' on spool, fiber glass insulation, 450°C, yellow outer sheath, 24 AWG, 0.20 SQMM
Buy now!$108.72 CADNormally ships in 3-4 weeks![A TC K100 FB K type 100 on spool 08659]()
DwyerA-TC-K100-FB K type, 100' on spool
K type, 100' on spool, fiber glass insulation, 450°C, yellow outer sheath, 24 AWG, 0.20 SQMM
Buy now!$182.75 CADNormally ships in 3-4 weeks![A TC K100 FEB K type 100 on spool 08660]()
DwyerA-TC-K100-FEB K type, 100' on spool
K type, 100' on spool, FEP insulation, 200°C, yellow outer sheath, 24 AWG, 0.20 SQMM
Buy now!$161.16 CADNormally ships in 3-4 weeks![A 277 Precision resistor 250 ohm 08661]()
DwyerA-277 Precision resistor, 250 ohm
Precision resistor, 250 ohm
Buy now!$25.41 CADNormally ships in 3-4 weeks![SCD SW Configuration software 08662]()

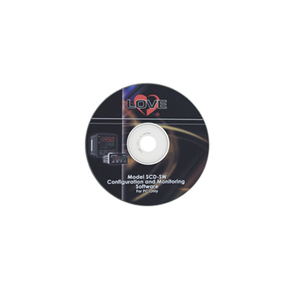

DwyerSCD-SW Configuration software
Configuration software
Buy now!$66.38 CADNormally ships in 3-4 weeks![A TC J25 FB J type 08649]()

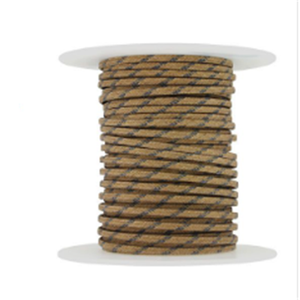

DwyerA-TC-J25-FB J type
J type, 25' on spool, fiber glass insulation, 450°C, black outer sheath, 24 AWG, 0.20 SQMM
Buy now!$52.87 CADNormally ships in 3-4 weeks![A TC J25 FEP 08650]()

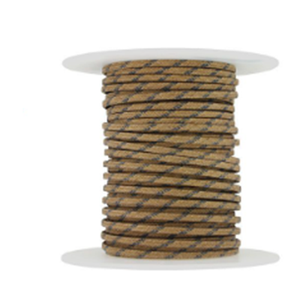

DwyerA-TC-J25-FEP
J type, 25' on spool, FEP insulation, 200°C, black outer sheath, 24 AWG, 0.20 SQMM
Buy now!$43.61 CADNormally ships in 3-4 weeks
DwyerA-TC-J50-FB J-type
J type, 25' on spool, FEP insulation, 200°C, black outer sheath, 24 AWG, 0.20 SQMM
Buy now!$73.44 CADNormally ships in 3-4 weeks![A TC J50 FEP J type 50 on spool 08652]()

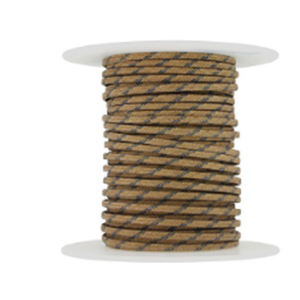

DwyerA-TC-J50-FEP J type, 50' on spool,
J type, 50' on spool, FEP insulation, 200°C, black outer sheath, 24 AWG, 0.20 SQMM
Buy now!$57.80 CADNormally ships in 3-4 weeks![A TC J100 FB J type 100 on spool 08653]()
DwyerA-TC-J100-FB J type, 100' on spool
J type, 100' on spool, fiber glass insulation, 450°C, black outer sheath, 24 AWG, 0.20 SQMM
Buy now!$113.14 CADNormally ships in 3-4 weeks![A TC J100 FEP J type 100 08654]()
DwyerA-TC-J100-FEP J type, 100'
J type, 100' on spool, FEP insulation, 200°C, black outer sheath, 24 AWG, 0.20 SQMM
Buy now!$85.26 CADNormally ships in 3-4 weeks![A 901 Weatherproof enclosure 08402]()
DwyerA-901 Weatherproof enclosure
Weatherproof enclosure, type 4X, clear plastic window with rear panel for mounting the control inside the enclosure
Buy now!$732.15 CADNormally ships in 3-4 weeks![A 600 RC Snubber 08403]()

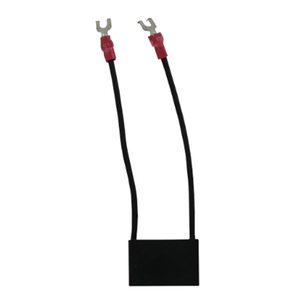

DwyerA-600 R/C Snubber
R/C snubber (recommended for inductive loads like a solenoid or contactor)
Buy now!$52.36 CADNormally ships in 3-4 weeks
