626 / 628 Industrial Pressure Transmitter

Name: 626 / 628 Industrial Pressure Transmitter
SKU: placeholder-626-628-industrial-pressure-transmitter
Price: 224.10 CAD
Availability: InStock

In Stock

Highly precise 0.25% full scale accuracy piezo-resistive sensor contained in a compact, rugged housing

Buy now!

$224.10CAD

Have questions? We're here to help!

Call

QTY

Used in

626 628 Industrial Pressure Transmitter 02388

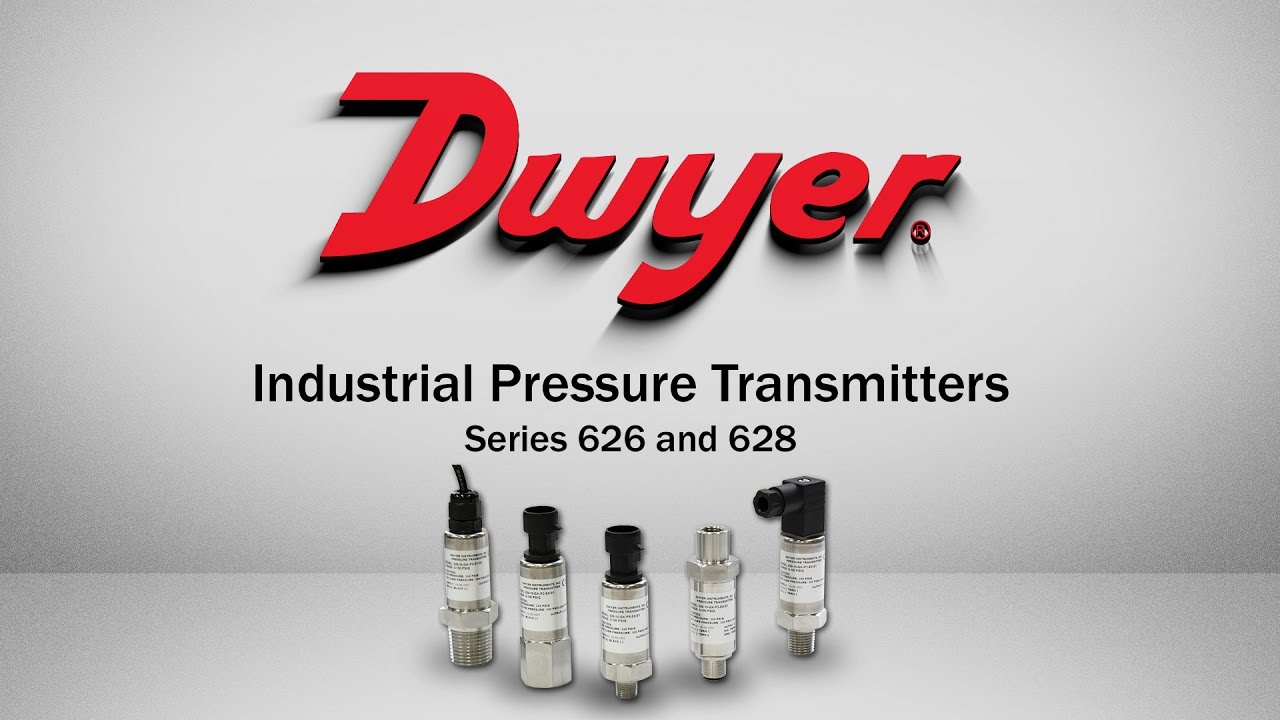

The SERIES 626 Pressure Transmitters possess a highly precise 0.25% full scale accuracy piezo-resistive sensor contained in a compact, rugged, NEMA 4X (IP66) stainless steel general purpose housing or cast aluminum conduit housing.

The SERIES 628 Pressure Transmitters are ideal for OEMs with 1% full scale accuracy sensors. The corrosion resistant 316L stainless steel wetted parts allow the Series 626 and 628 transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals. The Series 626 and 628 are available in absolute and pressure ranges with a variety of optional outputs, process connections and electrical terminations to allow you to select the right transmitter for your application.

Note: The standard conduit housing (-CH) is being phased out, see the conduit box housing (-CB) for the replacement model.

• Robust 316 SS oil filled sensor provides shock and vibration resistance insuring stability in controlling pressure for process applications
• NEMA 4X rated enclosure provides protection in harsh environments permitting outdoor monitoring or in areas where dust and particulate matter exists
• A wide range of models and connections that can meet pressure measurement specifications from low to very high

Service	Compatible gases and liquids
Wetted Materials	Type 316L SS
Accuracy	626: 0.25% FS; 626: 0.20% RSS; 628: 1.0% FS; 628: 0.5% RSS; 626 Absolute Ranges: 0.5% FS; 626 absolute ranges: 0.30% RSS. (Includes linearity, hysteresis, and repeatability.)
Temperature Limit	0°F - 200°F (-18°C - 93°C)
Compensated Temperature Range	0°F - 175°F (-18°C - 79°C)
Thermal Effect	± 0.02% FS/°F (includes zero and span)
Pressure Limits	See Data Sheet
Power Requirements	10 VDC - 30 VDC (for 4 - 20 mA, 0 to 5, 1 to 5, 1 to 6 VDC outputs); 13 VDC - 30 VDC (for 0 to 10, 2 to 10 VDC outputs); 5 VDC ± 0.5 VDC (for 0.5 to 4.5 VDC ratio-metric output); 10 VDC - 35 VDC (for 4 - 20 mA with -CB option); 13 VDC - 35 VDC or isolated 16 VAC - 33 VAC (for selectable output with -CB option)
Output Signal	4 - 20 mA, 0 - 5 VDC,1 - 5 VDC, 0 - 10 VDC, or 0.5 - 4.5 VDC, or selectable 0 - 5, 1 - 5, 0 - 10, 2 - 10 VDC for -CB option
Response Time	300 ms
Loop Resistance	0 Ω - 1000 Ω max. R max = 50 (Vps-10) Ω (4 - 20 mA output); 0 Ω - 1250 Ω max. R max = 50 (Vps-10) Ω (4 - 20 mA output with -CB option); 5 kΩ (0 - 5, 1 - 5, 1 - 6, 0 - 10, 2 - 10, 0.5 - 4.5 VDC output)
Stability	1.0% FS/year (typical)
Current Consumption	38 mA maximum (for 4 - 20 mA output); 10 mA maximum (for 0 - 5, 1 - 5, 1 - 6, 0 - 10, 2 - 10, 0.5 - 4.5 VDC output); 140 mA maximum (for all 626/628/629-CH with optional LED)
Electrical Connections	Conduit Housing (-CH): terminal block; 1/2 in female NPT conduit. General Purpose Housing (-GH): cable or DIN EN175801-803-C
Process Connection	1/4 in male or female NPT and BSPT
Enclosure Rating	NEMA 4X (IP66)
Mounting Orientation	Mount in any position
Weight	10 oz (283 g)
Agency Approvals	CE
