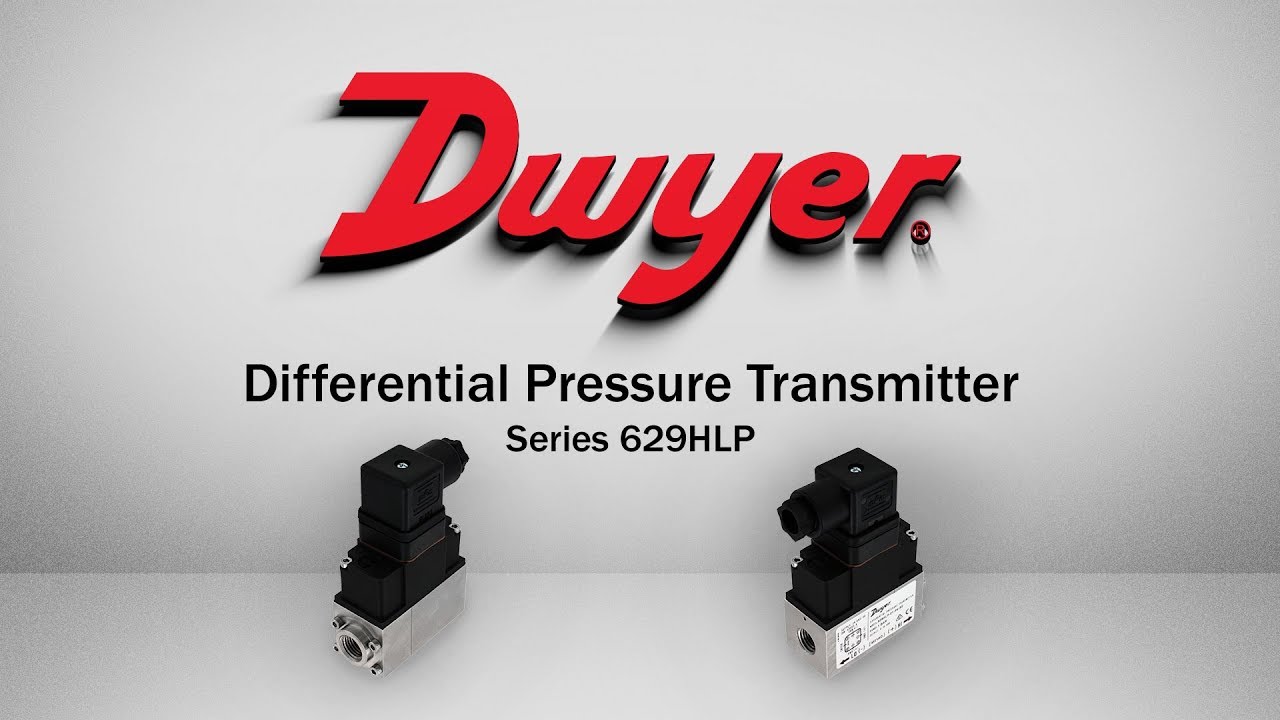

629HLP Differential Pressure Transmitter

Name: 629HLP Differential Pressure Transmitter
SKU: placeholder-629hlp-differential-pressure-transmitter
Price: 733.50 CAD
Availability: InStock

Suitable for measuring over-pressure, under-pressure, and differential pressure in compatible gases and liquids with 1% accuracy

Starting at

$733.50CAD

Have questions? We're here to help!

Call

Configure

Used in

629 HLP Differential Pressure Transmitter 08549

629 HLP Differential Pressure Transmitter 0a9e6

629 HLP Differential Pressure Transmitter 34bfb

629 HLP Differential Pressure Transmitter 53d6f

629 HLP Differential Pressure Transmitter cf563

The Series 629HLP Differential Pressure Transmitters are suitable for measuring over-pressure, under-pressure, and differential pressure in compatible gases and liquids with 1% accuracy. The 629HLP is suitable for all measuring tasks in commercial, industrial or sanitary applications. Its single sensor design allows it to measure small increment pressure changes, and converts them to a linear analog output signal from 4 to 20 mA or 0 to 10 VDC.

• Rugged, versatile, high accuracy device

• For liquid or gas systems requiring precise measurements

• Provide excellent response and reliability

• Suitable for static and dynamic measurements

• Converts pressure changes into 4 to 20 mA or 0 to 10 VDC output

• Compact, lightweight, capable to be installed in any arrangement making installation very simple

• Capable to handle up to 360 psi (25 BAR)

Service	Compatible gases or liquids.
Wetted Materials	304 SS, EPDM, silicone grease, alumina ceramic; optional 3-way valve: brass, copper, nylon, HNBR, FKM, NBR.
Housing Material	ABS.
Enclosure Rating	IP65.
Accuracy	±1% from -5 to 60°C (23 to 140°F).
Stability	±1% FS/year.
Temperature Limits:	Ambient: -10 to 60°C (14 to 122°F); Process: -10 to 80°C (14 to 176°F).
Relative Humidity	10% to 90% non-condensing.
Installation Position	Not position sensitive.
Over Pressure	5 bars for 0 to 1 bar and 0 to 2.5 bar ranges, 12 bars for 0 to 4 bar and 0 to 6 bar ranges; 70 psi for 0 to 15 psi and 0 to 30 psi ranges, 174 psi for 0 to 60 psi and 0 to 90 psi ranges.
Burst Pressure	8 bars for 0 to 1 bar and 0 to 2.5 bar ranges,18 bars for 0 to 4 bar and 0 to 6 bar ranges; 115 psi for 0 to 15 psi and 0 to 30 psi ranges, 260 psi for 0 to 60 and 0 to 90 psi ranges.
Static Pressure Limits	25 bar (360 psi).
Output Signal	4 to 20 mA, 0 to 10 VDC.
Approvals	CE.
Weight	1 lb 4 oz (567 g).
Process Connections	Standard: 1/4" female NPT, 1/4" female BSPT; with 3-way valve option: 1/8" female NPT, 1/8" female BSPT.
Electrical Connections	Form A DIN 43650.
Power Consumption	Vout = 13 mA max, Iout = 24 mA max.
Max Loop Resistance	(Supply Voltage – 8 V) / 0.02 for 4 to 20mA output.
Rated Supply Voltage	0 to 10 VDC Output: 12 to 36 VDC or 12 to 32 VAC (@ Max load of 2 kΩ) 4 to 20mA output: 8 to 36 VDC.
Response Time	50 ms.
