Dwyer

670 Fume Hood Monitor

Fume Hood Monitor continuously senses air flow through the face of the fume hood, ensuring safe levels of fresh air are exhausting

Buy now!
$1,772.02CAD
Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Used in
670 Fume Hood Monitor 07300

 The MODEL 670 Fume Hood Monitor continuously senses air flow through the face of the fume hood, ensuring safe levels of fresh air are exhausting. The 670 provides a highly accurate hot wire sensor to detect very low flows common on fume hoods. The Model 670 comes with everything required to quickly install the unit including a mounting bracket, 24" of tubing for connecting to the inside of the hood wall and a 120 Volt AC power adapter.

• Flexible surface or flush mounting
• LED safe and alarm status indicators
• Audible alarm
• Sash alarm input
• Night set-back input
Service:Fume hood face velocity air flow.
Alarm Range:30-400 FPM (0.15-2.0 m/s).
Alarm Indication:Red LED & audible alarm.
Low Air Velocity Alarm Delay:Fixed 5 secs.
Visual LED Display:Red: Alarm; Green: Normal.
Horn Silence:Yes, temporary and permanent.
Accuracy:Face velocity ±10%.
Temperature Limits:Operating temperature: 55 to 86°F (13 to 30°C). Storage temperature: -40 to 150°F (-40 to 65°C).
Agency Approval:CE.
Weight:5.0 oz (141 g).
Mounting:Semi flush, flush or surface mounted when using included bracket.
Sash High Indication:Using a two wire micro switch or 3 wire proximity switch input, rated for 24 VDC usage.
Relay Input for Night Setback:2 wire rated for 24 VDC usage.
Relay Output Low Air Flow Alarm:5 A @ 250 VAC.
Power Requirement:15 VDC 500 mA; 120 VAC, 60 Hz power transformer included.

 • Fume hood ventilation monitoring

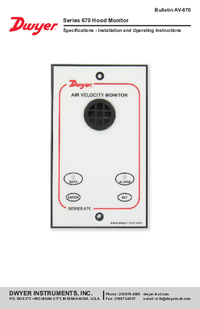

  • Thumbnail of document Manual - 670 Fume Hood Monitor
    Download

    Manual - 670 Fume Hood Monitor

    Download
  • Thumbnail of document Data Sheet - 670 Fume Hood Monitor
    Download

    Data Sheet - 670 Fume Hood Monitor

    Download
