Fluke

709H Precision Loop Calibrator

Provides resolution of 1 µA on mA ranges and 1 mV on voltage ranges, accuracy at 0.01% reading , 24 V DC loop power with mA measure mode (-25% to 125%) and communicates with and tests HART smart instruments

Buy now!
$2,665.59CAD
Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Used in
709 H Precision Loop Calibrator 06820

The Fluke 709H mA loop calibrator is designed to save time and produce high-quality results. It includes HART communication and supports a select set of the HART universal and common practice commands. This makes the 709H unique as both an affordable, compact loop calibrator and powerful HART communication tool that offers:

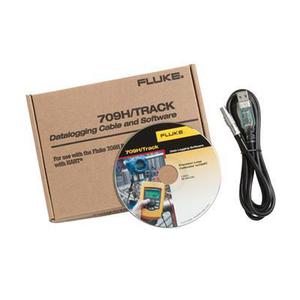

• Fast transfer of calibration data:The optional 709H/Track software/cable can document the parameters of all the HART transmitters in your plant, in either (.csv) or (.txt) format
• Data logging or recording data on a particular transmitter for troubleshooting: The data log tool offers a selectable capture interval from 1 to 60 seconds and a logging capacity of 9800 records or 99 individual sessions. Each data sample contains the 709H measurement, all four process variables, and the standard status conditions.
In the communicator mode the user can read basic device information, perform diagnostic tests, and trim the calibration on most HART-enabled transmitters. In the past, this could only be done with a dedicated communicator, a high-end multifunction calibrator, or a laptop computer with HART modem. The Fluke 709H will allow virtually any technician to service and support HART devices.

And it's easy to use. The Fluke 709H is built around a user-friendly interface with a Quick-Set rotary encoder knob. This reduces the time it takes to measure or source voltage or current, and power up a loop. The protective holster easily fits into a technician's hand and the large backlit display is easy to read, even in dark, cramped worked areas.

• mA precision loop calibrator that communicates with and tests HART smart instruments
• Features best-in-class accuracy at 0.01% reading
• Provides intuitive user interface with Quick-Set knob for fast setup
• Includes built in selectable 250 Ω resistor for HART communication
• Features 24 V DC loop power with mA measure mode (-25% to 125%)


FunctionsmA source, mA simulate, mA read, mA read/loop power, and volts read
RangesmA (0 to 24 mA) and Volts (0 to 30 V DC)
Resolution1 µA on mA ranges and 1 mV on voltage range
Accuracy0.01% ± 2 counts, all ranges (@23° ± 5°C)
Operating Temperature Range-10°C to 55°C (14°F to 131°F)
Humidity Range10 to 95% non-condensing
Stability 20 ppm of F.S. /°C from -10°C to 18°C and 28°C to 55°C
Display128 x 64 pixels, LCD Graphic w/backlight, .34 high digits
Power6 AAA alkaline
Battery Life40 hours typical
Loop Compliance Voltage24 V DC @ 20mA
Over-Voltage Protection240 V AC
Overload Current Protection28 mA DC
EMCEN61326 Annex A (Portable Instruments)
Dimensions (L x W x D)15 x 9 x 3 cm (6 x 3.6 x 1.3 in)
Weight0.3 kg (9.5 oz)
Included AccessoriesNIST traceable calibration certificate with data, batteries, test leads, and manual
WarrantyThree year
