Fluke

789 ProcessMeter

Ultimate troubleshooting tool that combines the functionality of a loop calibrator w/ the power of a digital multimeter

Starting at
$2,566.19CAD
Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Configure
Used in
Also found in
789 Process Meter 01083
Fluke 789 ProcessMeter™ doubles your troubleshooting power
The Fluke 789 ProcessMeter is the ultimate troubleshooting tool for electricians and instrumentation professionals. It combines the functionality of a full-featured loop calibrator with the power of a CAT III 1000 V, CAT IV 600 V safety rated digital multimeter, and the wireless capabilities of Fluke Connect connectivity with optional IR3000FC module. The 789 has a large, dual display with two levels of backlighting and externally accessible fuse and batteries for easy replacement. And its built-in, selectable 250-ohm HART® resistor eliminates the need to carry a separate resistor.

The 789 also has a built-in 24-Volt loop supply, which reduces the need to carry a separate power supply when doing offline transmitter testing. You can also add the wireless data logging capabilities of the Fluke Connect™ mobile app to log data wirelessly to your smart phone and review it from a remote location.

*Requires Fluke IR3000FC module (not included). Not all models are available in all countries. Check with your local Fluke representative.

Do a lot more while carrying a lot less
The 789 provides all standard DMM capabilities including frequency measurement to 20 kHz, Min/Max/Average/Hold/Relative modes, and diode test and continuity beeper. Combine that with the ability to troubleshoot every part of the loop.

Measure, source, simulate 4-20 mA signals, measure resistance, measure power, provide power to the loop and provide 250-ohm resistance to the loop. The 789 includes SpanCheck; 0% and 100% buttons to toggle between 4 and 20 mA sourcing, while the display can simultaneously show mA and % of scale readings for faster troubleshooting. It also delivers 1200-ohm drive capability on mA source.

Accuracy
This ProcessMeter offers manual step, 100%, 25%, Coarse, Fine, plus auto step and auto ramp. It also delivers 0.1% DC voltage accuracy and 0.05% DC current accuracy.
• Compact digital multimeter and mA loop calibrator solution
• Full-featured mA loop calibrator with built-in 24v Loop Power
• Quickly and easily troubleshoot every part of a control loop
• Large, bright dual-measurement display

Specifications

Current Measurement

Range

0 - 1 A AC or DC

Resolution

1 mA

Accuracy

0.2% + 2 LSD (DC)

Range

0 mA -30 mA

Resolution

0.001 mA

Accuracy

0.05% + 2 lSD

Current Sourcing

Range

0-20 mA or 4 - 20 mA

Resolution

0.05% of span

Drive capability

24 V compliance or 1200 Ω @ 20 mA

Frequency

To 19.999 kHz, 0.005% + 1 LSD

Continuity

Beeps for resistance < 100 Ω

Voltage Measurement

  • Thumbnail of document Manual - 789 ProcessMeter
    Download

    Manual - 789 ProcessMeter

    Download
  • Thumbnail of document Data Sheet - 789 ProcessMeter
    Download

    Data Sheet - 789 ProcessMeter

    Download

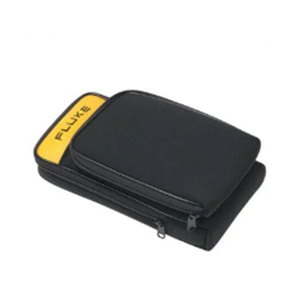

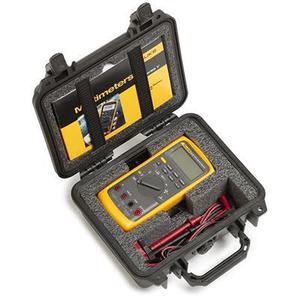

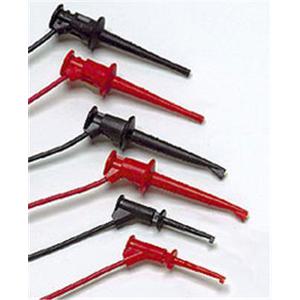

Accessories
