9011 High-Accuracy Dual-Well Calibrator

Widest temperature range available in a single dry-well

This product is no longer available. Contact us at 800-567-8686 for alternative solutions.

Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
9011 High Accuracy Dual Well Calibrator 03039
9011 2
9011 Inserts
The 9011 features two independently controlled temperature wells, which make calibrating RTDs and thermocouples faster than ever. While readings are being taken at one temperature, the other well can be ramping up or down to the next point. Checking the zero and span points of temperature transmitters is a breeze. The cold block can even be used as a zero-point reference for a thermocouple making measurements in the hot block.

The 9011 is a high-accuracy unit that is capable of laboratory as well as field calibrations. Stabilities to ±0.02 °C are possible, and display accuracy is better than ±0.25 °C. Using multi-hole interchangeable inserts, you can calibrate more probes at the same time. With a single RS-232 port for both wells, you can automate your calibration work and be even more efficient. Add on Fluke Calibration's 9938 MET/TEMP II software and totally automate your calibrations of RTDs, thermocouples, and thermistors.

• Combined range from –30°C - 670°C, one unit – two blocks
• Two independent temperature controllers (hot and cold side)
• Stability to +/- 0.02°C
• Multi-hole wells for calibrating up to eight probes simultaneously

RangeHot Block: 50°C - 670°C (122°F - 1238°F)
Cold Block: -30°C - 140°C (-22°F - 284°F)
AccuracyHot Block:
+/- 0.2°C at 50°C
+/- 0.4°C at 400°C
+/- 0.65°C at 600°C

Cold Block:
+/- 0.25°C (insert wells)
+/- 0.65°C (fixed wells)
StabilityHot Block:
+/- 0.02°C at 100°C
+/- 0.06°C at 600°C

Cold Block:
+/- 0.02°C at -30°C
+/- 0.04°C at 140°C
UniformityHot Block:
+/- 0.2°C (+/- 0.05°C typical)

Cold Block:
+/- 0.05°C (insert wells)
+/- 0.25°C (fixed wells)
Well DepthHot Block: 152 mm (6 in)
Cold Block: 124 mm (4.875 in)
Heating Time to Max.Hot Block: 30 min
Cold Block: 15 min
Cooling TimesHot Block: 120 min from 660°C to 100 °C
Cold Block: 30 min from 140°C to -30°C

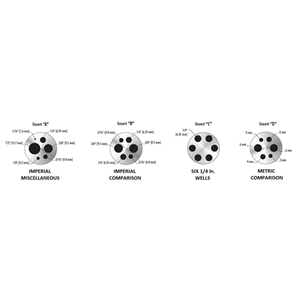

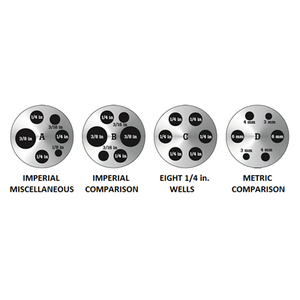

Well InsertsHot Block: 1 interchangeable well accommodates multi-hole insert
Cold Block: 1 interchangeable well accommodates multi-hole insert, plus four outer wells, 1/4", 3/16", 3/16", and 1/8"
Computer InterfaceRS-232 interface included with Model 9930 Interface-it control software
Power115 VAC (+/- 10%), 8.8 A or 230 VAC (+/- 10%), 4.4 A, switchable, 50/60 Hz, 1150 W
Size (H x W x D)292 mm x 394 mm x 267 mm (11.5 in x 15.5 in x 10.5 in)
Weight16.4 kg (36 lb)
NIST-Traceable Certificate (8 points)Hot Block: Data at 50°C, 100°C, 200°C, 300°C,
400°C, 500°C, 600°C, and 660°C
Cold Block: Data at -30°C, 0°C, 25°C, 50°C, 75°C,
100°C, 125°C, and 140°C
