Buy now! $600.90CAD
Dwyer

9671 Multifunction Vane Thermo-Anemometer

Measures air velocity, air volume, temperatue, humidity, and BTU (built-in data logging)

Buy now!
$600.90CAD
Have questions? We're here to help!
Have questions? We're here to help!

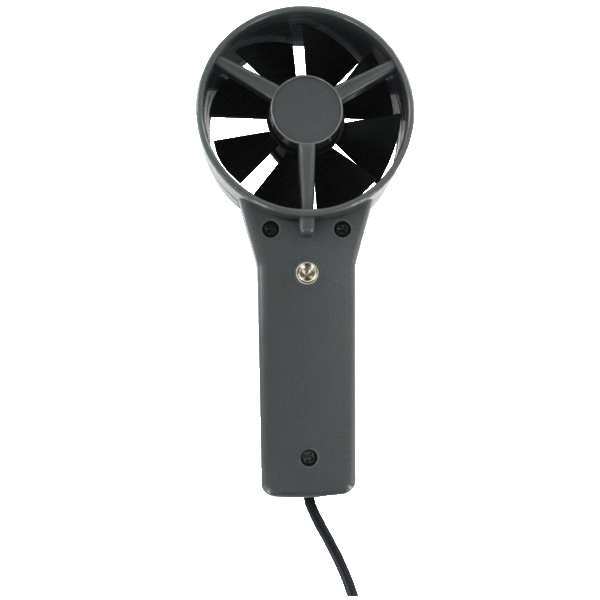

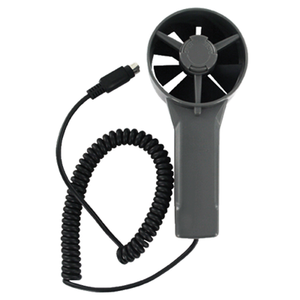

Measure air velocity, air volume, temperature, humidity, and BTU with the Model 9671 Multifunction Anemometer. The large 1.8 in (45 mm) display allows users to easily view readings. User-selectable wind speed units include ft/min, m/s, knots, mph and km/hr. In addition to these functions, the 9671 is capable of measuring relative humidity, wet bulb temperature, dew point and BTU capacity. A built-in sensor records ambient temperature in °F or °C. Model 9671 features include data hold, along with the ability to record minimum, maximum and average readings on a single point. Additional features include an RS-232 interface setting that allows the unit to download data, as well as upload up to 99 measurements through pre-edited PC files. The 9671 also has a detachable probe for easy replacement, if necessary, or to attach a miniature vane probe. Each unit includes hard carrying case, batteries, software CD, cable and instruction manual.

• User friendly interface
• RS232 cable and software enable to link with PC to download & upload
• Backlight function
• Tripod mountable for long time use
• Power off time selectable
• Big dot matrix LCD
• Powered by four (4) AAA batteries or 9 V adaptor

AIR VELOCITY
Range118 ft/min - 6299 ft/min (0.6 m/s - 32 m/s)
Accuracy± 5% of reading or last significant digit (whichever is greater)
Resolution0.1 ft/min (0.1 m/s)
Response Time1 s
TEMPERATURE
Range-4°F - 140°F (-20°C - 60°C)
Accuracy± 1°F (± 0.6°C)
Resolution0.1°F/°C
Response Time60 s
RELATIVE HUMIDITY
Range0% - 100%
Accuracy± 3% @ 25°C from 10 to 90% RH.
Outside this range: ± 5%
Resolution0.10%
Response Time60 s
AIR VOLUME
Range0 to 99999 (CFM or m3/s)
Accuracy± 5% of reading or last significant digit (whichever is greater)
Resolution0.1 (0 to 9999.9) or 1 (10000 to 99999)
Response Time1 s
WET BULB
Range-7.6°F - 158°F (-22°C - 70°C)
Resolution0.1°F/°C
METER
Display1 in x 1.8 in (26 mm x 45 mm)
Serial Communications9600 bps, 8 data bits, no parity
Power RequirementsFour (4) AAA alkaline batteries, included, user replaceable
Battery Life100 hrs
Vane Diameter3 in (77 mm)
Weight6 oz (170 g)
Agency ApprovalsCE
  • Thumbnail of document Data Sheet - 9671 Multifunction Vane Thermo-Anemometer
    Download

    Data Sheet - 9671 Multifunction Vane Thermo-Anemometer

    Download
  • Thumbnail of document Manual - 9671 Multifunction Vane Thermo-Anemometer
    Download

    Manual - 9671 Multifunction Vane Thermo-Anemometer

    Download
