A/0.1CP-INW-4-PB Thermistor Immersion Probe

High Accuracy 10,000 Ohm Thermistor (Type II), Immersion, No Well, 4", Plastic Enclosure

This product is no longer available. Contact us at 800-567-8686 for alternative solutions.

Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Used in
A0 1 CP INW 4 PB Thermistor Immersion Probe 13413

 The ACI Thermistor Immersion sensor is a single point temperature sensor that is designed for use with electronic controllers in commercial heating and cooling building management systems. They feature a ¼” diameter stainless steel probe and are manufactured using ACI’s proven double encapsulation process to eliminate the effects of moisture and to increase the response times using high quality, thermally conductive epoxy. The immersion sensors include a standard ½” NPS Male process thread.


• Thermistor Immersion Probes for commercial HVAC and Building Management Systems
• Plastic enclosure
• 1/2" NPS thread
• Chilled or Hot Water Systems, Boilers, Pumps, Compressors, Chillers
Conductor Material: Silver Plated Copper
Lead Wire Insulation | Wire Rating: Etched Teflon (PTFE) Colored Leads | Mil Spec 16878/4 Type E)
Lead Length | Conductor Size: 14” (35.6 cm) | 22 AWG (0.65mm)
Probe Diameter: 0.250" (6.35mm)
Thermowell Material | Bore Diameter: 304 Series Stainless Steel | 0.260"
Probe Diameter: 0.250" (6.35mm)
Storage Temperature Range: -40 to 85ºC (-40 to 185ºF)
Operating Temperature Range: -40 to 150ºC (-40 to 302ºF)
Power Dissipation Constant: 3 mW/ºC
A/1.8K Series: 1 mW/ºC
A/10K-E1 Series: 2 mW/ºC
Response Time (63% Step Change): 10 Seconds nominal
Sensory Accuracy+/-0.2ºC (+/-0.36ºF)
A/10K-E1 Series: +/- 0.3ºC (+/-0.54ºF)
A/1.8K Series: +/-0.5ºC @ 25ºC (77ºF) and (+/-1.0ºC) (+/-1.8ºF)
Number WiresTwo (Non-Polarity Sensitive)
Number Sensing PointsOne
Sensor CurveNon-Linear, NTC (Negative Temperature Coefficient)
Sensor TypeThermistor
Foam Pad Material | Flammability Rating: Neoprene/EPDM/SBR Polymer | UL94-HBF; FMVSS-302; MIL-R-6130C
Sensor Threads: ½” NPS (National Pipe Straight) Male Thread
Fitting Material | Flammability Rating: Polyamide 66 (High Performance Nylon 66) | UL94-HB
Thermowell Instrument Thread | Process Thread: ½” NPS (National Pipe Straight) Female Thread | ½” NPT (National Pipe Tapered) Male Thread
Probe Material: 304 Stainless Steel
Operating Humidity Range: 10 to 95% RH, non-condensing

 Chilled Water Systems, Hot Water Systems, Boilers, Pumps, Compressor, Chillers


  • Thumbnail of document Data Sheet - A/0.1CP-INW-4-PB Thermistor Immersion Probe
    Download

    Data Sheet - A/0.1CP-INW-4-PB Thermistor Immersion Probe

    Download

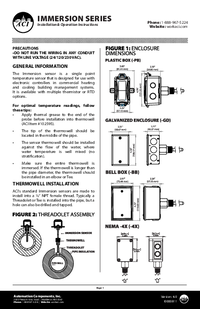

  • Thumbnail of document Manual - A/0.1CP-INW-4-PB Thermistor Immersion Probe
