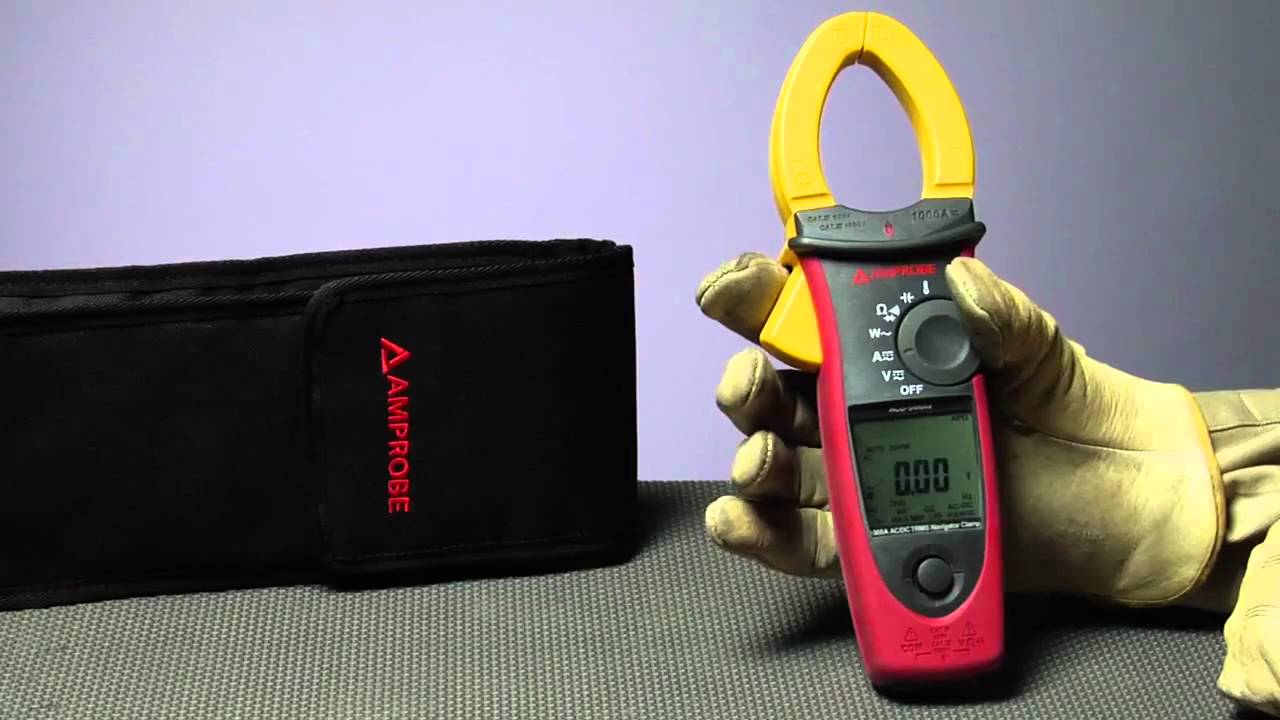

ACD-50NAV CAT IV 600A True-RMS Navigator™ Clamp Meter
Clamp-on power meter offers AC current, AC/DC voltage measurements, & wide jaws to accomodate large conductors
ACD-50NAV clamp-on power meter offers AC current measurements to 600 A, AC/DC voltage to 1000 V, and wide jaws to accommodate large conductors. This clamp-on multimeter is ideal for industrial power monitoring and verifying system conditions.
It offers a full range of diagnostics including phase sequence, power and power factor, total harmonics distortion and individual harmonics, inrush current and low pass filter.

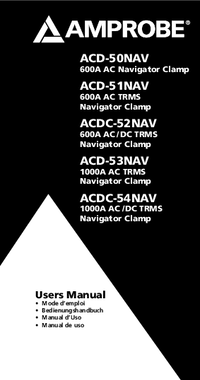

The ACD-50NAV comes with test leads, one (1) 9 V battery, user's manual, and a deluxe carrying case.
• True-RMS technology improves accuracy in noisy environments
• Measures AC/DC voltage to 1000 V, AC current to 600 A, plus resistance, frequency, capacitance, power factor, total harmonics distortion (THD) and individual harmonics from 1 to 25
• Includes inrush current measurement and phase rotation indication for 3-phase motors
• Non-contact voltage detection enhances safety
• Low pass filter allows measurement of voltage and frequency of variable frequency drives
• Continuity beeper quickly identifies shorts and opens
• Large backlit digital display with analog bar graph presents the full picture
• Min, max, and smart data hold
• Peak hold identifies spikes and transients
• In-jaw flashlight automatically lights when jaws open to illuminate dark panels and junction boxes
• Auto power off conserves battery life
• Maximum jaw opening accommodates large conductors up to 1.45 in (37 mm)
• Rubber overmold body absorbs shocks — drop proof to 4 ft (1.2 m)
• CAT IV rated
• Includes test leads, batteries (installed), user's manual, and a deluxe carrying case
