ACDC-54NAV AC/DC Navigator™ Clamp Meter with Temperature
Clamp-on power meter offers AC/DC current, & voltage measurements, temperature capabilities, & wide jaws to handle large conductors
The ACD-54NAV clamp-on power meter offers AC/DC current measurements to 1000 A, AC/DC voltage to 1000 V, temperature capabilities, and wide jaws to handle large conductors up to 1.6 in (40 mm) for high voltage industrial environments.
This clamp-on multimeter offers a full range of power quality diagnostics including power and power factor, total harmonics distortion, individual harmonics, in-rush current, phase sequence, TRMS and low pass filter for industrial power monitoring and verifying system conditions.

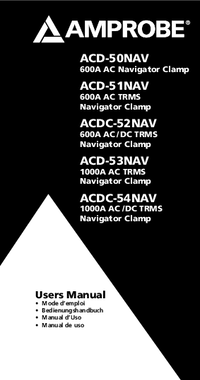

The ACD-54NAV comes with test leads, banana K-type thermocouple, one (1) 9 V alkaline battery, user's manual, and a deluxe carrying case.
• True-RMS technology improves accuracy in noisy environments
• Measures AC/DC voltage to 1000 V, AC/DC current to 1000A, plus resistance, frequency, capacitance, power and power factor, total harmonics distortion (THD) and individual harmonics from 1 to 25
• Measures temperature from -58°F - 1832°F (-50°C - 1000°C)
• Includes inrush current measurement and phase rotation indication for 3-phase motors
• Non-contact voltage detection enhances safety
• Low pass filter allows measurement of voltage and frequency of variable frequency drives
• Continuity beeper quickly identifies shorts and opens
• Large backlit digital display with analog bar graph presents the full picture
• Min, max and smart data hold
• Peak hold identifies spikes and transients
• In-jaw flashlight automatically lights when jaws open to illuminate dark panels and junction boxes
• Auto power off conserves battery life
• Maximum jaw opening accommodates large conductors up to 1.60 in (45 mm)
• Rubber overmold body absorbs shocks — drop proof to 4 ft (1.2 m)
• CAT IV-rated AC/DC current clamp meter
• Includes test leads, batteries (installed), banana k-type thermocouple, deluxe carrying case, and users manual
