ALC-110 Leakage Current Clamp

Prevent unplanned downtime by detecting leakage currents

This product is no longer available. Contact us at 800-567-8686 for alternative solutions.

Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Used in
Also found in
ALC 110 Leakage Current Clamp 07192
PD ALC 110 b
PD ALC 110 c

Prevent unplanned downtime by detecting leakage currents with the ALC-110 Leakage Current Clamp. Rated CAT III 600 V to ensure electrical safety, the ALC-110 is designed to resist external magnetic fields for highly accurate readings. Features TRMS, a mechanical jaw lock, max readings and hold functions, highest resolution of 0.001 mA (measure up to 60 A), broad frequency range (15 Hz to 1 kHz), selectable filters (low pass, appliance, no filter), selectable limits (0.25 mA, 0.5 mA, 3.5 mA, 10 mA, 12 mA) and a battery-saving design.

Weight 0.9 lb (410 g) with batteries installed
Dimensions (H x W x L) 8.7 x 3.5 x 1.8 in (221 x 89 x 48 mm)
EMC compliance IEC/EN 61326-1, IEC/EN 61326-2-2
Safety compliance IEC/EN 61010-1, IEC/EN 61010-2-030, IEC/EN 61010-2-032, IEC/EN 61557-13
Battery life 60 hours typical
Battery 2 x batteries 1.5 V IEC LR03 AAA
Drop proof 4 ft (1.2 m)
Vibration requirement acc. IEC 61557-1 clause 4.10
Temperature coefficient 0.1 x (specified accuracy) / °C (<21 °C, <25 °C)
Pollution degree 2
Storage temperature -4 °F to 140 °F (-20 °C to 60 °C)
Operating altitude ≤ 2000 m
Operating temperature 32 °F to 86 °F (0 °C to 30 °C), ≤ 80% RH
86 °F to 104 °F (30 °C to 40 °C), ≤ 75% RH
104 °F to 122 °F (40 °C to 50 °C), ≤ 45% RH


Over range indication OL or -OL
Range Auto ranging
Display Digital: 6000 counts, updates 5/sec
Built according IEC/EN 61010-2-032 Yes
Complies with IEC/EN 61557-13 Yes
Data hold Yes
Max hold Yes
Auto ranging Yes
Auto power off Idle 20 minutes
Overload protection 60 A
Backlight function Yes
Jaw locking Yes
Jaw opening 1.2 in (30 mm) max.
Limit judgement 0.25 mA, 0.5 mA, 3.5 mA, 10 mA, 12 mA
Low pass filter 50 – 60 Hz, for appliance measuring acc. EN61557-16 amendment A, no filter
AC frequency 15 Hz to 1 kHz
True-rms Yes
Measurement category CAT III 600 V
Low frequency magnetic fields ≤ 30 A/m, operating class 2 @ IN : 3.500 mA to 600.0 mA / 40 Hz to 1 kHz
  • Thumbnail of document Data Sheet - ALC-110 Leakage Current Clamp
    Download

    Data Sheet - ALC-110 Leakage Current Clamp

    Download

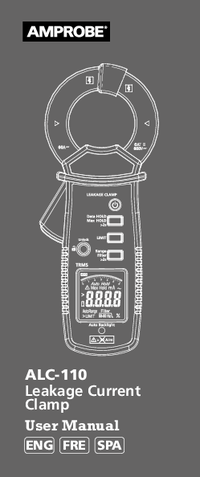

  • Thumbnail of document Manual - ALC-110 Leakage Current Clamp
