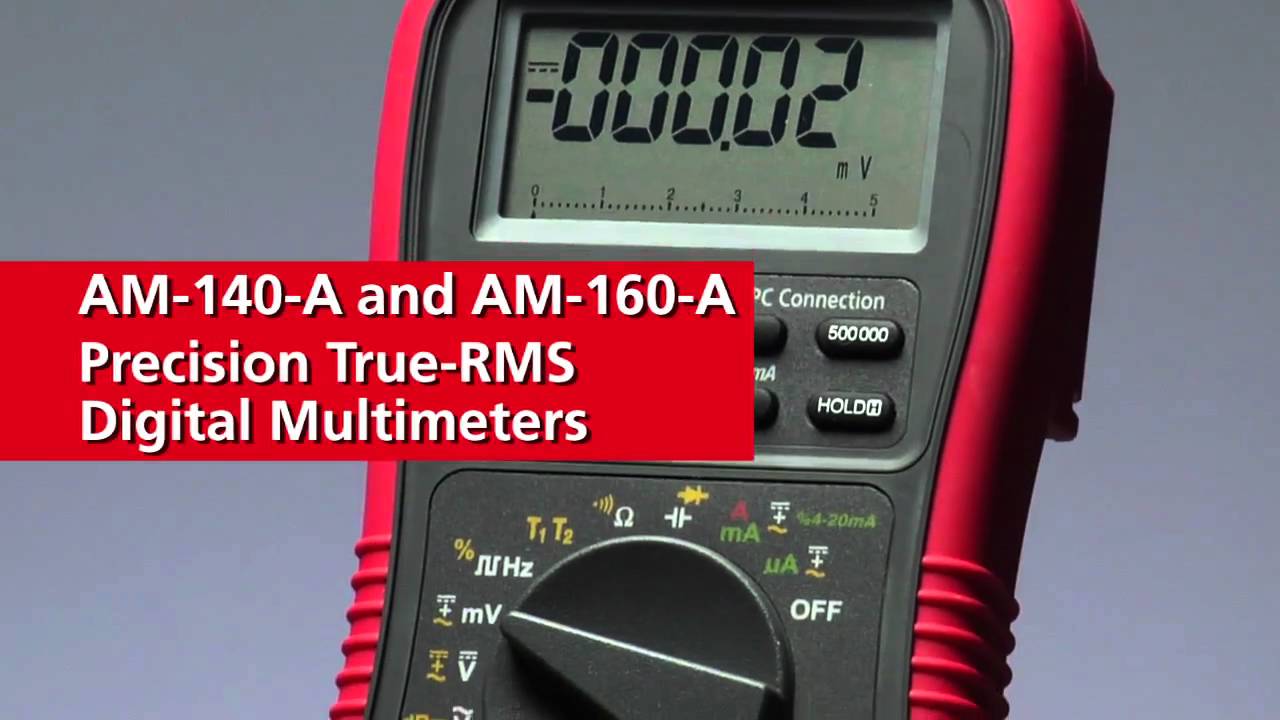

AM-140-A True-RMS Precision Digital Multimeter with PC Connection

Name: AM-140-A True-RMS Precision Digital Multimeter with PC Connection
SKU: placeholder-am-140-a-true-rms-precision-digital-multimeter-with-pc-connection
Price: 426.06 CAD
Availability: InStock

Commercial grade digital multimeter offers more features and better accuracy at a great price

This product is no longer available. Contact us at 800-567-8686 for alternative solutions.

Have questions? We're here to help!

Call

Used in

AM 140 A True RMS Precision Digital Multimeter with PC Connection 03797

These True-RMS commercial grade digital multimeters offer more features, better accuracy at a great price. True-rms, accuracy to 0.02%, frequency, capacitance, duty cycle, analog bar graph, PC interface and large backlit displays are just a handful of features that are available on the AM-140-A.

The AM-140-A multimeter comes with test leads, one (1) 9 V battery (installed), and a user's manual.

• True-RMS
• Measurements: voltage up to 1000 V AC/DC, resistance, AC/DC current, frequency, capacitance, duty cycle
• Optical isolated PC interface capability
• Crest (peak hold), Max, Min, Max-Min, recording
• Auto and manual ranging
• Intelligent auto power off
• Data hold
• Relative zero mode
• Audible and visual warning against improper plug-in
• DC loop current 4 - 20 mA
• dBm reading with 20 selectable impedance values
• Backlight display
• Large, easy to read large LCD display
• High speed analog bar graph
• Diode test
• 4 - 20 mA DC loop current
• Audible continuity

	AM-140-A	AM-160-A	BEST ACCURACY
AC Voltage	500.00 mV , 5.0000 V, 50.000 V, 500.00 V, 1000.0 V		± (0.08% RDG + 60 LSD) @ 45 Hz - 300 Hz
DC Voltage	500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V		± (0.03% RDG + 2 LSD) @ 0 V - 50 V
Resistance	500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 500.00 kΩ, 5.0000 MΩ, 50.000 MΩ		± (0.10% RDG + 6 LSD)
AC/DC Current	500.00 µA , 5000.0 µA; 50.000 mA, 500.00 mA; 5.0000 A, 10.000 A		± (1.0% RDG + 40 LSD) @ 50 Hz / 60 Hz
Frequency	5.0000 Hz - 200.000 kHz		± (0.002 % RDG + 4 LSD)
Capacitance	50.00 nF, 500.0 nF, 5.000 µF, 50.00 µF, 500.0 µF, 9999 µF		± (2.0% RDG + 3 LSD) @ 50 nF - 50 µF ranges
Temperature	–	Dual thermocouple -58°F - 1832°F (-50°C - 1000°C)	± (0.3% RDG + 2°F), ± (0.3% RDG + 1°C)
Duty Cycle	0.1 % - 99.99 %	–	± (3 LSD / kHz + 3 LSD)
Display	4-4/5 digits 50,000 counts. Selectable stable mode 5-4/5 digits 500,000 counts for DC voltage, and 6 digits 999,999 counts for HZ
Polarity

Download
Data Sheet - AM-140-A True-RMS Precision Digital Multimeter with PC Connection
Download
Download
Manual - AM-140-A True-RMS Precision Digital Multimeter with PC Connection
Download
